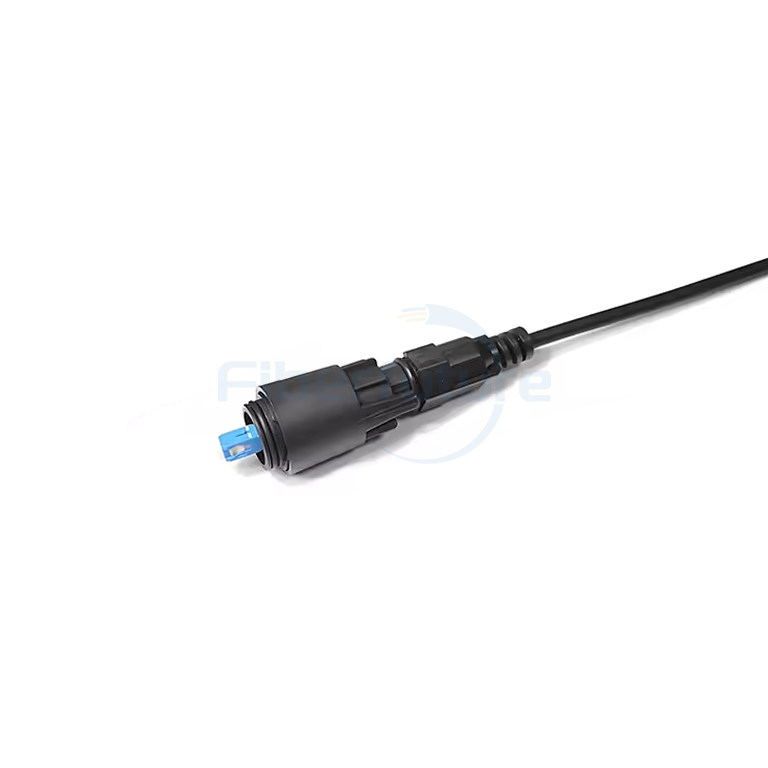

Fullaxs IPFX SC Fiber Optical Patch Cord Outdoor Waterproof

FIBERFUTURE Fullaxs IPFX SC fiber optical patch cord is a robust, waterproof outdoor cable designed for reliable data transmission. It features SC connectors and is IP68-rated for protection against water, dust, and corrosion. The cable is suitable for multi-purpose outdoor applications, including connections between distribution boxes and Remote Radio Heads (RRHs), and deployments in cell tower Remote Radio Head applications.

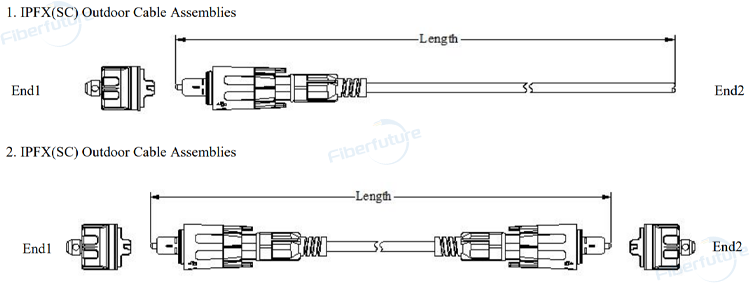

Dimension Diagram

Fullaxs IPFX SC Fiber Optical Patch Cord Outdoor Waterproof

Applications

  1. Multi-purpose outdoor use
  2. Distribution box to RRH connection
  3. Cell tower deployment

Features

  1. Factory-terminated (tested) or field-installable versions available.
  2. Minimal insertion and added loss for optimal signal integrity.
  3. Excellent resistance to signal attenuation over distances.
  4. IP68-rated for water, dust, and corrosion resistance.
  5. Plug with free-floating capability on the Z-axis for precise alignment.
  6. Constructed from materials that are weatherproof and UV-resistant.
  7. Meets IEC 61754-20 mechanical performance standards.
  8. Complies with RoHS and REACH regulations for material safety and sustainability.
  9. 100% compatible with FullAXS Connectors and includes site technical features.

Jumper Tolerance Requirement

Overall length (L) (M) Length of tolerance (CM)
0L20 +10/-0
20L40  +15/-0
L40  +0.5%L/-0
