FTTH Mini Fiber Optic Terminal Box 4 Cores

FIBERFUTURE FTTH mini fiber optic terminal box for 4 cores is a compact solution for indoor fiber termination. It supports fusion and storage, fits SC or LC adapters, and ensures signal integrity with protected bend radius, suitable for desk or wall mounting.

Send Email

Features

Insertion loss: ≤0.3 dB; Return loss: ≥50 dB.
Tensile strength: > 50 N.
Operating pressure: 70 kPa to 106 kPa.
Temperature range: -40°C to +75°C.
Relative humidity: ≤85% at +30°C.
Protection rating: IP65.
Offers 2 SC single and 2 LC duplex adapter interfaces for FTTH applications.
Internal storage for redundant fiber, simplifying operations and maintenance.
Supports both fiber fusion and mechanical connections, ideal for multi-story and high-rise installations, easy to install.

Structure

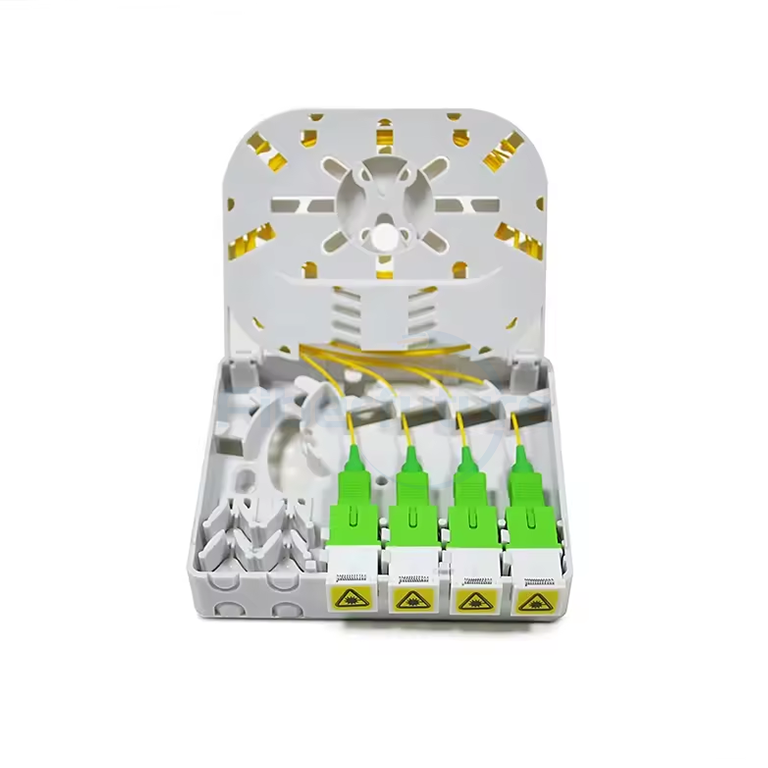

Front Cover & Internal Structure: The front cover and internal fiber optic panel secure components and provide interfaces for connectors and adapters, with protection at the bottom of the box.
Cable Management: The fiber optic panel includes cable fixation and protection mechanisms.
Materials: The panel cover and base are constructed from high-quality ABS (flame-retardant polycarbonate) plastic.
Dust Protection: Adapter sockets feature dust-proof mechanisms when no fibers are inserted.
Storage & Bending Radius: A plate and raised platform at the bottom facilitate cable storage, meeting bending radius requirements and accommodating minimal excess fiber.

Specifications

Design: Resemble high-voltage or low-voltage panels in appearance, with a white color.
Dimensions: 100mm x 83mm x 32mm.
Quality: Well-formed with smooth surfaces and uniform color. Metal surfaces have strong adhesion for coatings, while plastic parts are free of defects like burrs, bubbles, cracks, voids, warping, and impurities.

Configuration List

Product Name	Specifications	Quantity
Box	FTTH	1 PC
Optical fiber heat shrinkable casing	Ф1.5×40mm	4 PCS
Nylon cable tie	3×100mm	4 PCS
Expansion bolt	M8×40mm	2 EST
LC duplex cover adapter	Green	2 PCS
SC duplex cover adapter	Green	2 PCS
SC/APC Pigtail SX 0.9mm G657A1 PVC White	1M	2 PCS
LC/APC Pigtail SX 0.9mm G657A1 PVC White	1M	2 PCS
