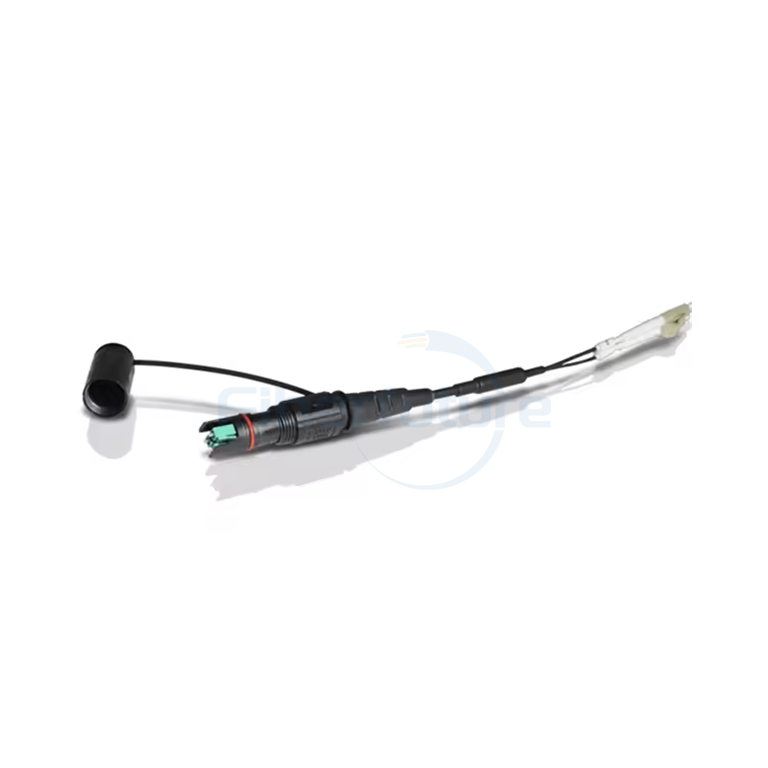

FIBERFUTURE FTTA outdoor IP68 waterproof mini IP LC fiber optic patch cord features a compact design with a robust IP68-rated housing for reliable outdoor connectivity. It supports single mode and multimode fibers, offers low insertion loss, and is compatible with standard LC adaptors. Ideal for harsh environments, it ensures secure and durable fiber-optic transmission.
Versatile Outdoor Application: This product boasts a multi-purpose design, optimized for use in various outdoor environments, catering to a diverse set of operational requirements.
Specialized Connectivity Solution: It serves as the essential link between the distribution box and the Remote Radio Head (RRH), ensuring robust and reliable connections that support the seamless flow of data in telecommunication networks.
Ideal Deployment in RRH Cell Towers: Specifically tailored for deployment within Remote Radio Head (RRH) cell tower applications, this solution enhances the efficiency and scalability of network infrastructure, facilitating seamless coverage expansion and capacity upgrades.
|
Item |
Parameter |
|||
|
Single Mode |
Multimode |
|||
|
Standard |
Elite |
Standard |
Elite |
|
|
Insertion Loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
|
Return Loss |
≥50dB (PC) ≥60dB (APC) |
≥55dB (PC) ≥65dB (APC) |
≥30dB (PC) |
≥30dB (PC) |
|
Durability |
500 times a plug |
|||
|
Operation Temperature |
-40 to + 85℃ |
|||
|
Type |
Reference |
Note |
|
|
LC |
IEC 61754-20 |
Single-mode duplex |
APC: Green connectors UPC: Blue connectors |
|
Multimode duplex |
UPC: Grey connectors |
||
