FTTA Equipment ODVA MPO & MTP Outdoor Cable Assembly

FIBERFUTURE FTTA Equipment ODVA MPO & MTP outdoor cable assembly is a robust, waterproof cable designed for outdoor fiber applications. Rated IP68, it features MPO & MTP connectors and is ideal for connecting distribution boxes to Remote Radio Heads (RRHs) and cell tower deployments.

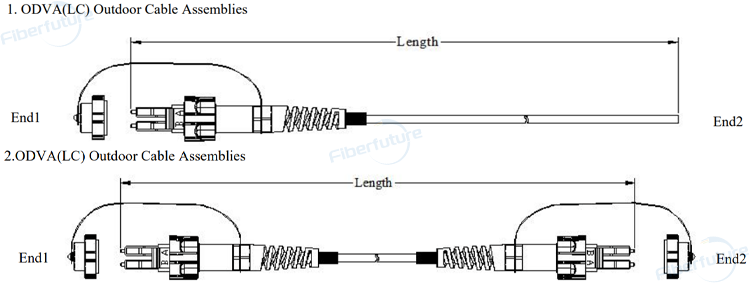

Dimension Diagram

ODVA LC Outdoor Cable Assembly IP68 Waterproof Patch Cable

Applications

  1. Suitable for various outdoor applications.
  2. For connecting distribution boxes to Remote Radio Heads (RRHs).
  3. Designed for Remote Radio Head (RRH) installations on cell towers.

Features

  1. Cost-Effective Termination: for in-house termination.
  2. Low Loss Performance: minimal insertion and added loss.
  3. Attenuation Resistance: excellent signal integrity.
  4. Environmental Protection: IP68-rated for water, dust, and corrosion resistance.
  5. All-Weather Durability: weatherproof and UV-resistant materials.
  6. Mechanical Compliance: IEC 61754-20 standards.
  7. Environmental Compliance: under RoHS and REACH regulations.

Jumper Tolerance Requirement

Overall length (L) (M) Length of tolerance (CM)
0L20 +10/-0
20L40  +15/-0
L40  +0.5%L/-0
