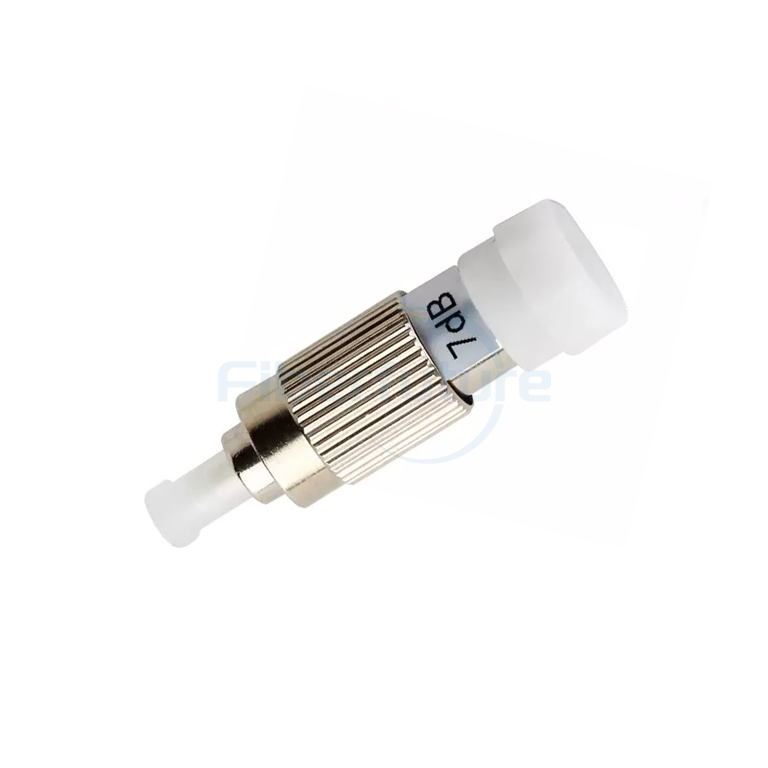

FIBERFUTURE FC Attenuator, ranging 1-30dB, is a precision device for managing optical power in fiber networks. With a threaded FC connector, it ensures stable signal levels in telecom, data centers, and CATV. Its robust design guarantees reliability in various applications, offering controlled attenuation for optimized network performance.
1. Broad Adjustment Span for Attenuation
2. Minimal Reflective Loss for Enhanced Signal Clarity
3. Reduced Polarization Dependent Loss (PDL)
4. Non-discriminatory to Polarization Variations
5. Interchangeable with Multiple Connector Styles
6. Exceptional Durability and Dependability
7. Adheres to Environmental Standards (ROHS Compliant)
1. Fiber Optic Communication Systems
2. Cable Television Networks
3. Calibration & Testing Equipment Integration
| Parameters | Min. | Typical | Max | Unit |
| Operating Wavelength Range | 1310 ± 40 | nm | ||
| 1550 ± 40 | nm | |||
| Return Loss | PC Type | 50 | dB | |
| APC Type | 65 | dB | ||
| Operating Temperature | -40 | / | 85 | °C |
| Tolerance | DB≤10dB=±0.5 & DB≥10dB=±10% | |||
| Storage Temperature | -40 | / | 85 | °C |
