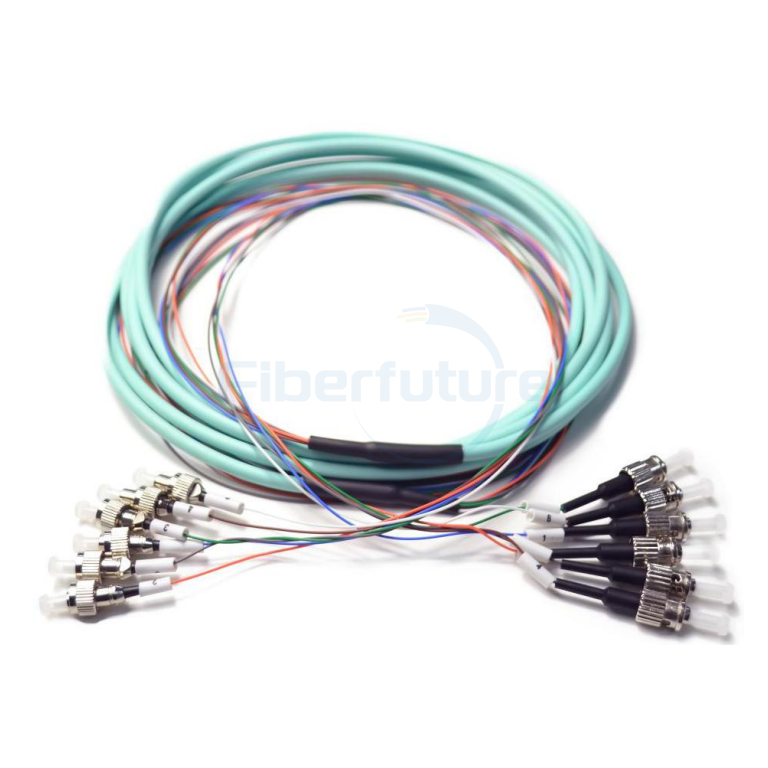

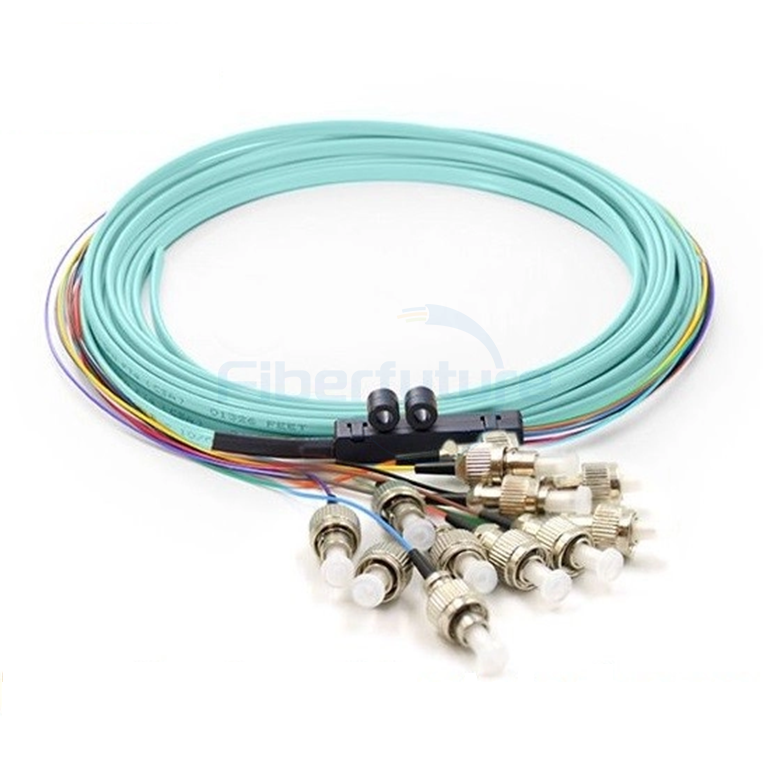

FC ST Pre Terminated Fiber Cable with LSZH Jacket

FIBERFUTURE FC-ST pre-terminated cables have an FC connector on one end and an ST connector on the other end. They are pre-installed and tested in the factory to ensure plug-and-play operation. They are suitable for rapid deployment of fiber optic networks and for efficient data center and LAN connections.

Send Email

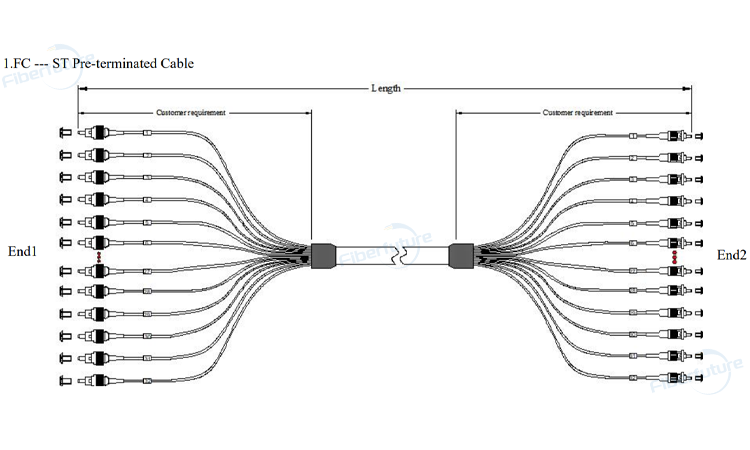

Dimensional Diagram

FC ST Pre Terminated Fiber Cable with LSZH Jacket

Applications

Critical component in the construction of optical fiber communication systems.
Essential for the backbone of fiber optic data networks.
Facilitates connection between main trunk cables and device access points.
Bridges transfer modules to equipment ports for seamless integration.

Features

Factory-tested for performance.
Accelerates network setup.
Supports 40G/100G networks.
Low insertion and added loss.
Customizable up to 144F.
High back loss, compact, lightweight.
Exceeds IEC/Telcordia specs.
LSZH, OFNP, OFNR jacket.
IEC 61754-13&2 mechanical strength.
Eco-compliant materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
