Factory Supply Mini IP SC Outer Cable RoHS Compliant

FIBERFUTURE factory-supplied mini IP SC outer cable is RoHS compliant, featuring low insertion loss and high attenuation. It is IP68-rated for water, dust, and corrosion resistance, with all-weather and UV-resistant materials. Ideal for outdoor applications, it meets IEC 61754-4 mechanical performance standards.

Send Email

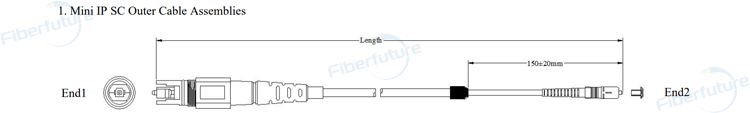

Dimensional Diagram

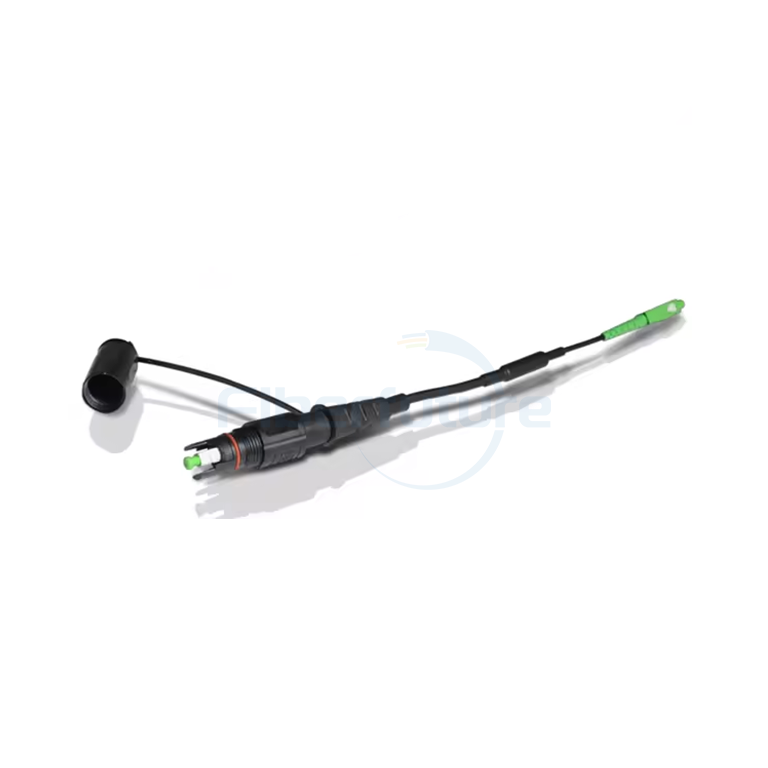

Factory Supply Mini IP SC Outer Cable RoHS Compliant

Applications

Versatile Outdoor Application: multi-purpose design, optimized for use in various outdoor environments, catering to a diverse set of operational requirements.
Specialized Connectivity Solution: essential link between the distribution box and the Remote Radio Head (RRH), ensuring robust and reliable connections that support the seamless flow of data in telecommunication networks.
Ideal Deployment in RRH Cell Towers: deployment within Remote Radio Head (RRH) cell tower applications, this solution enhances the efficiency and scalability of network infrastructure, facilitating seamless coverage expansion and capacity upgrades.

Features

Cost-Effective Solution: in-house termination.
Low Insertion Loss: minimal signal degradation.
High Attenuation: reliable performance in challenging environments.
IP67 Protection: water, dust, and corrosion-proof for outdoor use.
All-Weather Materials: UV-resistant for durability in varied conditions.
Mechanical Performance: IEC 61754-20 (MiniIP(LC)), IEC 61754-4 (MiniIP(SC)), and IEC 61754-7 (MiniIP(MPO)) standards.
Compliance: RoHS and REACH compliant materials ensure environmental responsibility.

Parameters

Item	Parameter
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB
Return loss	≥50dB(PC) ≥60dB(APC)	≥55dB(PC) ≥65dB(APC)	≥30dB(PC)	≥30dB(PC)
Durability	500 times a plug
Operation Temperature	-40 to + 85℃
