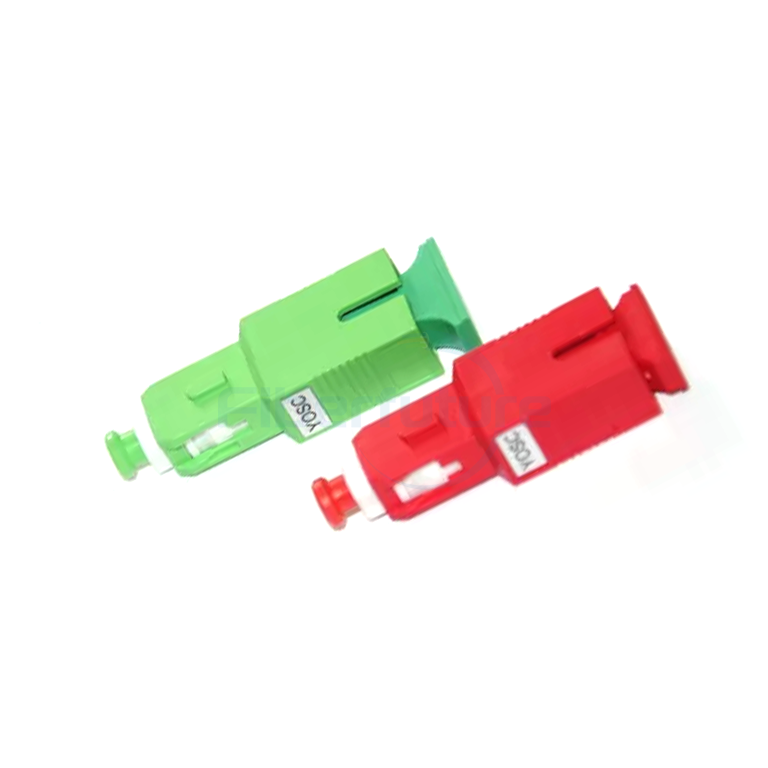

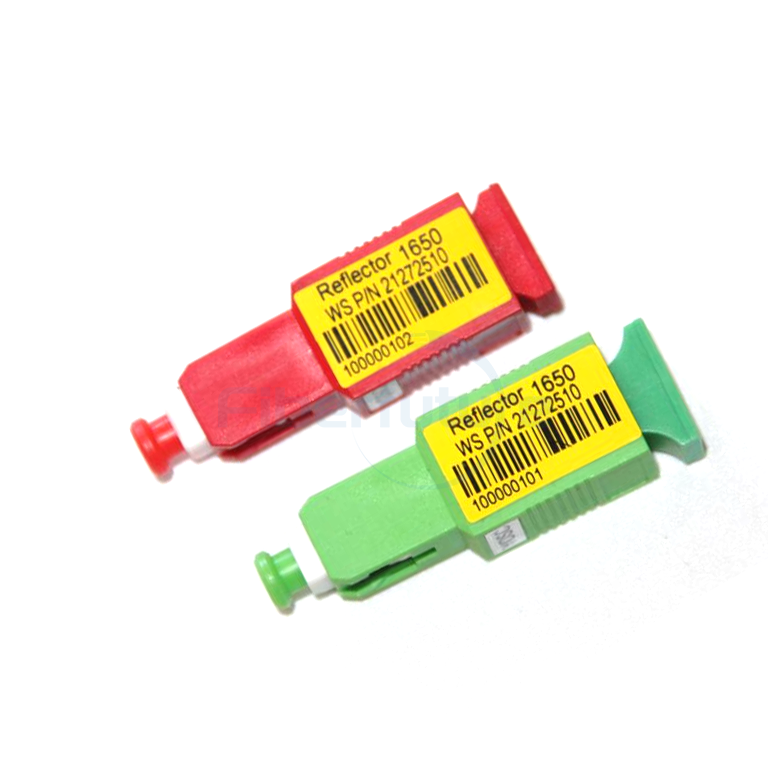

Easy Connection SC APC Fiber Bragg Grating Filter High Accuracy Optic Reflector

FIBERFUTURE FBG reflector is a cost-effective SC-type connector with an integrated fiber Bragg grating in its ceramic ferrule. It reflects 1650 ± 5 nm OTDR pulses near 100% from the OLT side while allowing normal PON traffic. Real-time monitoring ensures timely maintenance, identifying excessive line loss or breaks.

Send Email

Dimension

SC FTTH Optical Grating Reflector for FTTx Application

Applications

Network link monitoring
PON network
OTDR testing
Central computer room testing
FTTX
Other

Features

Low Insertion Loss: Ensures minimal signal loss.
High Reflectivity: Provides reliable reflection for testing.
Convenient Installation: Easy to set up and use.

Specifications

Item	Parameter		Specification	Unit	Remarks
1	Wavelength Range	Pass Band	1260~1625	nm
		Reflect Band	1644.5~1655.5	nm
2	Pass Band	IL	≤1.0	dB	@1260~1360
			≤1.0	dB	@1460~1600
			≤1.5	dB	@1600~1625
		ORL	>35	dB	@1260~1580
			>30	dB	@1580~1620
			>20	dB	@1620~1625
3	Reflect Band	IL	>21	dB	@1644.5~1655.5
3	Reflect Band	ORL	≤1.0	dB	@1644.5~1655.5
4	PDL		≤0.4	dB	@1260~1600
5	Ripple		≤0.6	dB	@1644.5~1655.5
6	TDL		≤0.5	dB	@1260~1600
7	Max Power Optical Handling		27	dBm
8	Plug Time		>500	Times
9	Connector Mode		LC/APC
