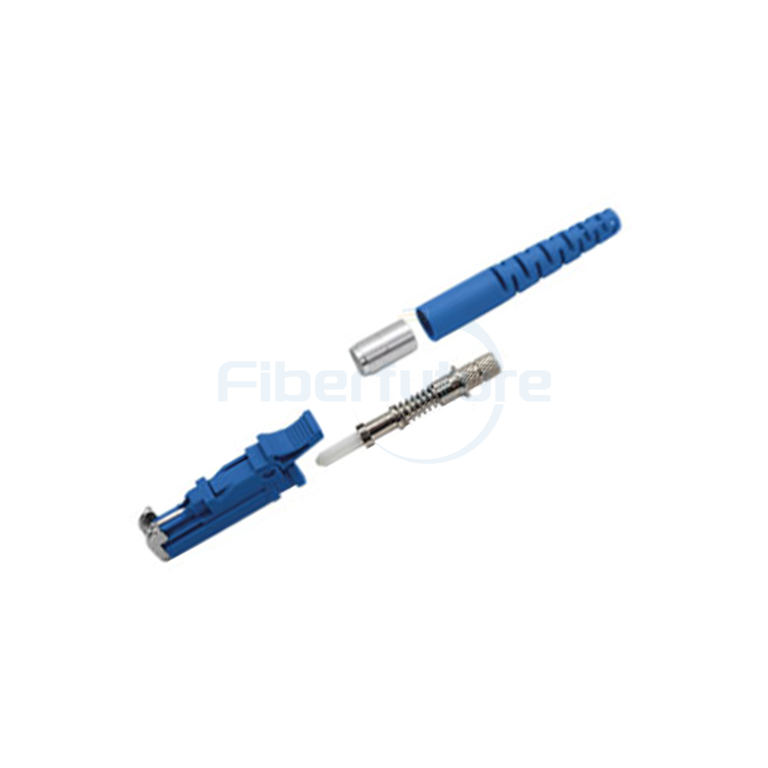

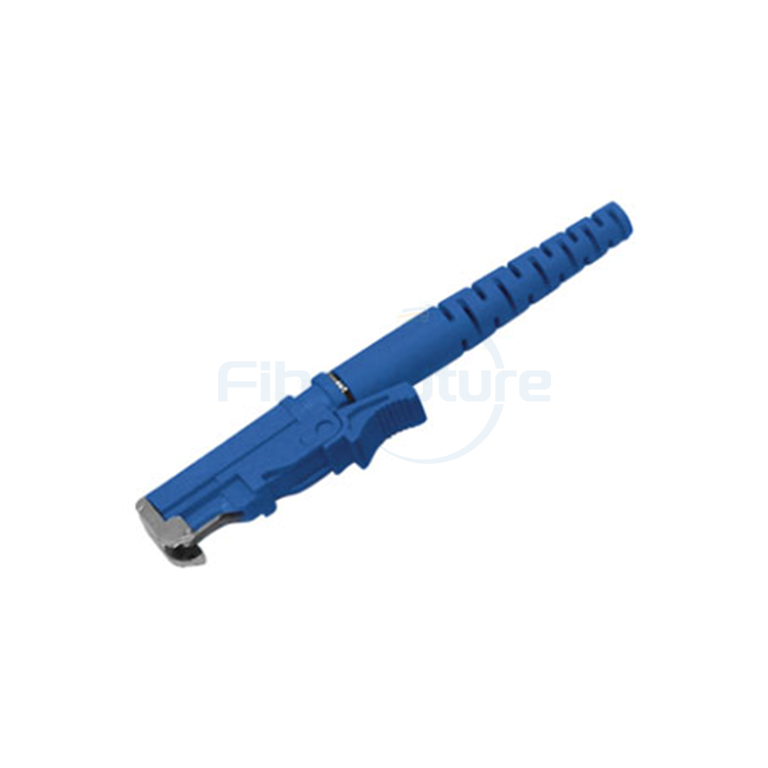

FIBERFUTURE E2000 fiber optic connector is gaining prominence in the communications sector due to its superior capabilities. The E2000 series encompasses a broad spectrum of designs, catering to diverse requirements. Despite commanding a higher price point compared to many conventional fiber connectors, the E2000 integrates advanced innovations that significantly enhance performance. A standout feature is its spring-loaded protective cap, which bolsters safety measures, shielding the connector from environmental contaminants and accidental damage, thereby ensuring optimal functionality and durability.
User-friendly design for effortless manipulation.
Rapid assembly process minimizing setup duration.
Precise dispensing without complications.
Elimination of waiting periods associated with adhesive setting.
An integrated shield cap safeguards the ferrule against particulate contamination and ensures no laser radiation exposure.
A built-in spring mechanism ensures the reliable closure of the protective cap.
Incorporates color and tactile coding for enhanced identification.
Utilizes a solid ceramic ferrule for superior signal integrity.
Ideal for environments requiring dense cabling arrangements.
Features a specialized ferrule preform to facilitate swift and efficient polishing procedures.
| Applicable connector type | E2000/UPC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0.15, maximum≤0.30 |
| Return Loss | ≥50dB |
| Insert core diameter | ∮2.5mm |
| Insert core parameter | Aperture: 125.5+1/-0μm, Concentricity: ≤0.5μm |
| Durability | 1000 times plug |
| Suitable for optical cable diameter | ∮2.0mm, ∮3.0mm |
| Working temperature | -20℃to+70℃ |
| Storage temperature | -40℃to+85℃ |
