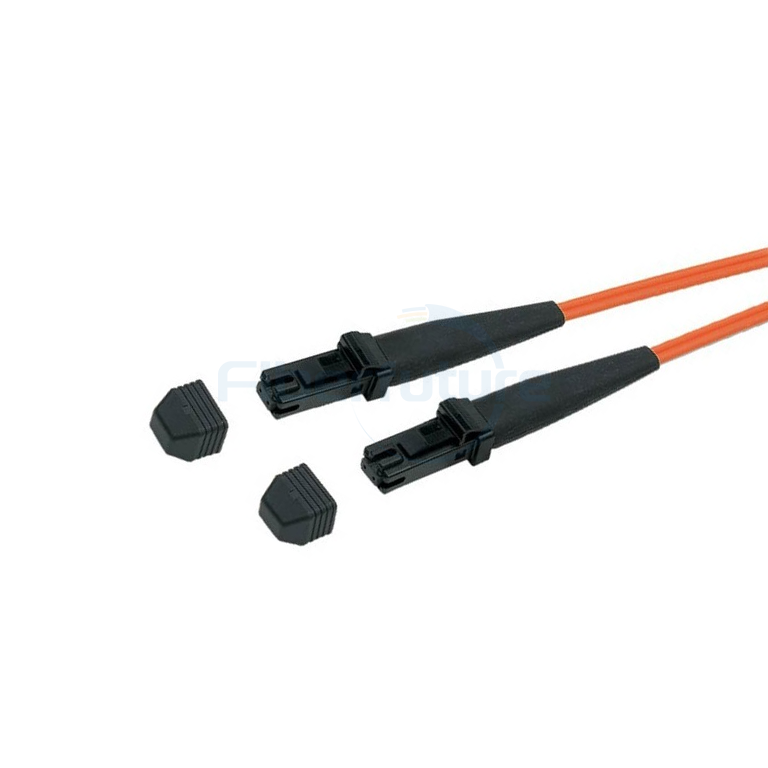

Duplex Multimode MTRJ to MTRJ Patch Cord OM2 Fiber Optic Patch Cable

FIBERFUTURE MTRJ-MTRJ duplex multimode OM2 fiber optic patch cord adopts a 50/125 micron core diameter and is designed for high-speed data transmission. It is suitable for device interconnection in data centers and local area network environments to ensure stable and reliable signal transmission.

Send Email

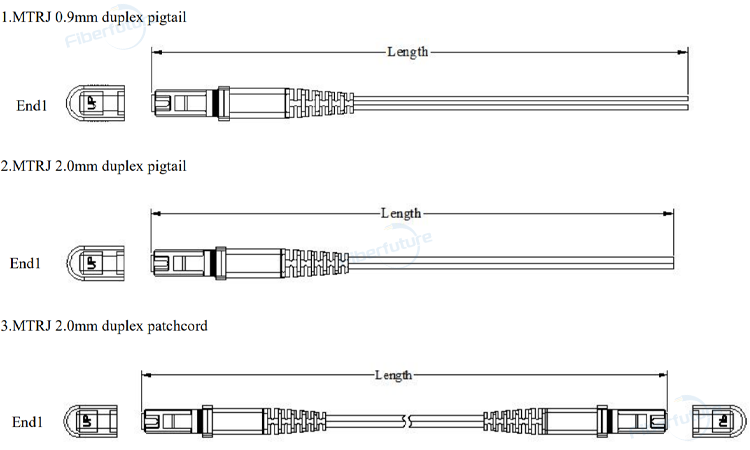

Dimensional Diagram

Duplex Multimode MTRJ to MTRJ Patch Cord OM2 Fiber Optic Patch Cable

Applications

Engineering and integration in optical fiber communication systems.
Deployment and management of fiber-based data networks.
Construction and maintenance of Fiber CATV distribution systems.
Experimentation and testing in various optical technology applications.

Features

Offers a versatile selection of designs and comprehensive connectivity options.
Ensures minimal insertion and additional loss for optimized signal transmission.
Provides high levels of attenuation for reduced signal leakage.
Features high back reflection loss, compact size, and lightweight construction.
Exceeds IEC and Telcordia standards for end-face geometry and finish quality.
Equipped with LSZH, OFNP, and OFNR rated cable jackets for safety and performance.
Adheres to IEC 61754-18 for robust mechanical durability.
Complies with RoHS and REACH regulations for environmentally responsible materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.25dB;Maximum≤0.50	Typical value≤0.25dB;Maximum≤0.50	IEC 61300-3-34
Return loss	≥ 50dB (PC)	≥30dB (PC)	IEC 61300-3-6
	≥ 60dB (APC)
