Duplex Drop Cable Patch Cord SC/UPC-SC/UPC

Duplex Drop Cable Patch Cord Manufacturer SC/UPC-SC/UPC

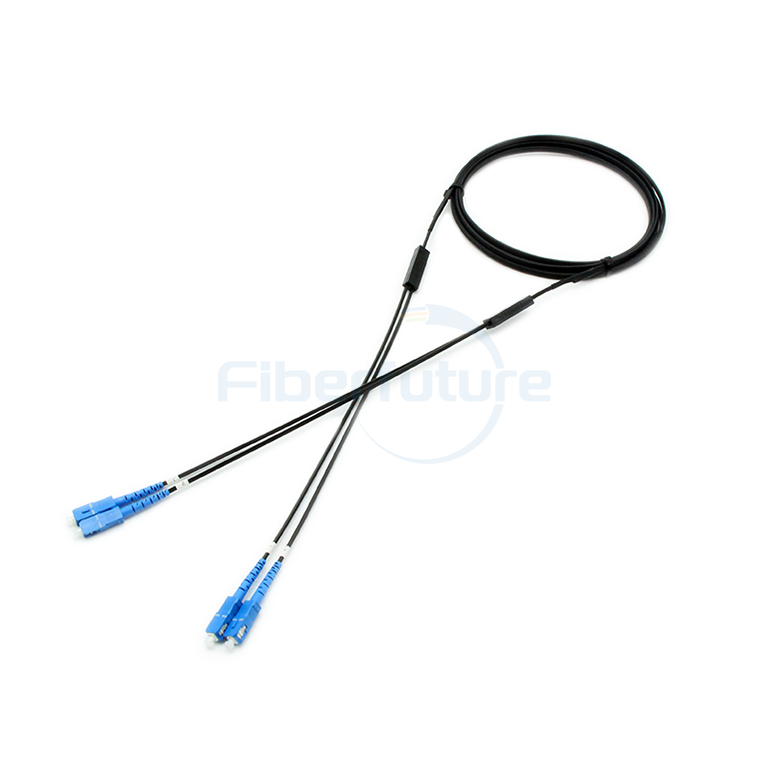

FIBERFUTURE duplex patch cable integrated with a self-supporting aerial FTTH drop cable, designed for the final leg of FTTH projects. It's widely used for connections between faceplates, terminal boxes, and ONUs, offering easy fiber access and simple installation directly into homes. The cable features central optical fibers, with two parallel FRP (Fiber Reinforced Plastic) strength members on either side, and is sheathed in LSZH material. Customization options are available upon customer request.

Send Email

Features

Excellent mechanical and environmental characteristics
Simple, lightweight design with high practicality
Low-smoke, zero-halogen, flame-retardant sheath

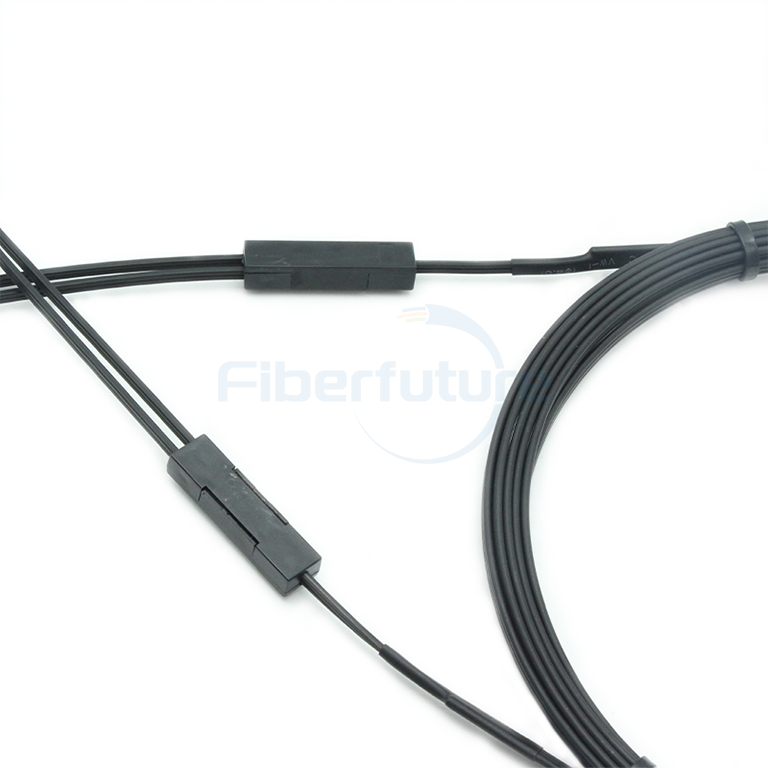

Innovative flute design for easy stripping and splicing, simplifying installation and maintenance
Two parallel FRP strength members for superior anti-electromagnetic and crush resistance
Special low-bend-sensitivity fiber ensures high bandwidth and excellent transmission quality

Applications

Access Networks
Local Area Networks (LAN)
Fiber Optic Communication Systems
FTTH (Fiber to the Home) Indoor Buildings
Optical Fiber Connected and Transmission Equipment

Connector’s Standard

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

Optical Specifications

Cable Type	Outdoor/Indoor FTTH Patch Cord	Fiber Count	Simplex
Connector	SC APC to SC APC	Jacket Material	Low Smoke Zero Halogen
Cable Diameter	2.0×5.0mm	Fiber Type	Singlemode G657A1
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Strength Member Material	FRP	Tensile Strength (Long/Short Term)	300/600N
Crush Load (Long/Short term)	1100/2200 (N/100mm)	Bending Radius (Long/Short Term)	10D/20D (mm)
Installation Temperature	-10 to +60°C	Operation Temperature	-10 to +60°C

Optical Performance

Test Item		Test Condition	Value (dB)
			UPC	APC
Optical Performance	Insertion Loss	1310nm LED Light source	<0.3	<0.3
	Return Loss	1310nm LED Light source	>50	>60
Environmental Performance (Max. Insertion Loss Change)	High temperature	+85°C168 Hours	<0.2
	Temperature Cycle	-40-+75°C, 21 Cycles 168 Hours	<0.2
	Humidity Aging	+75°C, 95%R.H,168 Hours	<0.2
	Humidity/Condensation Cycling	-10°C-+65°C, 90%~100%RH, 14 Cycles 168 Hours	<0.2
Mechanical Performance (Max. Insertion Loss Change)	Vibration	10-55Hz, 1.5mm (p-p)	<0.2
	Flex	0.9kg, -90^o~+90^o Repeat for 100 Cycles	<0.2
	Torsion	1.35kg, 90^o~+90^o, 10 Times	<0.2
	Withstand tensile	90N, 10min	<0.2
	Drop	H=1.5M, Total of 8 Drops	<0.2
	Exchangeability	Randomly	<0.2
	Durability	500 Times	<0.2

Cable Parameters

Cable Type	FTTH Drop Cable	Fiber Count	2 Fiber
Construction	Self-supporting	Fiber Type	Singlemode G.657A
Outer Jacket Material	LSZH (Black/White)	Strength Member Material	FRP/KFRP/ Solid Steel Wire
Cable Diameter	(2.0±0.2)×(5.0±0.2)mm	Weight	20kg/km
Tensile Strength (Long/Short Term)	100/200N	Crush Load (Long/Short Term)	300/1000 (N/100mm)
Bending Radius(Long/Short Term)	10D/20D (mm)	Operating/Storage Temperature	-40 to +85 °C
