Double Doors Fiber Optic Cabinet for Indoor Use

Double Doors Fiber Optic Cabinet for Indoor Use

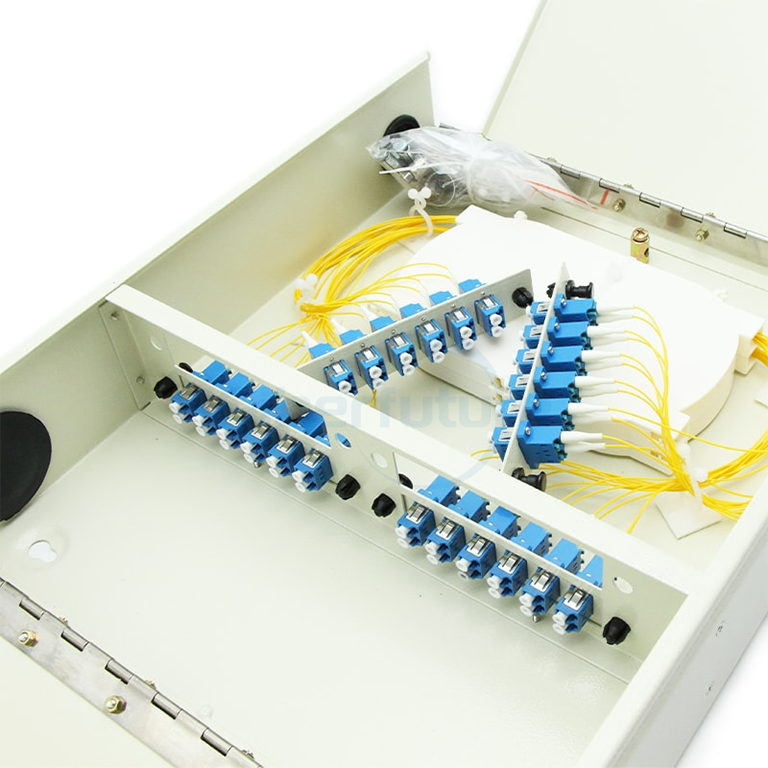

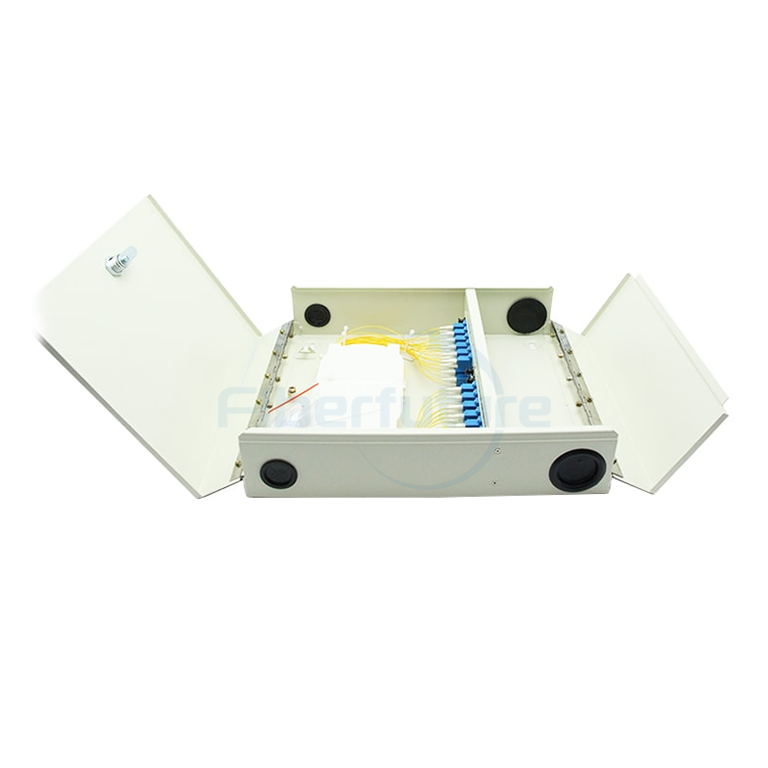

FIBERFUTURE Double doors fiber optic cabinet is designed for indoor applications, featuring dual doors for easy access. Ideal for data centers and telecom rooms, it offers secure storage and management of fiber optic cables and components. With a spacious interior and versatile mounting options, it supports efficient cable routing and organization.

Send Email

Features

Suitable for small capacity systems, wall-mountable, compact design.
Two-part construction: cable fusion and patch cord connectivity.
Provides cable fusion, storage, and secure protection for fixing, stripping, and grounding.
Robust protection for cable management.
Ensures a minimum bend radius of 40mm for fibers.
Offers protective accessories to prevent fiber damage.
Made from cold-rolled steel, electrostatically sprayed for durability.
Compact, organized layout for easy operation and maintenance.
Adapter panels available for FC, SC, and ST connectors.

Applications

FTTX Projects
ODN Systems
Data Centers
PON Systems

Technical Parameters

Fiber curvature radius ≥ 40mm

Additional loss ≤ 0.01dB

Fiber retention length ≥ 1.6m

Operating temperature: -400C ~ +700C

Lateral pressure resistance: ≥ 2000N/10cm

Impact resistance: ≥ 20N.m

Specifications

Part No.	Dimension (mm)	Material	Max Capacity	Qty/Carton	Carton Size (mm)
24 Ports	45540580	Cold rolled steel sheet	24/48	5pcs/Carton	405335605
48 Ports	455405120	Cold rolled steel sheet	48/96	4pcs/Carton	500450490
72 Ports	455405150	Cold rolled steel sheet	72/144	3pcs/Carton	500450490
96 Ports	455405185	Cold rolled steel sheet	96/192	2pcs/Carton	500450490
