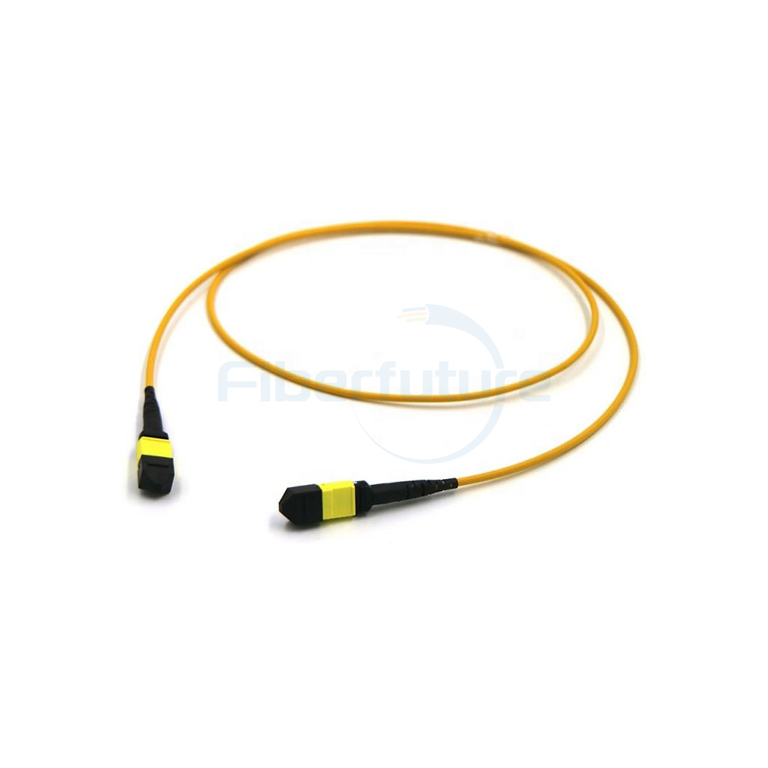

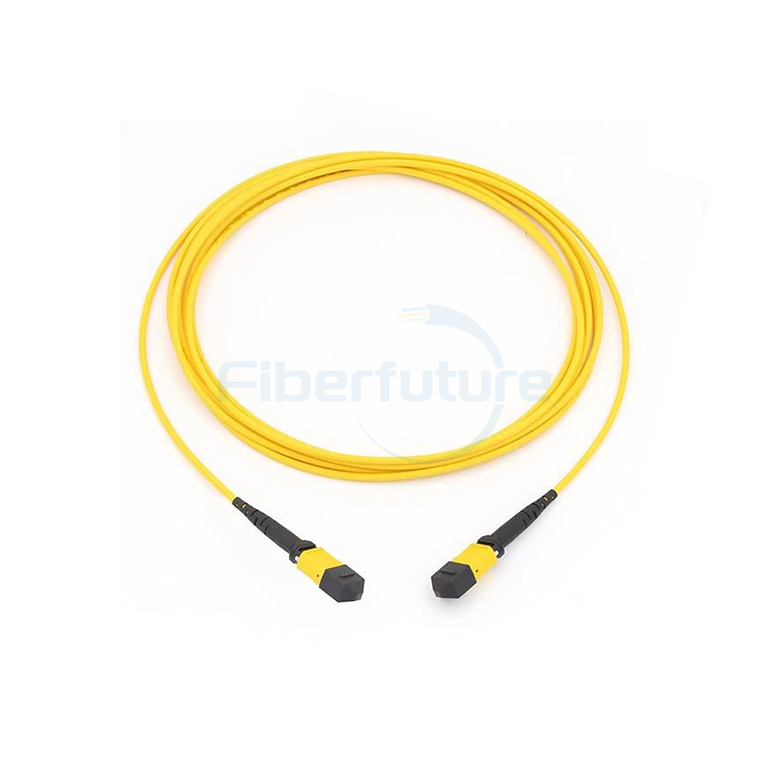

Data Communication Network MPO/MTP Trunk Cable

FIBERFUTURE MPO/MTP Trunk Cable is a high-density interconnect solution designed for data centers and high-speed networks. With multi-fiber technology, it supports parallel data transmission, ensuring fast and reliable performance in complex network architectures.

Send Email

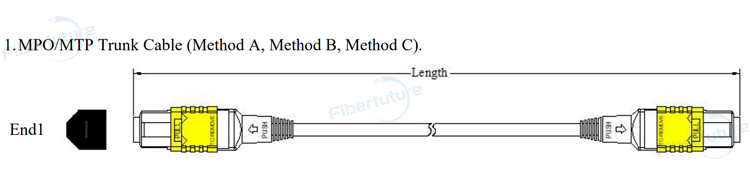

Dimensional Diagram

Data Communication Network MPO/MTP Trunk Cable

Applications

High-speed Data Transfer Networks
Optical Access Systems for Broadband Connectivity
Storage Networks utilizing Fiber Channel Technology
Dense Network Designs for Space Optimization

Features

Factory-assembled and fully-tested for guaranteed transmission excellence.
Facilitates swift setup and network expansion, significantly cutting installation duration.
Compatible with ultra-high-speed 40G and 100G network capabilities.
Offers jacket materials in LSZH, OFNR, and OFNP grades for varied environmental needs.
Accommodates configurations up to 144 fibers, with custom solutions on offer for specific project requirements.

Optical Characteristics

Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC61300-3-34
Return loss	≥50dB (PC) ≥60dB (APC)	≥55dB (PC) ≥65dB (APC)	≥30dB (PC)	≥30dB(PC)	IEC61300-3-6

Cable Parameters

Fiber Count	OD (mm)	Nominal Weight (kg/km)	Max.Tensile Strength (N)		Max.Crush Resistance (N/100mm)		Min.Bending Radius (mm)
Fiber Count	OD (mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
48	9.5±0.3	79	500	180	1000	300	20D	10D
