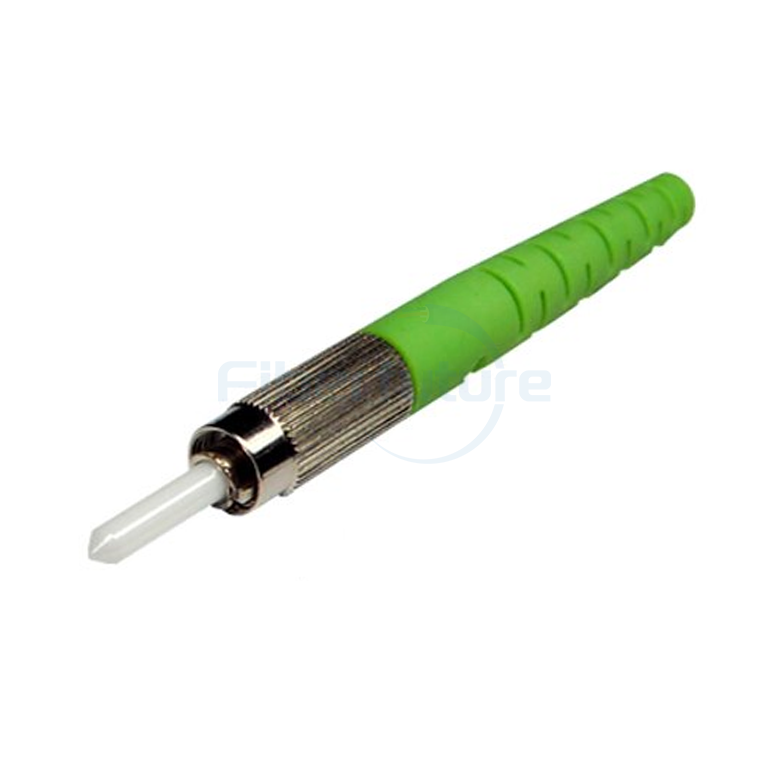

Customized DIN/APC SM Connector

FIBERFUTURE DIN/APC SM connector, single-mode fiber optic connector, uses angle polishing technology to reduce reflection and optimize signal transmission. Suitable for high-precision telecommunications and data communication networks, ensuring low insertion loss and high return loss. Compact design, stable and reliable, to meet the requirements of harsh environments.

Send Email

Applications

Fiber optic communication system engineering design and integration
Fiber optic data communication network deployment
Fiber optic CATV system architecture and implementation
Advanced optical technology testing and evaluation

Features

Offers a versatile design with a comprehensive selection of interfaces.
Delivers minimal insertion loss and additional loss for optimal signal integrity.
Achieves substantial attenuation for effective signal management.
Boasts high back reflection loss, compact size, and lightweight construction.
Exhibits outstanding stability and reliability under various operating conditions.
Conforms to stringent mechanical performance standards as per IEC 874-3.

Specifications

Applicable connector type	DIN/APC
Optical fiber type	SM
Test the wavelength	1310nm~1550nm
Insertion loss	Typical value≤0.15, maximum≤0.30
Return Loss	≥50dB
Insert core diameter	∮2.5mm
Insert core parameter	Aperture: 125.5+1/-0μm, Concentricity: ≤1.0μm
Durability	1000 times plug
Suitable for optical cable diameter	∮2.0mm, ∮3.0mm
Working temperature	-20℃to+70℃
Storage temperature	-40℃to+85℃
