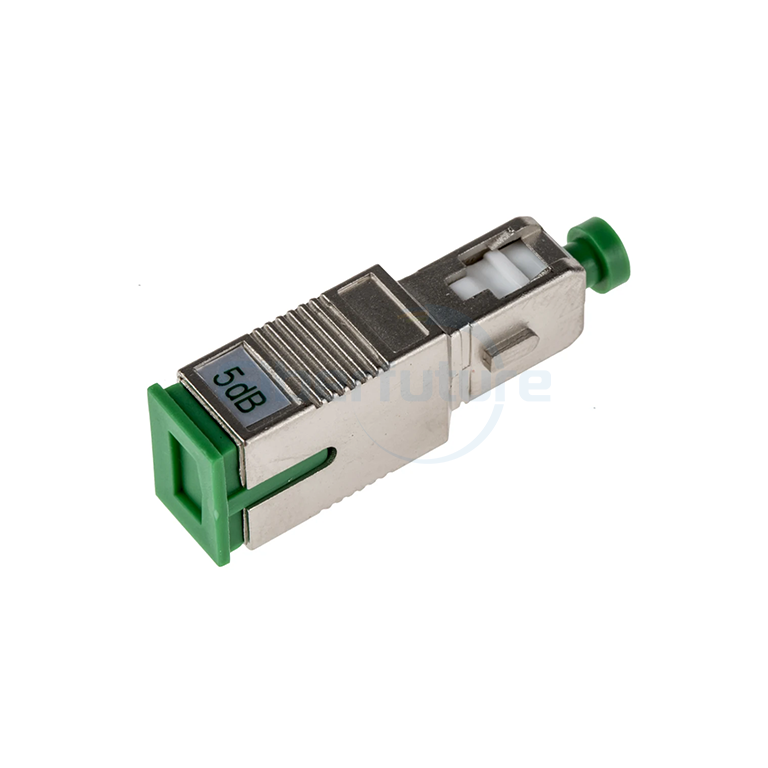

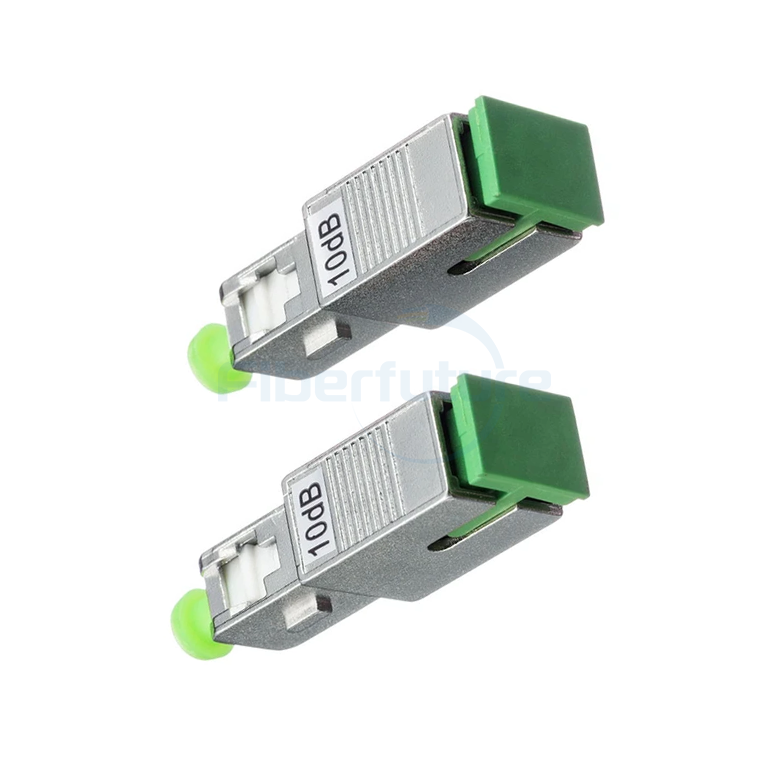

FIBERFUTURE SC Attenuator is a precision optical component designed to manage light power levels in fiber optic links. With an SC connector interface, it provides stable attenuation for optimizing signal strength in telecommunications, data centers, and CATV networks. Its robust build ensures reliability, while its simple push-pull mechanism facilitates quick and secure connections. Suitable for a wide range of applications, it's an essential tool for achieving balanced and efficient fiber optic system performance.
Broad Attenuation Span
Minimal Return Loss
Low Polarization Dependent Loss (PDL)
Polarization Non-sensitive
Multiple Connector Options
Exceptional Reliability
Eco-friendly, ROHS Compliant
Fiber Optic Communication Networks
Cable TV Systems
Test Equipment Components
| Parameters | Min. | Typical | Max | Unit |
| Operating Wavelength Range | 1310 ± 40 | nm | ||
| 1550 ± 40 | nm | |||
| Return Loss | PC Type | 50 | dB | |
| APC Type | 60 | dB | ||
| Operating Temperature | -40 | / | 85 | °C |
| Tolerance | DB≤10dB=±0.5 & DB≥10dB=±10% | |||
| Storage Temperature | -40 | / | 85 | °C |
