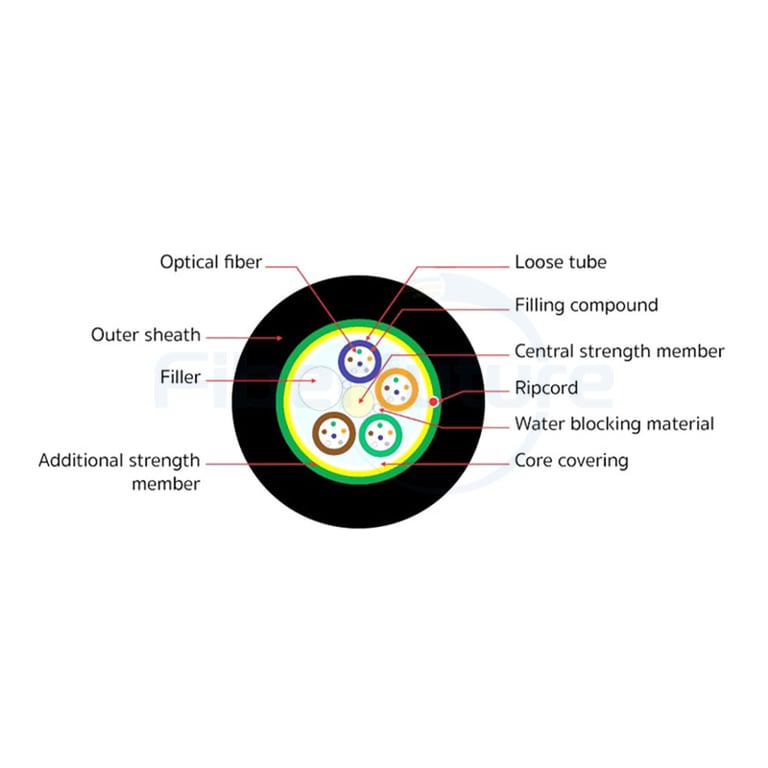

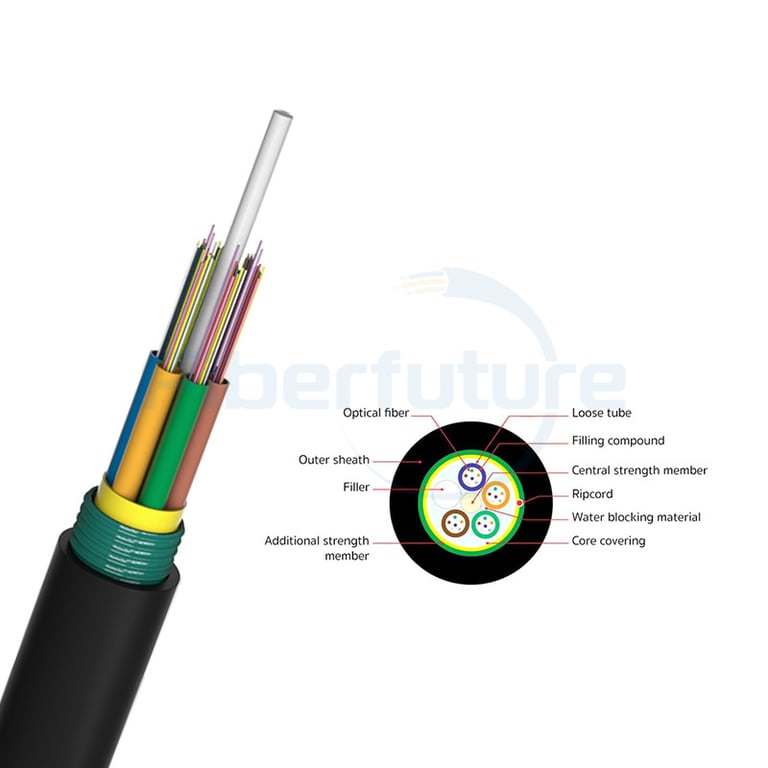

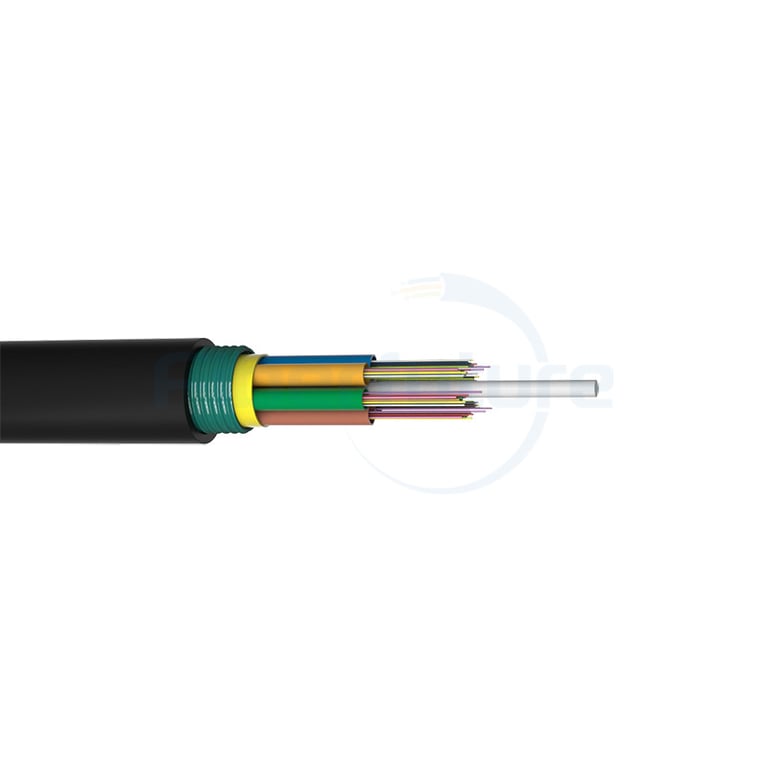

FIBERFUTURE® ARSS (Anti-Rodent Self-Support) cable, Outdoor/Multi-tube, Armored, Single Jacket, fiber optic cable for aerial, direct buried and duct installation. Single mode color coded fibers are housed in multiple color coded plastic buffer tubes which are stranded around a dielectric central strength member. Dry water blocking tapesor yarns, wrapped around the core, provide protection against water ingress.These user friendly elements replace thesticky cable filling gel used in traditional loose tube cable designs. Aramid yarns, which provide additional tensile strength,are applied over the cable core. Corrugated steel tape provide for anti-rodent. The cable sheath is high density polyethylene jacket. Contain 6 to 312 cores.
| Fiber Count | |
|---|---|
| Fiber Type |
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
| Fiber count | Overall Diameter (mm) | Nominal Weight (kg/km) | Tensile loading (N) | Crush Loading (N/cm) | Min. Bending radius |
| 12&24 | 12.0 | 100 | 1,800 | 3,400 | |
| 48 & 60 | 12.5 | 115 | 1,800 | 3,400 | |
| 72 | 13.0 | 125 | 2,500 | 3,400 | 20 x D Install & 15 x D Fixed |
| 96 | 15.0 | 165 | 2,500 | 3,400 | |
| 120 | 17.0 | 190 | 2,500 | 3,400 |
