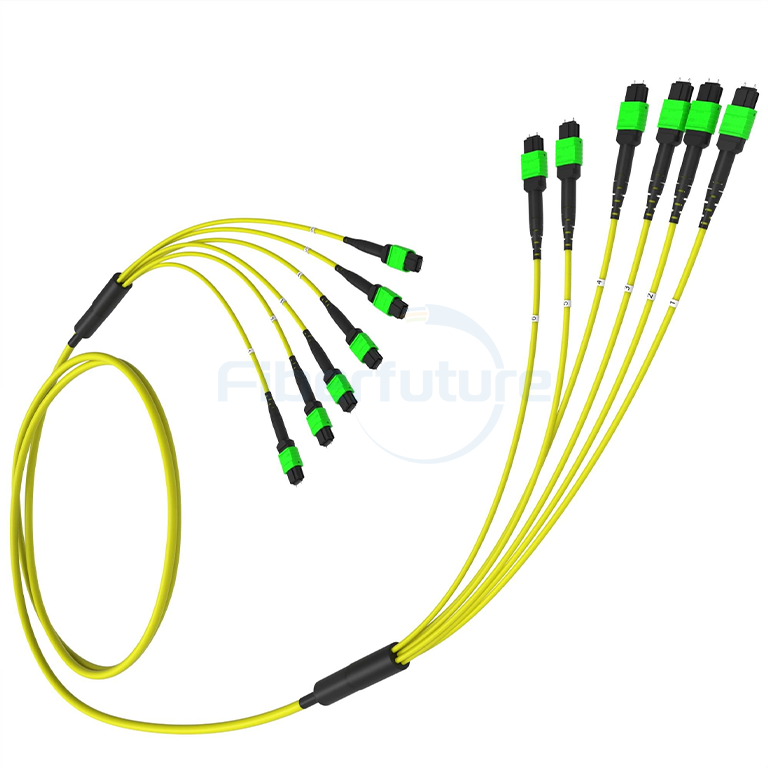

FIBERFUTURE MPO/MTP fiber optic trunk cable is a high-density, multi-core solution for data centers, offering streamlined 10G to 400G connectivity with push-pull connectors for easy management and rapid deployment in complex network environments.
1. Integration in data communication frameworks.
2. Deployment in Optical System Access grids.
3. Enhancement of Storage Area Networks via Fiber Channel.
4. Optimization for high-density infrastructure layouts.
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB (PC) ≥60dB (APC) | ≥55dB (PC) ≥65dB (APC) | ≥30dB (PC) | ≥30dB (PC) | IEC61300-3-6 |
| Fiber Count | OD (mm) | Nominal Weight (kg/km) | Max.Tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 72 | 11.5±0.3 | 126 | 1000 | 300 | 1000 | 300 | 20D | 10D |
| 96 | 13.5±0.5 | 178 | 1000 | 300 | 1000 | 300 | 20D | 10D |
| 144 | 17.5±0.5 | 285 | 1000 | 300 | 1000 | 300 | 20D | 10D |
