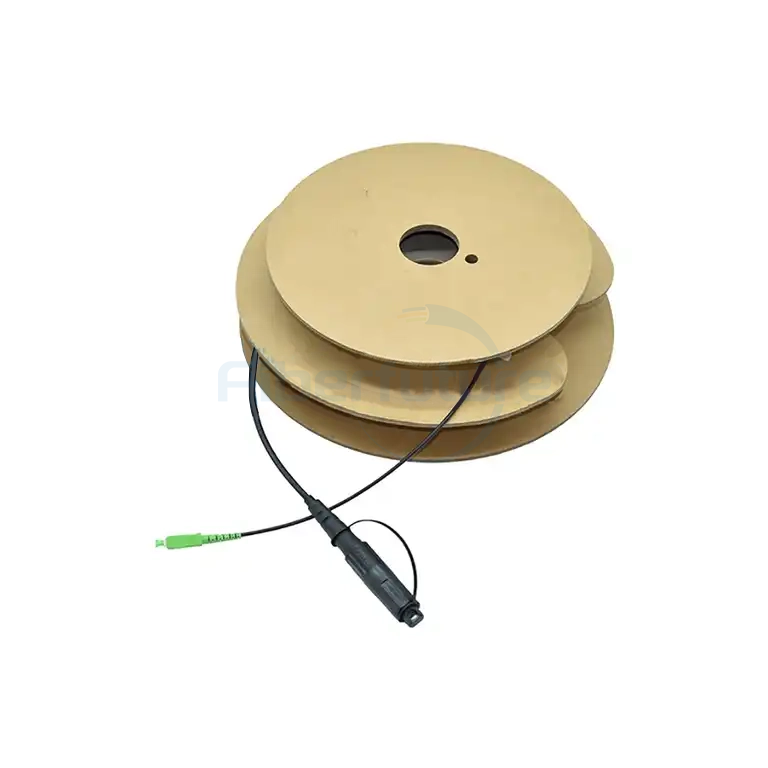

5.0mm OptiTap Patch Cord SC/APC-SC/APC G657A2 SX

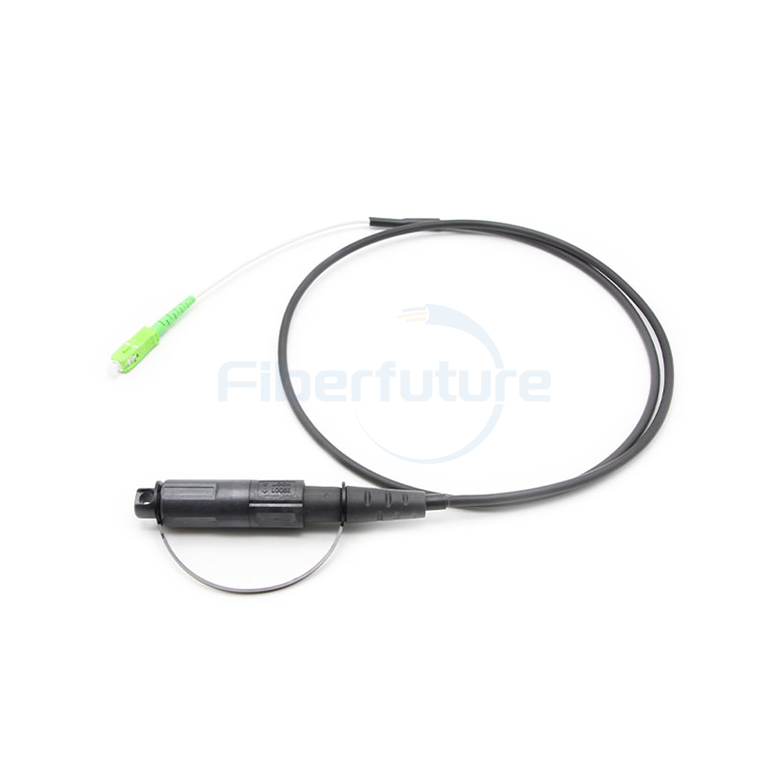

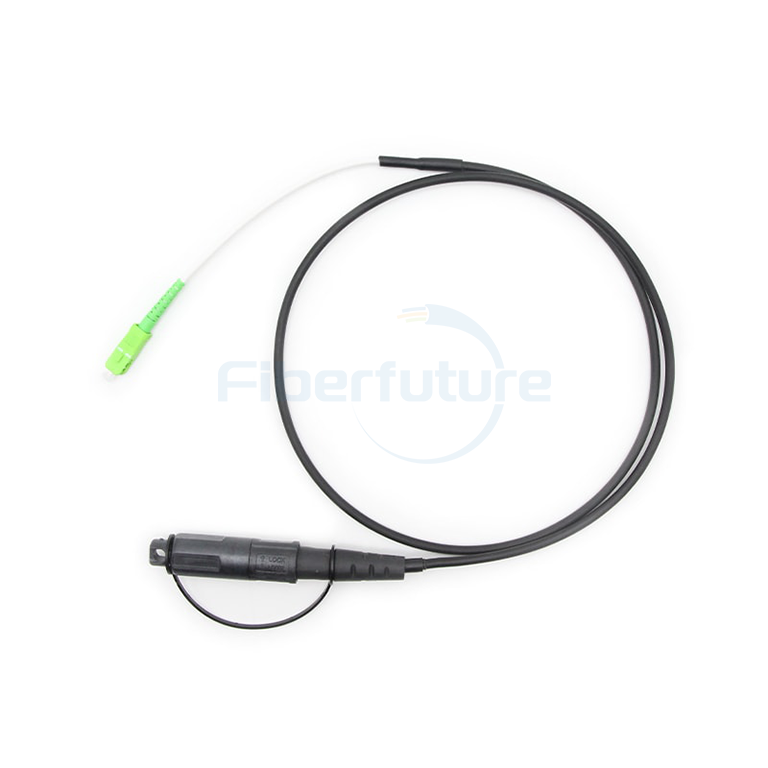

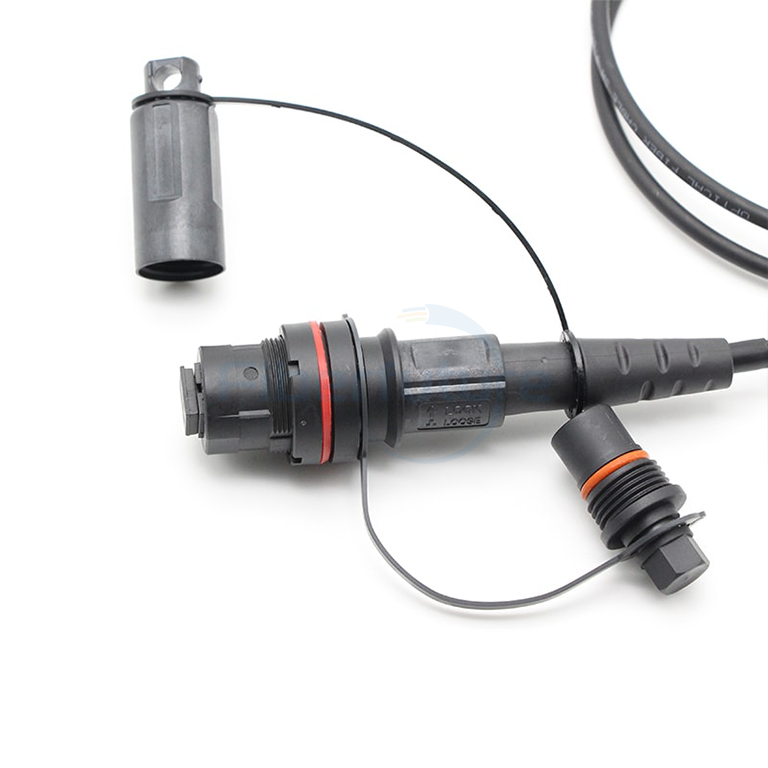

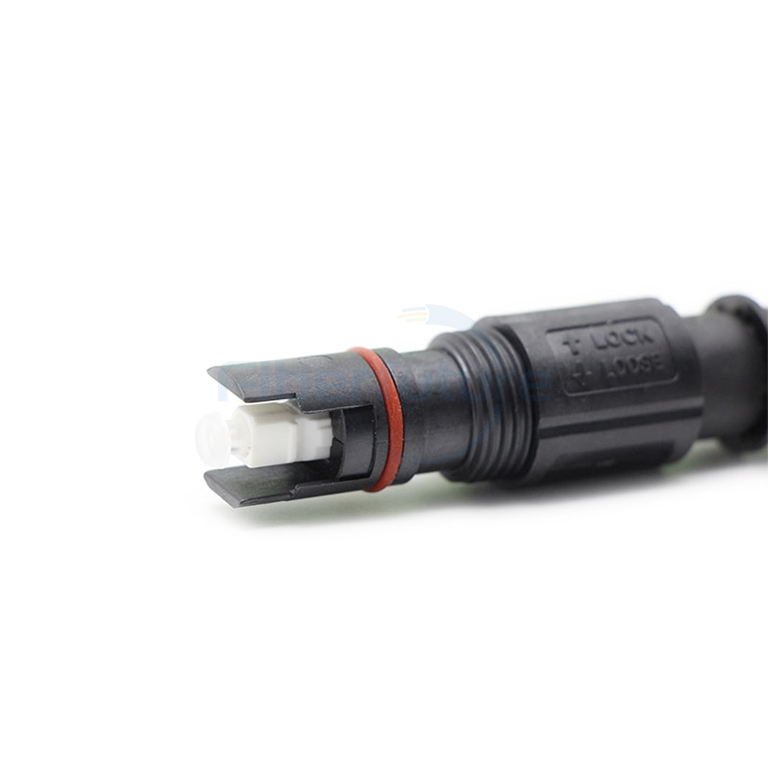

FIBERFUTURE’s OptiTap SC APC-SC APC patch cord, with a 5.0mm double-jacketed design, offers strong tensile strength. The Huawei connector features an SC/APC type within a sealed, threaded polymer housing, enabling easy connections. It plugs directly into optical termination boxes without opening, providing robust, sealed, and waterproof links, making it ideal for FTTH applications.

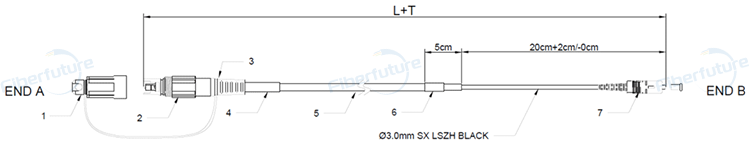

Dimensional Diagram

5.0mm OptiTap Patch Cord SC/APC-SC/APC G657A2 SX

Optical Characteristics

Connector OptiTap SC-Standard SC Polish APC-APC
Fiber Mode 9/125μm, G657A2 Jacket Color Black
Cable OD 5.0±0.2mm Wavelength SM: 1310/1550nm
Cable Structure Simplex Jacket Material LSZH
Insertion Loss ≤0.3dB (Super Low Loss) Return Loss SM APC ≥ 60dB (min)
Operation Temperature -10 ~ +70°C Install & Storage Temperature -40 ~ +70°C
Note: The IL in the table refers only to the connector. The total product IL includes both connector IL and fiber cable IL, calculated as: IL total = 2 × IL (connector) + IL (1km cable) / 1000 × L (cable length).

Mechanical and Environmental Characteristics

Items Unite Specifications Reference
Span Length M 50
Tension (Long Term) N 300 IEC 61300-2-4
Tension (Short Term) N 600 IEC 61300-2-4
Crush (Long Term) N/10cm 300 IEC 61300-2-5
Crush (Short Term) N/10cm 1000 IEC 61300-2-5
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Operating Temperature -20~+60 IEC 61300-2-22
Storage Temperature -20~+60 IEC 61300-2-22

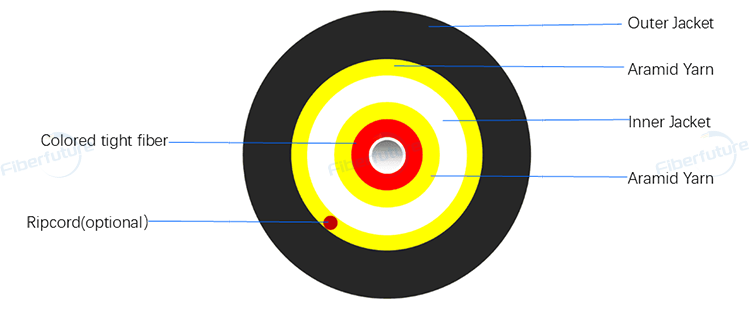

Cable Diagram

5.0mm OptiTap Patch Cord SC/APC-SC/APC G657A2 SX

Cable Parameters

Items Parameters
Fiber Count 1F, 9/125μm, G657A2
Tight butter Diameter 0.9±0.1mm
Color Red or Blue or White or Green
Inner Jacket Diameter 2.9mm±0.1mm or 2.0mm±0.1mm
Material LSZH
Color White & Black or Others
Strength Member Aramid Yarn
Outer Jacket Diameter 5.0mm±0.2mm
Material LSZH
Color Black

Connector Optical Specifications

Type OP SC APC,Compatible with OptiTap SC APC
Insertion Loss Max. ≤ 0.3 dB
Return Loss ≥ 60 dB
Tensile Strength between Optical Cable and Connector Load: 300N Duration: 5s
Waterproof IP67
Fall Drop Height: 1.5m

Number of dDrops: 5 for Each Plug

Test Temperature: -15℃ and 45℃

Bending Load: 45N

Duration: 8 Cycles, 10s/Cycle

Torsion Load: 15N

Duration: 10 Cycles ± 180°

Static Side Load Load: 50N for 1h
Waterproof Depth: under 3m of Water. Duration: 7 Days
Change of Temperature Temperature: -25ºC to 70 ºC

Duration at Extreme Temps: 1h

Temperature Change Speed: 1ºC/min

Cycles: 12

Length Tolerance

Overall Length (L) (m) Length of Tolerance (cm)
10L40 +15/-0
40L +0.5%L/-0
