4/8/12F Fan-out Ribbon Fiber Pigtails RoHS ISO9001 Compliant

4/8/12F Fan-out Ribbon Fiber Pigtails RoHS ISO9001 Compliant

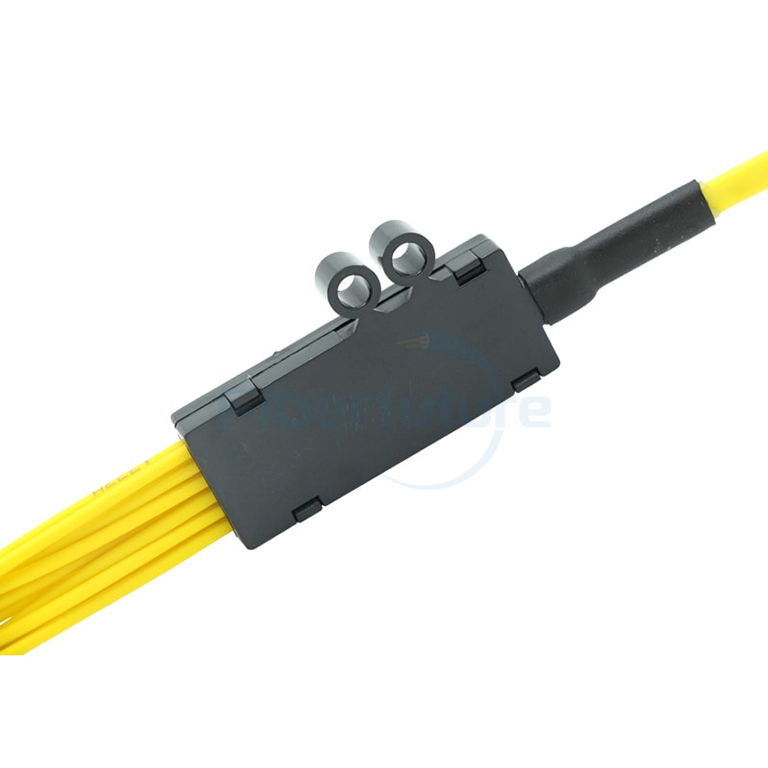

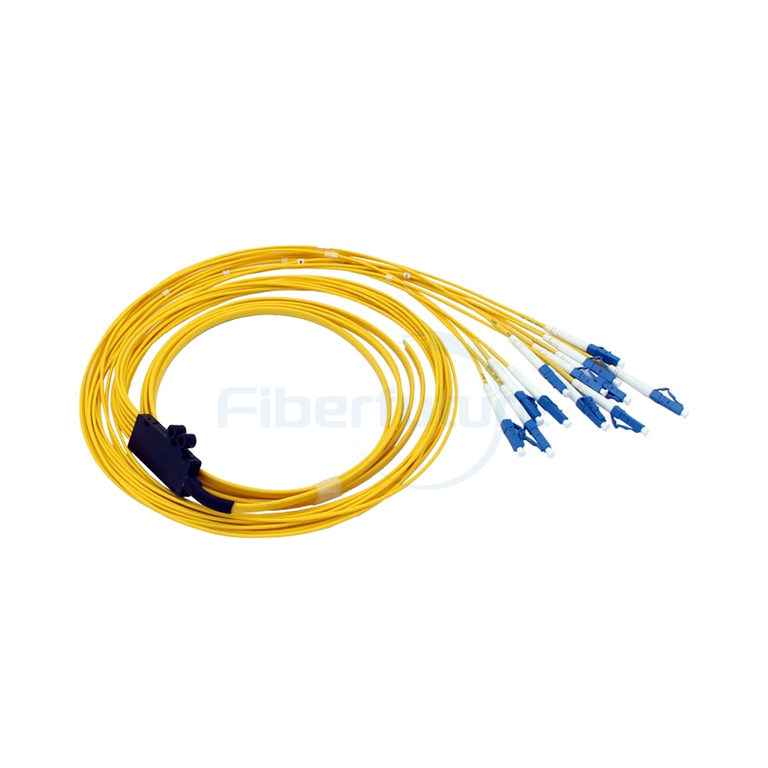

FIBERFUTURE 4/8/12F ribbon fan-out fiber optic pigtail uses ribbon cable for multi-fiber applications. It fans out through a 1×12 kit, with options for 900um or 2.0mm cables. Available in single and multimode with APC or UPC polish, these pigtails are factory-inspected and tested, with interferometer data on request.

Connector Type

Send Email

Features

High-quality zirconia ferrules.
Good repeatability and interchangeability.
Flame-retardant, rugged jacket.
100% optically tested for insertion loss.

Applications

Data Centers
Enterprises
FTTX (Fiber to the X)
LAN & WAN
CATV Networks
Telecommunications Networks

Standard Compliance

TIA 604 (FOCIS)
TIA/EIA 492AAAE
IEC 61754
IEC 60793-2-10
IEC 61300-3-35
YD/T 1272.1-2003
RoHS & ISO 9001 compliant

Materials

Fibers: G652D, G657A1, G657A2/B2, G657B3, OM1, OM2, OM3, OM4, OM5.
Ribbon Cables: 4F OD: 2.5×3.5mm, 6F OD: 2.5×3.8mm, 8F OD: 2.5×4.5mm, 12F OD: 2.5×5.0mm
Jacket Materials: PVC (Riser/OFNR), LSHZ, Plenum (OFNP).
Ferrules: High-quality SM Ceramic, concentricity <0.5um, High-quality MM Ceramic, concentricity <4.0um
Fanout Kits: High-quality 1×12 for 12F ribbon fiber and ribbon cable.

Specifications

Connector	SC, LC, FC, ST, E2000, MU, LX.5, DIN, D4	Jacket OD (mm)	4 cores:3.5×2.5mm 6 cores: 3.8×2.5mm 8 cores: 4.5×2.5mm 12 cores: 5.0×2.5mm
Fiber Mode	9/125μm, 50/125μm, 62.5/125μm,	Jacket Color	SM: Yellow/Blue/White; OM1&OM2: Orange; OM3: Aqua; OM4: Aqua/Violet/Magenta
Polish	PC, UPC, APC	Wavelength	SM: 1310/1550nm MM: 850nm
Cable Type	Multi-fibers Breakout 2.0mm unit cable	Jacket Material	LSZH/PVC/OFNR/OFNP
Insertion loss	≤0.3dB (IEC Grade C)	Insertion loss	≤0.12dB (IEC Grade B)
Return loss	SM UPC ≥50dB (min) SM APC ≥60dB (min) MM PC ≥35dB (min)	Interchangeability & Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
