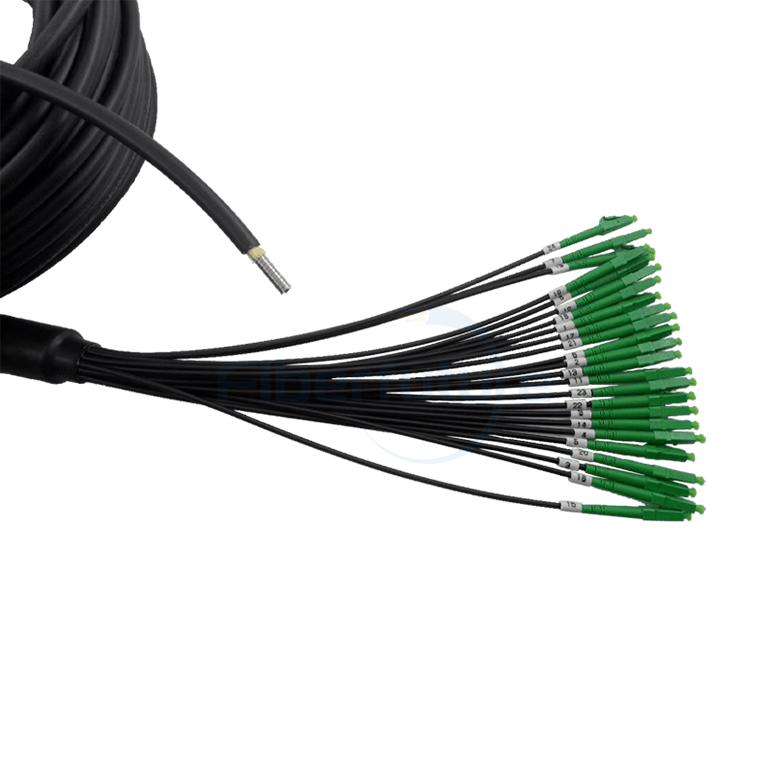

FIBERFUTURE 4-24F armored patch cable is designed with a soft metal protection tube and standard connectors, making it suitable for floor corner installations. This cable protects against damage from mice and ants, combining the strength of armored cable with the flexibility of standard patch cords. It allows for random bending without breaking, ideal for harsh environments with dust, oil, gas, moisture, and rodent activity.
| Connector Type |
|---|
Small bending radius
Anti-tread
Anti-bite of mouse and ant
Big tensile strength
| Connector | SC, LC, ST, FC, MU, E2000, MTRJ… | Polish | PC, UPC, APC |
| Fiber Mode | 9/125μm, 50/125μm, 62.5/125μm | Jacket Color | SM: Yellow/Blue/White/Black
OM1&OM2: Grey/Orange OM3: Aqua OM4: Aqua/Violet/ Magenta |
| Insertion Loss | ≤0.3dB (IEC Grade C)
≤0.12dB (IEC Grade B) |
Return Loss | SM UPC ≥ 50dB (min)
SM APC ≥ 60dB (min) MM PC ≥ 35dB (min) |
| Interchangeability & Vibration | ≤0.2dB | Operation & Storage Temperature | -40~85°C |

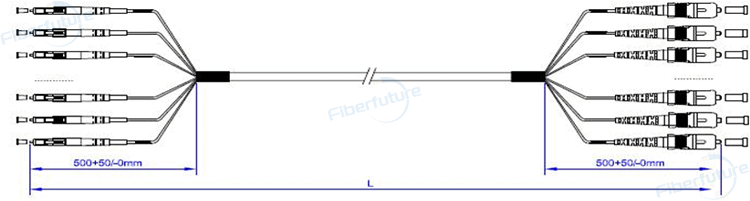

| Overall Length (L) (m) | Length of Tolerance (cm) |
| 0＜L＜1 | +5/-0 |
| 1＜L＜10 | +10/-0 |
| 10＜L＜40 | +15/-0 |
| 40＜L | +0.5%L/-0 |
