36 Cores G.652.D Fibers ADSS Cable 800m span

FIBERFUTURE® supply 2-288 cores double Jacket ADSS Cable for self-supporting and duct applications for cable spans 400m, 600m, 800m, up to 1000m, our ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.



We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® optical fiber ADSS cable is 2, 6, 12, 24, 36, 48, Up to 288 cores.


APPLICATIONS
indoor-note outdoor aerial duct self-supporting
Fiber Count
Fiber Type
Span
NESC

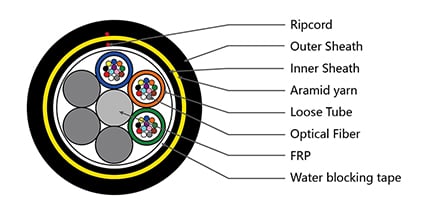

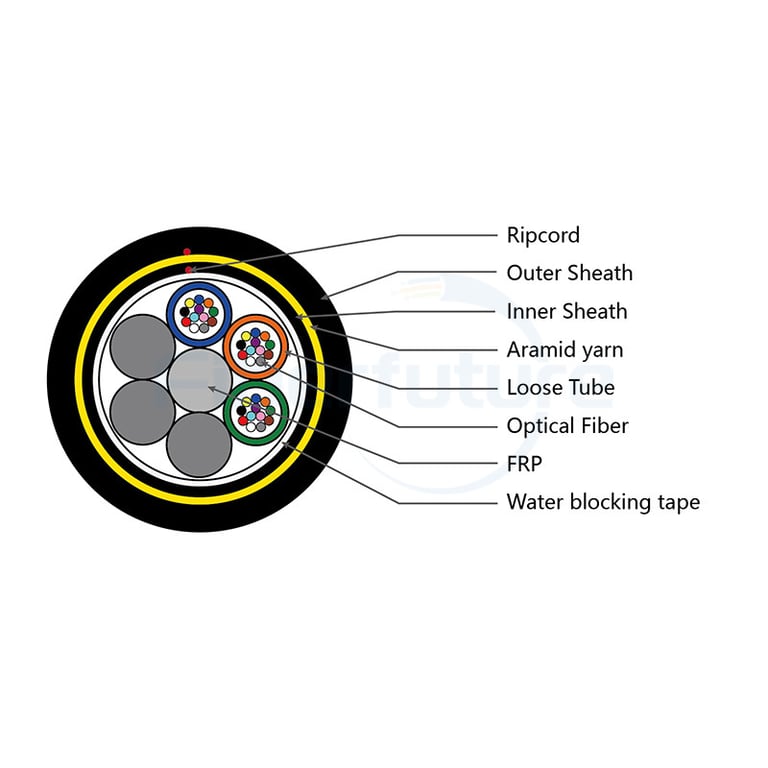

Structure Design

36-cores-g652d-fibers-adss-cable-800m-span

  •

Features and Applications

Number of fibers from 2 to 288

  • Enhanced technology enables efficient, cost-effective large-scale welding
  • Customized design by application
  • Water blocking technology makes the cable core more process-friendly
  • Increase bandwidth and carrying capacity in high-density applications
  • High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs
  • Depending on sag and load conditions, excellent performance is suitable for spans up to 1000m

Standards

  • IEC 60793, IEC60794
  • IEEE1222
  • TIA/EIA
  • ITU-T

The Color of Fiber and Loose tube

01 - Blue 02 - Orange 03 - Green
04 - Brown 05 - Slate 06 - White
07 - Red 08 - Black 09 - Yellow
10 - Violet 11 - Pink 12 - Aqua



  • If request Black and White tracer shall be applied to identify the buffer tube

Specifications

Fibers Structure Outside Diameter of Cable(mm) Weight(kg/km) KN Max. Operating Tension KN Max. Rated Tensile Strength Max. Anti-crushing Force
Long term, Short term
Bending Radius Static / Dynamic
2-30 1+6 11.9 117 4.0 15 1000; 3000 12.5D; 25D
22-36 1+6 11.9 117 4.0 15 1000; 3000 12.5D; 25D
38-60 1+6 12.4 127 4.0 15 1000; 3000 12.5D; 25D
62-72 1+6 12.4 128 4.0 15 1000; 3000 12.5D; 25D
74-84 1+7 13.0 144 4.0 15 1000; 3000 12.5D; 25D
96-96 1+8 14.0 162 4.0 15 1000; 3000 12.5D; 25D
98-108 1+9 14.7 177 4.0 15 1000; 3000 12.5D; 25D
110-120 1+10 15.5 196 4.0 15 1000; 3000 12.5D; 25D
122-132 1+11 16.1 211 4.0 15 1000; 3000 12.5D; 25D
134-144 1+12 16.7 229 4.0 15 1000; 3000 12.5D; 25D

Packing and Marking

Packing

1.1 Each single length of cable shall be reeled on Wooden Drum suitable for long distance shipment.
1.2 Covered by plastic buffer sheet.
1.3 Sealed by strong wooden battens.
1.4 At least 1 m of inside end of cable will be reserved for testing.
1.5 Drum length
1.5.1 Standard drum length is 2000-4000m
1.5.2 Single length not less than 96% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;
1.5.3 Total quantity is at least the ordered quantity.



Drum Marking
2.1 Cable drum
- Manufacturer brand;
- Roll-direction arrow;
- Cable outer end position indicating arrow;
- The word “FIBER OPTICAL CABLE”;
- Origin, The word “MADE IN CHINA”;
- Caution plate indicating the correct method for loading, unloading and convey the cable;
- Other customer information such as contract no., project no., and delivery destination. (if needed)



2.2 Marking plate
- Product name;
- Cable type and size;
- Drum length;
- Gross / Net weight in kilograms;
- Drum number in meters;
- Manufacturer's name;
- Manufacturing year and month;
- Project number, contract number or purchasing order number (if needed).
