36 Cores G.652.D Fibers ADSS Cable 200m span

FIBERFUTURE® supply 2-144 core Single Jacket ADSS Cable for self-supporting and duct applications for cable spans 50m, 80m, 100m, 120m, up to 250m, allowing an easy and cost-effective one-step installation using standard hardware and installation methods. Reduced weight design and smaller diameter allows the usage of smaller ducts.


APPLICATIONS
outdoor aerial duct self-supporting
PROTECTIONS
water-blocking crush-resistant
Fiber Count
Fiber Type
Span
NESC

Details

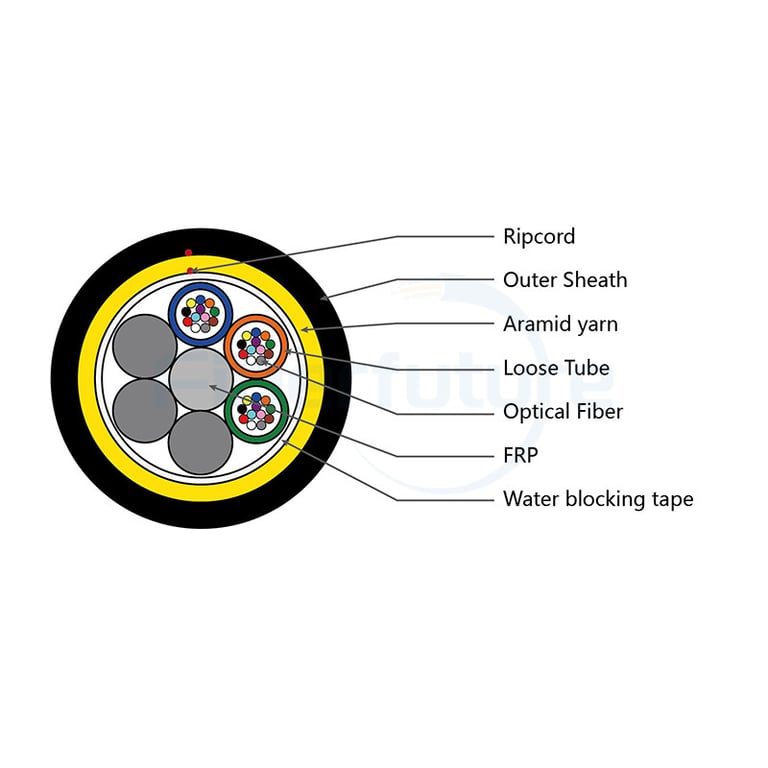

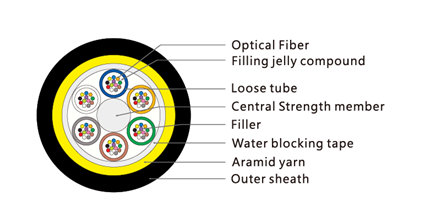

Structure Design:

 36 Cores G.652.D Fibers ADSS Cable 200m span





Features and Applications

√ High tensile strength
√ All dielectric structure and semi-dry core design
√ Small diameter and light weight
√ Self-supporting aerial installation

Standard

IEC 60794-4、 IEC 60793、TIA/EIA 598 A

Colors -12 Chromatography



01 - azul 02 - Naranja 03 - Verde
04 - Marrón 05 - Pizarra 06 - Blanco
07 - rojo 08 - Negro 09 - Amarillo
10 - violeta 11 - rosa 12 - Agua

Specifications

Optical Characteristics



G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization mode

Individual fiber

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value (M=20,Q=0.01%)

≤0.10 ps/√km

≤0.10 ps/√km

-

-

Technical Data

Item

Contents

Fibers

Fibre Count

6|12|24

48

72

96

144

288

Loose Tube

Tubes* Fbres/Tube

1x6 | 2x6
4x6

6x 8
4x12

6x12

8x12

12x12

24x12

Outer diameter (mm)

1.8

2.0

2.5

2.5

2.5

2.5

Adjustable (OEM)

1.5|2.0

1.8|2.3

2.1|2.3

2.1|2.3

2.1|2.3

2.1|2.3

Central strength member

Material

Glass Fbre Reinforced Plasticrod (GFRP)

Diameter (mm)

2.0

2.0

2.5

2.8

3.7

2.6

Adjustable (OEM)

1.8|2.3

1.8|2.3

2.5

2.8

3.7

2.6

PE coated diameter (mm)

No

4.2

7.4

4.8

Water Blocking

Material

Water blocking tape

Peripheral Strength

Material

Aramid Yarn

Outer Sheath

Thickness (mm)

1.8mm(1.5-2.0mm OEM) HDPE

Cable diameter(mm) Approx.

9.5

9.5|10

12.2

13.9

17.1

20.2

Cable diameter(mm) Adjustable (OEM)

8.0|8.5|9.0

10.5|11.0



Operating temperature range(℃)

From -40~+70

Max. span (m)

80m | 100m | 120m | 200m | 250m

Climate condition

No Ice,25m/s Max Wind Speed

MAT

Design according to customer requirements

√  Other structure and fibre count are also available according to customer requirements.

√   Cable diameter and weight in this table is typical value, which will fluctuate according to different designs

√  The span needs to be recalculated due to other climate conditions according to the installation area.



Packing and Marking

Packing

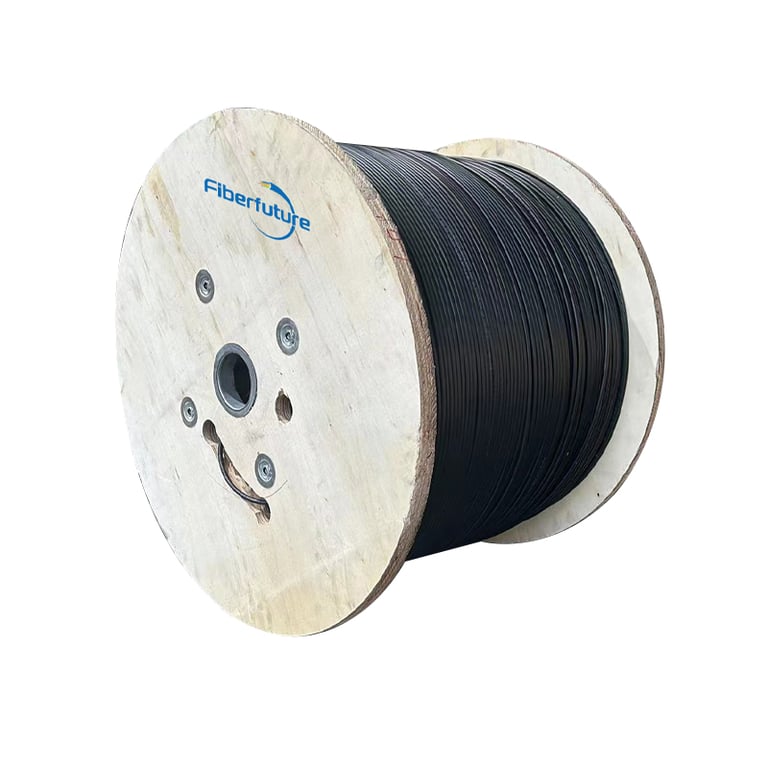

1.1 Each single length of cable shall be reeled on Wooden Drum suitable for long distance shipment.
1.2 Covered by plastic buffer sheet.
1.3 Sealed by strong wooden battens.
1.4 At least 1 m of inside end of cable will be reserved for testing.
1.5 Drum length
1.5.1 Standard drum length is 2000-4000m
1.5.2 Single length not less than 96% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;
1.5.3 Total quantity is at least the ordered quantity.



Drum Marking
2.1 Cable drum
- Manufacturer brand;
- Roll-direction arrow;
- Cable outer end position indicating arrow;
- The word “FIBER OPTICAL CABLE”;
- Origin, The word “MADE IN CHINA”;
- Caution plate indicating the correct method for loading, unloading and convey the cable;
- Other customer information such as contract no., project no., and delivery destination. (if needed)



2.2 Marking plate
- Product name;
- Cable type and size;
- Drum length;
- Gross / Net weight in kilograms;
- Drum number in meters;
- Manufacturer's name;
- Manufacturing year and month;
- Project number, contract number or purchasing order number (if needed).
