3.0mm TPU Round Drop Cable Patch Cord SCAPC-SCAPC G657A2

3.0mm TPU Round Drop Cable Patch Cord SCAPC-SCAPC G657A2

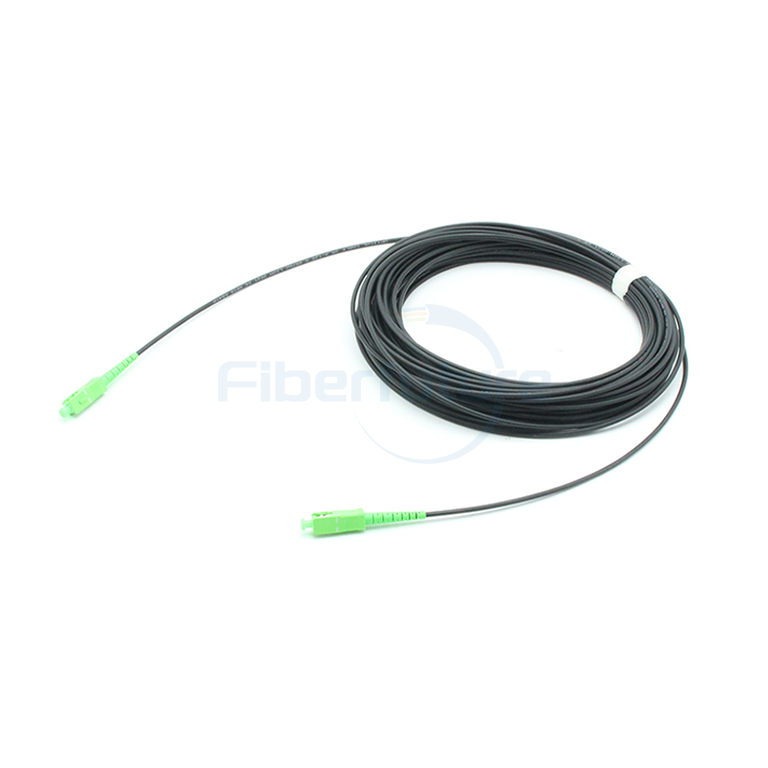

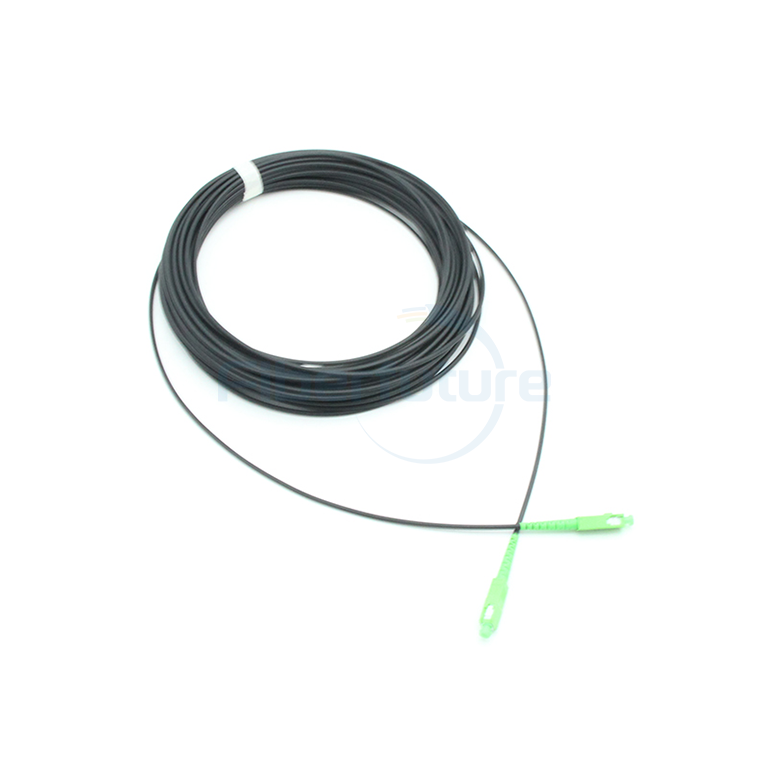

FIBERFUTURE TPU round drop cable patch cord SCAPC-SCAPC G657A2 features a 3.0mm round, high-tensile FTTH drop cable with a TPU jacket. Easy to install and access, it's ideal for direct connections to homes in FTTH projects. Commonly used between faceplates, terminal boxes, and ONU/ONT devices.

Send Email

Applications

FTTX Access Networks
Fiber Optic Communication Systems
FTTH (Fiber to the Home) Indoor Cabling Projects
Optical Fiber Connected and Transmission Equipment

Connector’s Standard

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

High quality SM ceramic ferrule, Good concentricity<0.5um

Optical Specifications

Connector	SC	Polish	APC
Fiber Mode	9/125μm, G657A2	Jacket Color	Black/White/Grey/Ivory
Cable OD	3.0mm	Wavelength	SM: 1310/1550nm
Cable Structure	Simplex	Jacket Material	TPU
Insertion Loss	≤0.3dB (IEC Grade C) ≤0.1dB (IEC Grade B)	Crush Resistance (N/100mm)	Long Term: 100 Short Term: 500
Return Loss	SM APC ≥ 60dB (min)	Interchangeability & Vibration	≤0.2dB
Tensile Strength (N)	Long Term: 200 Short Term: 450	Operation & Storage Temperature	-40~85°C

Cable Structure

3.0mm Round FTTH Drop Cable with TPU Jacket uses a simplex round structure with a 900μm tight buffer tube. It is reinforced with aramid yarn and covered with a TPU sheath, offering high strength, elasticity, wear resistance, and excellent chemical resistance against acids, alkalis, and other chemicals. Its small diameter and flexible nature make it easy to deploy and maintain, making it ideal for FTTX projects.

Cable Parameters

Number of Fiber	1F
Fiber	Type	G657B3
Fiber	Color	Blue
Tight Buffer or Semi-tight Buffer	Material	LSZH
	Color	Blue
	Diameter	0.9±0.05mm
Strength Member	Material	Aramid Yarn
Outer Sheath	Material	TPU
	Color	Black
	OD	2.9±0.1mm
Cable Weight (kg/km)	7-8 kg/km
Span	80m
Tensile Load (N)	Long Term: 260N & Short Term: 800N
Crush Resistance (N/10cm)	1000
Operation Temperature Range	-45 ~ +85°C
Installation Temperature Range	-10 ~ +60°C
Storage Temperature Range	-45 ~ +85°C
