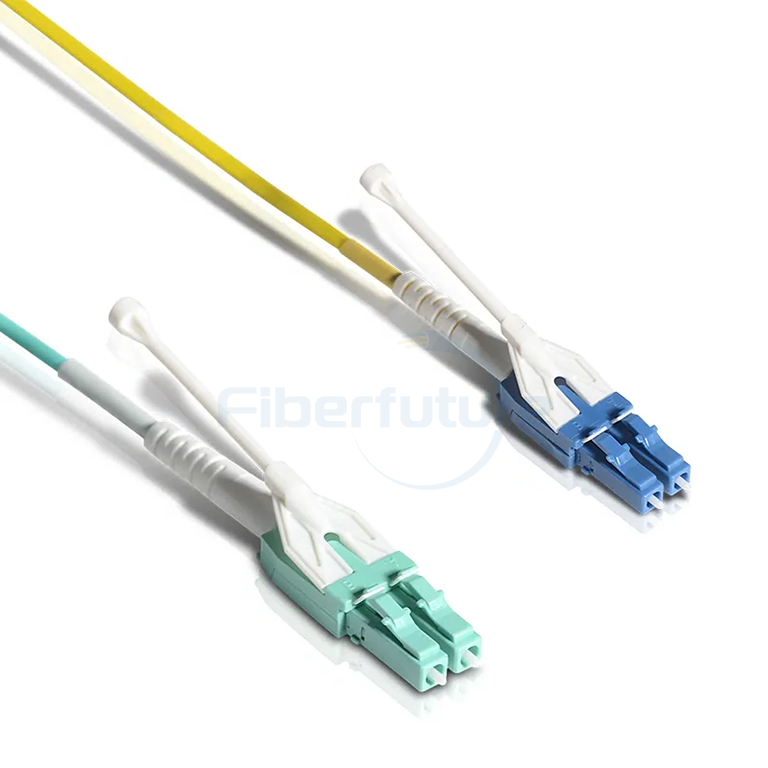

3.0mm Fiber Optic Patch Cord Push Pull Switch Polarity LC Uniboot

3.0mm Fiber Optic Push Pull Switch Polarity LC Uniboot Patch Cord

FIBERFUTURE 3.0mm fiber optic patch cord features a push-pull switch polarity mechanism for easy connection and polarity adjustment. With an LC uniboot design, it offers compactness and high-density connectivity. Ideal for data centers, it ensures low loss and high reliability, meeting industry standards for performance and safety.

Send Email

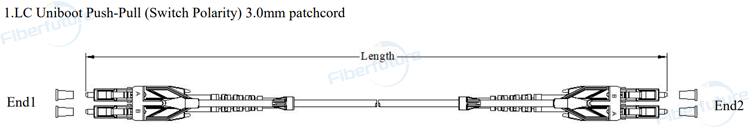

Dimensional Diagram

3.0mm Fiber Optic Patch Cord Push Pull Switch Polarity LC Uniboot

Applications

1. Data Center Connectivity
2. Campus Network Infrastructure
3. Dense Deployment Environments
4. System Interlinking Solutions
5. Cabinet to Cabinet Bridging

Features

Uniboot design with a single housing.
Unique push-pull mechanism for easy connection.
Interchangeable polarity for flexible configuration.
Low insertion and added loss for optimal performance.
High attenuation reliability.
High back loss, compact size, and lightweight.
End-face quality exceeds IEC and Telcordia standards.
LSZH, OFNP, and OFNR cable jackets.
Meets mechanical performance standards (IEC 61754-20).
Compliant with RoHS and REACH regulations.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB; Maximum≤0.30	Typical value≤0.15dB; Maximum≤0.30	IEC 61300-3-34
Return loss	≥50dB (UPC)	≥30dB (UPC)	IEC 61300-3-6

Cable Parameters

Fiber Count	OD (mm)	Nominal Weight (kg/km)	Max.Tensile Strength (N)		Max.Crush Resistance (N/100mm)		Min.Bending Radius (mm)
Fiber Count	OD (mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
2	3.0±0.15	7.5	150	80	500	150	20D	10D
