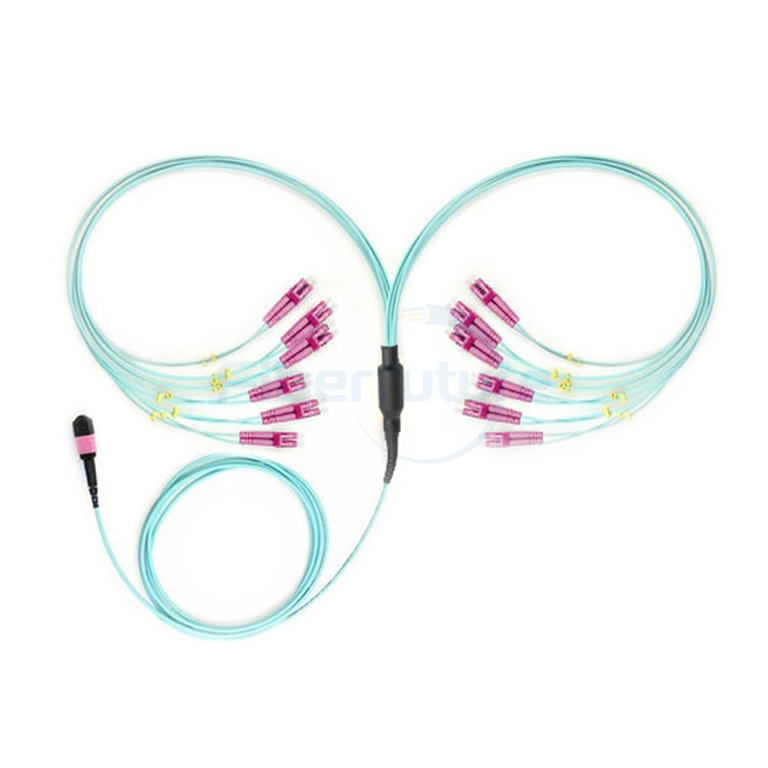

FIBERFUTURE 24-core MPO female to 12 LC duplex (12x LC uniboot; 24 LC simplex) straight harness cable assembly is optimized for direct connections from 40G QSFP+ to 10G SFP+ and high-density data center applications. With uniform length, it simplifies high-density fiber patching, reducing cable management complexity. It's designed for 10/40/100G environments, connecting (12) SFP+ ports to an MPO adapter panel and MPO trunk.
| Connector Type |
|---|
| Spec items. | Single Mode (APC 8-degree Polished) | Multimode (PC Flat Polish) |
| Insertion Loss (MPO)
(IEC 61300-3-34) |
Standard Loss: ≤0.75dB (max), ≤0.50dB (Typical)
Super Low Loss: ≤0.35dB (max), ≤0.20dB (Typical) |
Standard Loss：≤0.6dB (max), ≤0.50dB (Typical)
Super Low Loss：≤0.35dB (max) , ≤0.20dB (Typical) |
| Insertion Loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
| Return Loss (MPO) | ≥60dB（8-degree Polishing） | ≥25dB |
| Return Loss (LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dB Typical Change, 200 Matings | |
| Interchangeability | ≤0.2dB | |
| Tensile Strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
| Connector | Reference | Housing Details |
| MPO Singlemode | IEC 61754-7 | SM APC: Green Connector+Black Boot (Standard Loss MPO)
SM APC: Yellow Connector+Black boot (Super Low Loss MPO) |
| MPO Multimode | IEC 61754-7 | OM1 & OM2 PC: Beige Connector+Black Boot (Standard Loss MPO)
OM3 & OM4 PC: Aqua Connector+Black Boot (Standard & Super Low Loss MPO) OM3 & OM4 PC: Heather Violet Connector+Black Boot (Standard Loss MPO) |
IEC Straight IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5 (FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
| Fiber Count |
OD (mm) |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable
Crush Load (N/100mm) |
Minimum Bending Radius
(MM) |
| 24 | 3.0±0.15 | Short-term: 180
Long-term: 90 |
Short-term: 500
Long-term: 150 |
Static: 10D
Dynamic: 20D |
