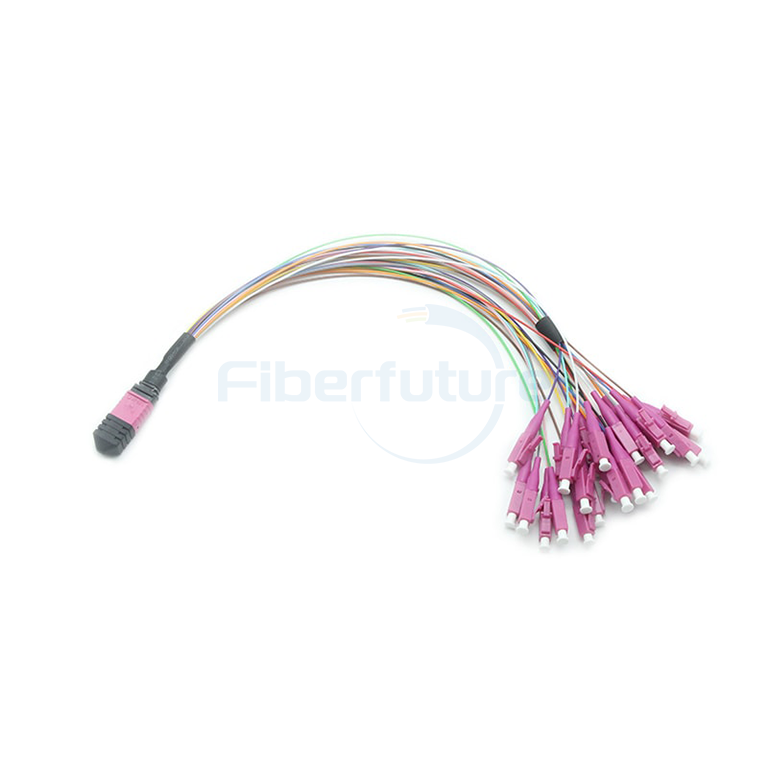

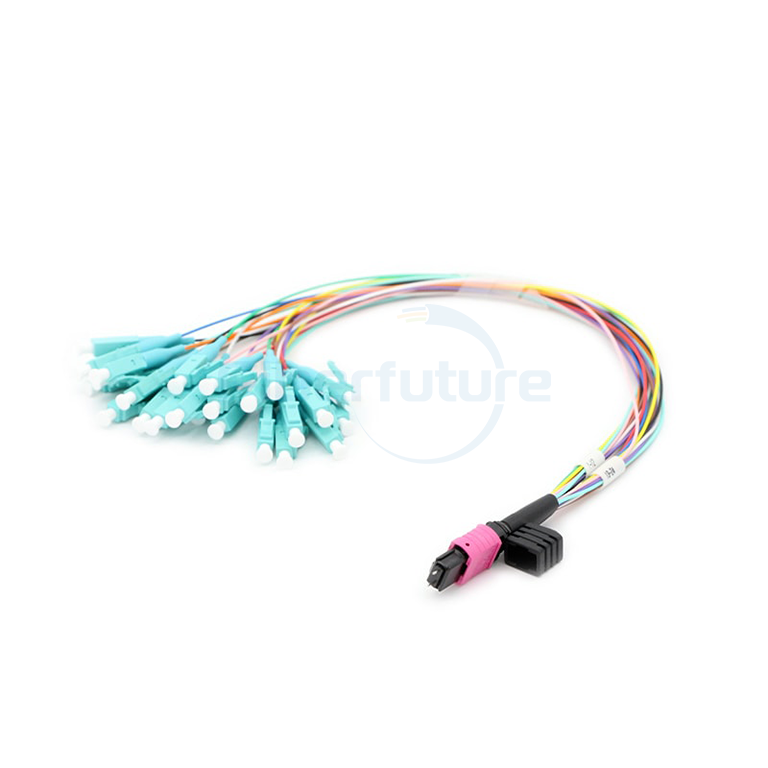

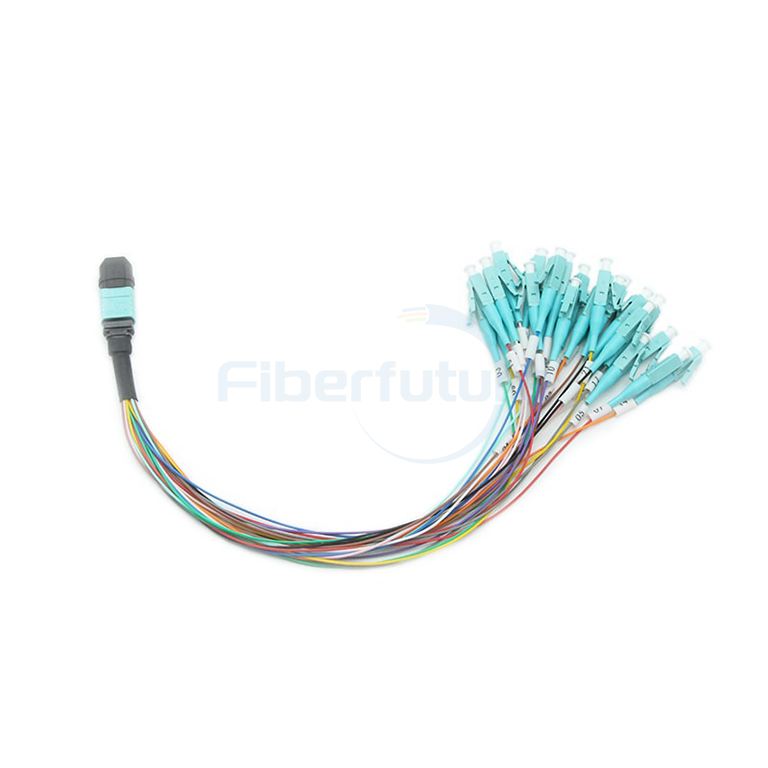

FIBERFUTURE 24-core MPO male–LC fan-out patch cable, 0.9mm, 30cm, is designed for MPO-LC LGX module cassettes, terminating in MPO and LC connectors. Ideal for 100GBASE-SR10 CXP/CFP interconnects and high-density data centers, it optimizes 10/40/100G applications, connecting 12 SFP+ ports to an MPO adapter panel or trunk.

Connector Type

Send Email

Dimensional Diagram

24F MPO-LC/SC/FC/ST Fanout Patch Cord 0.9mm

Applications

Data communication networks
Optical system access networks
Storage area networks (Fiber Channel)
High-density architectures

Features

100% pre-terminated and factory-tested for transfer performance
Low insertion loss, high return loss
MT-based multi-fiber connectors (4, 8, 12, 24 fibers)
Economical mass-termination solution
Designed for low-loss and standard-loss SM and MM applications
Ruggedized round, oval, and bare ribbon cable options
Color-coded housings for easy differentiation
Excellent repeatability and exchangeability

Connector Details

Connector

Reference

Housing Details

MPO Singlemode

IEC 61754-7

SM APC: Green Connectors+Black Boot (Standard Loss MTP)

SM APC: Yellow Connectors+Black Boot (Elite MTP)

MPO Multimode

IEC 61754-7

OM1 & OM2 PC: Beige Connectors+Black Boot (Standard Loss MPO)

OM3 & OM4 PC: Aqua Connectors+Black Boot (Standard & Super low loss MPO)

OM3 & OM4 PC: Heather Violet Connectors+Black Boot (Standard loss MPO)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant

Specifications

Spec Items.	Single Mode (APC 8-degree Polished)	Multimode (PC Flat Polish)
Insertion Loss (MTP) (IEC 61300-3-34)	Standard MTP：≤0.75dB(max), ≤0.35dB (Typical) Elite MTP：≤0.35dB(max), ≤0.20dB (Typical)	Standard MTP: ≤0.6dB (max), ≤0.35 (Typical) Elite MTP: ≤0.35dB (max), ≤0.20dB (Typical)
Insertion Loss (LC/SC/FC/ST) (IEC 61300-3-6)	≤0.3dB	≤0.3dB
Return Loss (MPO)	≥60dB (8-degree Polishing)	≥25dB
Return Loss(LC/SC/FC/ST)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dB Typical Change, 200 Matings
Interchangeability	≤0.2dB
Tensile Strength	>70N
Operating Temperature	-40 to + 85°C
