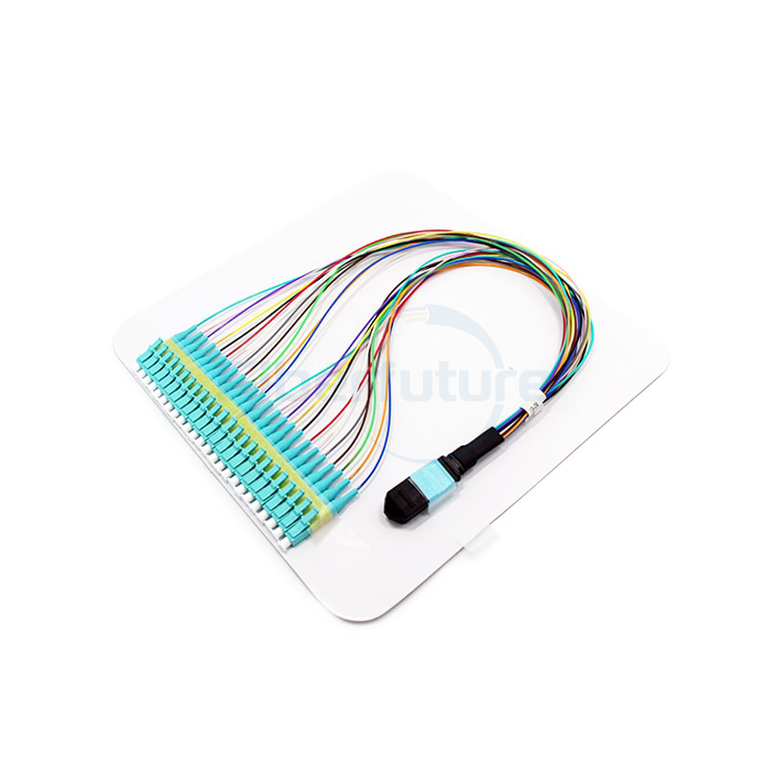

24 Cores MTP LC Fanout Cable 0.9mm

FIBERFUTURE MPO/MTP 0.9mm fiber optic patch cords are designed for high-density data center applications, offering reliable multimode connectivity with precision-polished contacts, ideal for fan-out applications in server racks and patch panels.

Connector Type

Send Email

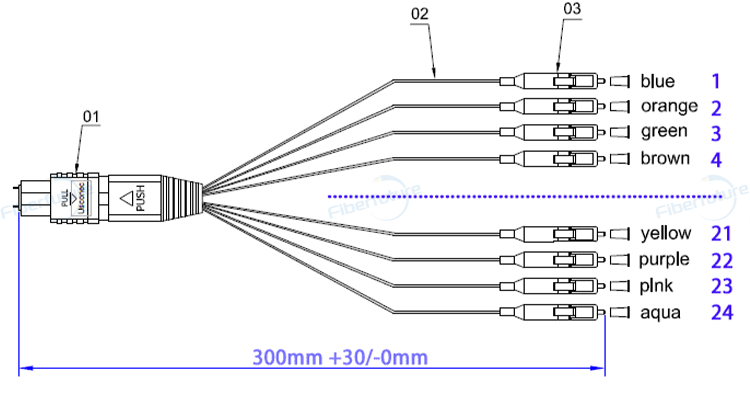

Dimensional Diagram

24 Cores MTP LC Fanout Cable 0.9mm

Applications

Data Communication Networks
Optical System Access Networks
Storage Area Networking (Fiber Channel)
High-Density Architectures

Features

100% pre-terminated and factory-tested for reliable transfer performance
Low insertion loss, high return loss
MT-based multi-fiber connectors available in 4, 8, 12, and 24-fiber configurations
Cost-effective solution for mass fiber termination
Designed for low-loss and standard-loss SM and MM applications
Options include ruggedized round, oval cables, and bare ribbons
Color-coded housings for easy differentiation of fiber type, polish, and connector grade
Excellent repeatability and interchangeability

Connector Details

Connector	Reference	Housing Details

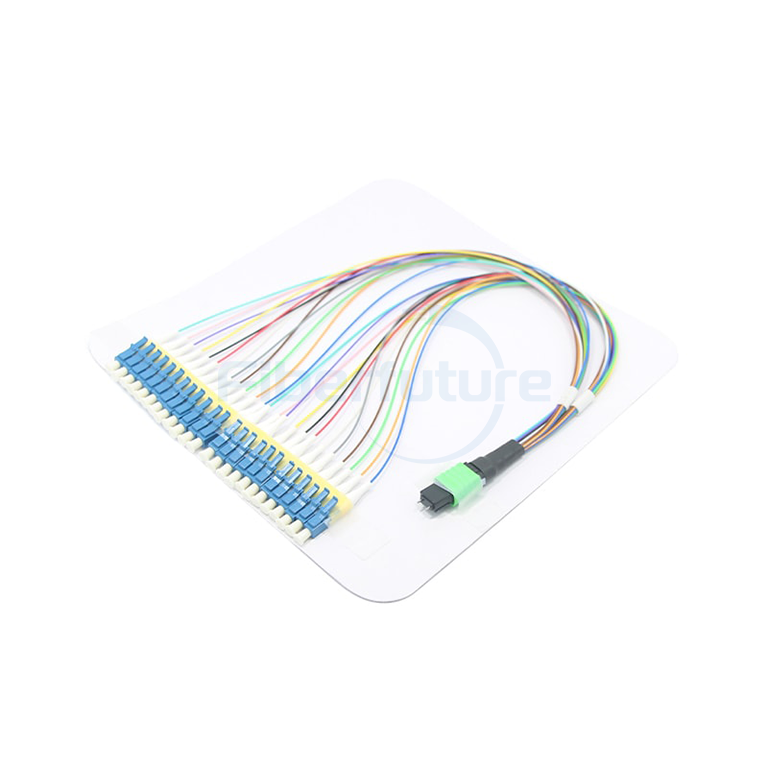

MTP Singlemode	IEC 61754-7	SM APC: Green Connectors+Black Boot (Standard Loss MTP) SM APC: Yellow Connectors+Black Boot (Elite MTP)

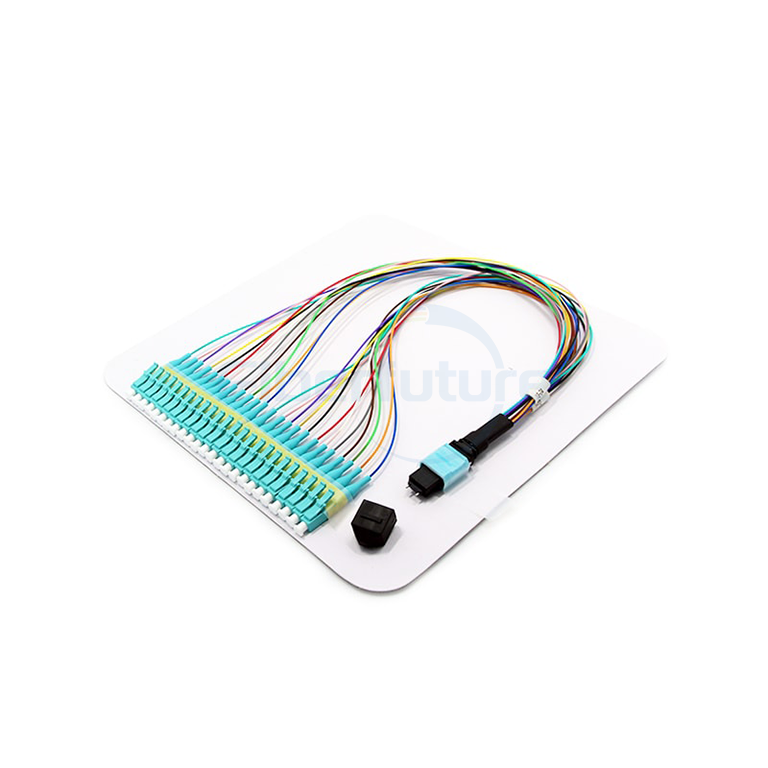

MTP Multimode	IEC 61754-7	OM3 & OM4 PC: Aqua Connectors+Black Boot (Standard Loss & Elite MTP)

Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant

Specifications

Spec Items.	Single Mode (APC 8-degree Polished)	Multimode (PC Flat Polish)
Insertion Loss (MTP) (IEC 61300-3-34)	Standard MTP：≤0.75dB(max), ≤0.35dB (Typical) Elite MTP：≤0.35dB(max), ≤0.20dB (Typical)	Standard MTP: ≤0.6dB (max), ≤0.35 (Typical) Elite MTP: ≤0.35dB (max), ≤0.20dB (Typical)
Insertion Loss (LC/SC/FC/ST) (IEC 61300-3-6)	≤0.3dB	≤0.3dB
Return Loss (MTP)	≥60dB (8-degree Polishing)	≥25dB
Return Loss(LC/SC/FC/ST)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dB Typical Change, 200 Matings
Interchangeability	≤0.2dB
Tensile Strength	>70N
Operating Temperature	-40 to + 85°C
