24 Cores G.652.D Fibers ADSS Cable 600m span

24 Cores G.652.D Fibers ADSS Cable 600m span

FIBERFUTURE® supply 2-288 cores double Jacket ADSS Cable for self-supporting and duct applications for cable spans 400m, 600m, 800m, up to 1000m, our ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® optical fiber ADSS cable is 2, 6, 12, 24, 36, 48, Up to 288 cores.

APPLICATIONS

Fiber Count
Fiber Type
Span
NESC

Send Email

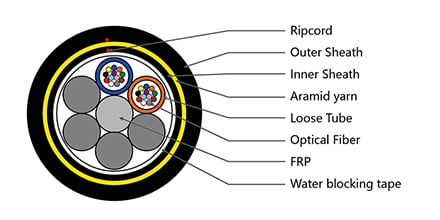

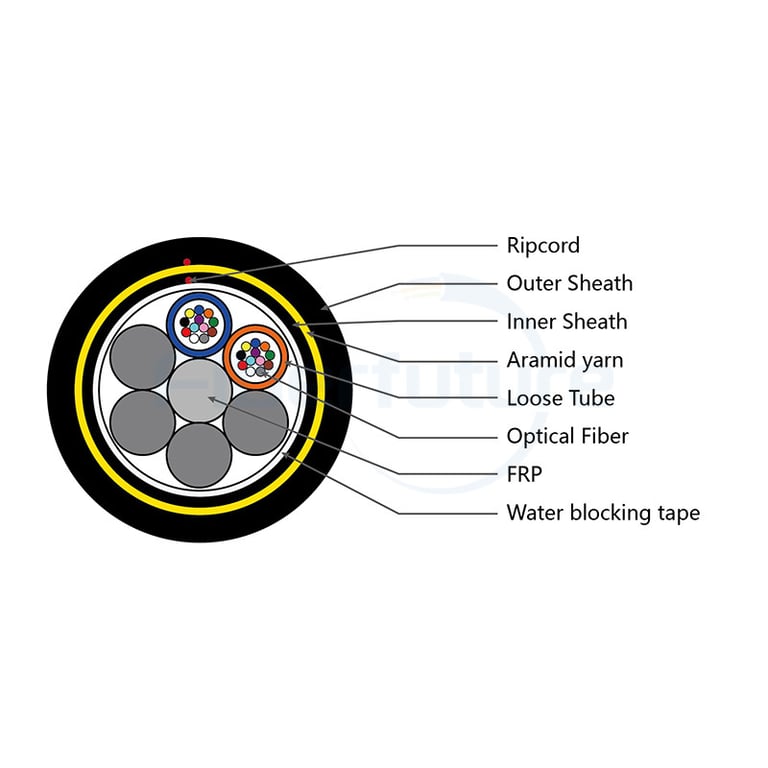

Structure Design

24 cores g652d fibers adss cable 600m span

Main Features

Number of fibers from 2 to 288

Enhanced technology enables efficient, cost-effective large-scale welding
Customized design by application
Water blocking technology makes the cable core more process-friendly
Increase bandwidth and carrying capacity in high-density applications
High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs
Depending on sag and load conditions, excellent performance is suitable for spans up to 1000m

Standards

IEC 60793, IEC60794
IEEE1222
TIA/EIA
ITU-T

The Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

If request Black and White tracer shall be applied to identify the buffer tube

Specification

Span(m)	Fiber count	Thickness of outer jacket (mm)	Outer jacket material	Cable diameter(mm)	MAT(KN)	Voltage	Crush Short term	Min. bending radius		Wind speed	Ice cover
Span(m)	Fiber count	Thickness of outer jacket (mm)	Outer jacket material	Cable diameter(mm)	MAT(KN)	Voltage	Crush Short term	Static	Dynamic	Wind speed	Ice cover
200	24 core	1.8±0.1mm	HDPE	12.2	3.77	≤35KV	1000N/100mm	10 times cable diameter	20 times cable diameter	25m/s	0
300			HDPE	12.3	5.33		1000N/100mm
400			HDPE	12.5	7.06		1000N/100mm
500			HDPE	12.9	9.02		1000N/100mm
600			HDPE	13	10.5		1000N/100mm
700			HDPE	13.2	11.97		1000N/100mm
800			HDPE	13.4	13.94		1000N/100mm
900			HDPE	13.5	15.41		1000N/100mm
1000			HDPE	13.7	17.37		1000N/100mm
1500			HDPE	15.5	25.8		1000N/100mm

Packing and Marking

Packing

1.1 Each single length of cable shall be reeled on Wooden Drum suitable for long distance shipment.
1.2 Covered by plastic buffer sheet.
1.3 Sealed by strong wooden battens.
1.4 At least 1 m of inside end of cable will be reserved for testing.
1.5 Drum length
1.5.1 Standard drum length is 2000-4000m
1.5.2 Single length not less than 96% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;
1.5.3 Total quantity is at least the ordered quantity.

Drum Marking
2.1 Cable drum
- Manufacturer brand;
- Roll-direction arrow;
- Cable outer end position indicating arrow;
- The word “FIBER OPTICAL CABLE”;
- Origin, The word “MADE IN CHINA”;
- Caution plate indicating the correct method for loading, unloading and convey the cable;
- Other customer information such as contract no., project no., and delivery destination. (if needed)

2.2 Marking plate
- Product name;
- Cable type and size;
- Drum length;
- Gross / Net weight in kilograms;
- Drum number in meters;
- Manufacturer's name;
- Manufacturing year and month;
- Project number, contract number or purchasing order number (if needed).
