24 Cores Fiber Distribution Box with IP66 Protection Level

24 Cores Optical Fiber Distribution Box Manufacturer with IP66 Protection Level

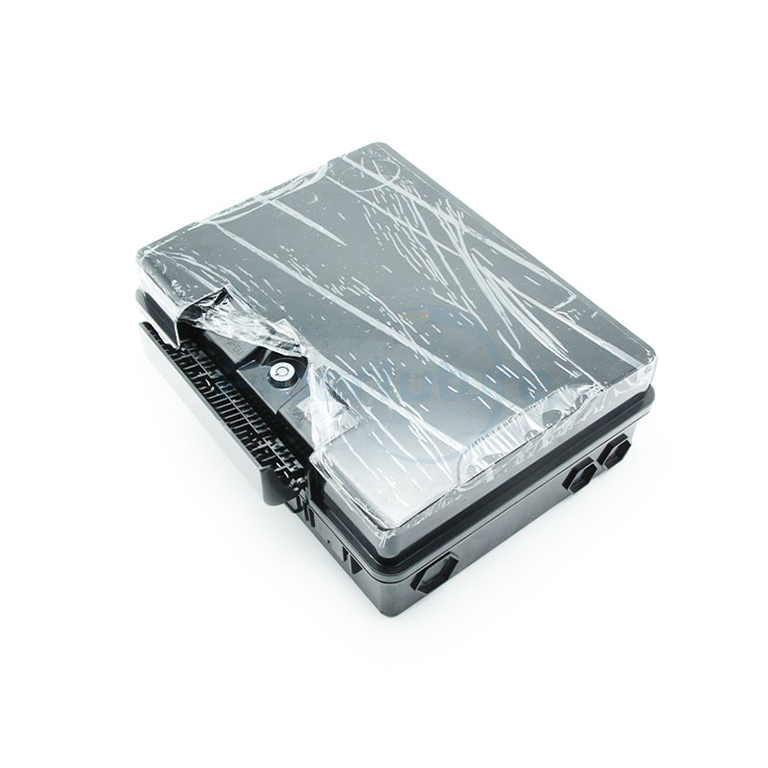

FIBERFUTURE 24 cores fiber distribution box features an IP66 protection level, ensuring dust-tight and water-resistant performance. Designed for reliable outdoor fiber optic management, it supports up to 24 cores, offering secure cable termination and splicing with excellent environmental protection. Ideal for robust network installations requiring durability and protection.

Send Email

Features

Water-proof design with IP66 protection

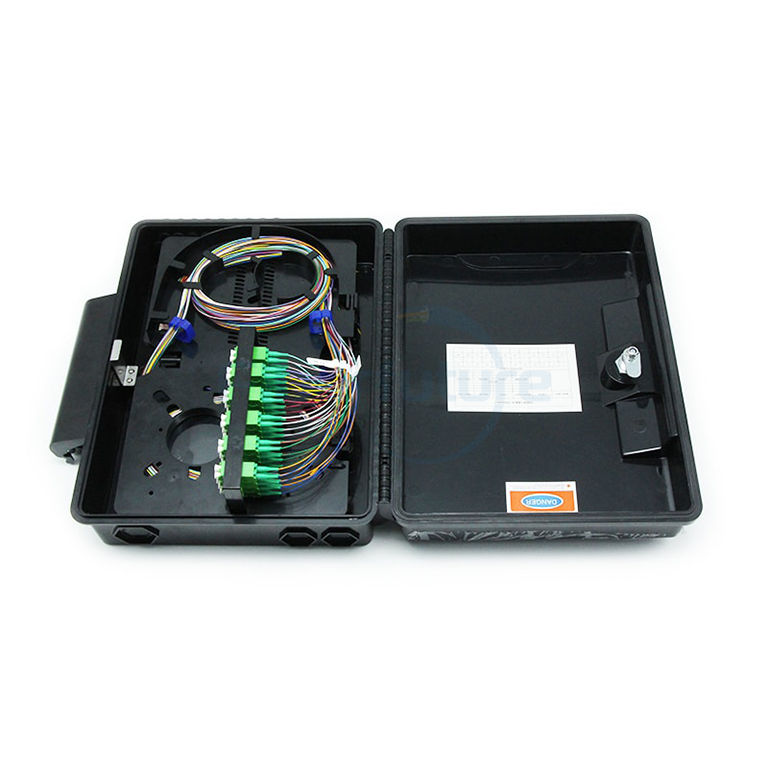

Integrated splice cassette and cable management rods
Maintains optimal fiber radius
Easy maintenance and capacity extension
Fiber bend radius over 40mm
Supports fusion and mechanical splicing
Optional 1×2/1×4/1×8/1×16 splitters
Efficient cable management
Entrance cable OD: 7-10mm
24-port distribution for 2-4mm drop cables
Wall and pole mountable

Applications

For applications without splitters: Max. 24 cores with SC adapters
With splitters: Supports 1×16 and 1×32 module splitters
For tray-type splitters: Supports 1×8 splitter applications

Working Environmental Conditions

Working Temperature	-40°C+60°C
Relative Humidity	≤93%(at +40°C)
Atmospheric Pressure	62kpa~101kpa (Approximate elevation0~5000m)
Insert Loss	≤0.35dB
Return Loss	≥50dB
Plug Durability	>1000 Times
Insulation Resistance	≥1000MΩ/500v (DC)
Grounding Resistance	>3000V (DC)/1min without Breakdown, Flashover

Specification

Model No	FDB-24C
Dimension (L×W×H)	340mm×250mm×110mm
Function	Cable Termination; Optical Light Split; Fiber Access
Adaptor Type	SC, LC, FC
Material	ABS/PC+ABS
IP Grade	IP66
Max Ratio	1:16 (SC) and 1:32 (LC)
Installation Method	Wall Mount and Pole Mount
Max Capacity (F)	Splice 108F; PLC Splitter 1×32 Max

Accessories

Screw: 4mm*40mm	4pcs
Expansion Bolt: M6	4pcs
Electrical Adhesive Tape: 5M	1pcs
Cable Tie: 3mm*10mm	12pcs
Bare Cable Protect Tube	0.5M
Heat-Shrink Sleeve: 1.0mm*3mm 60mm	24pcs
