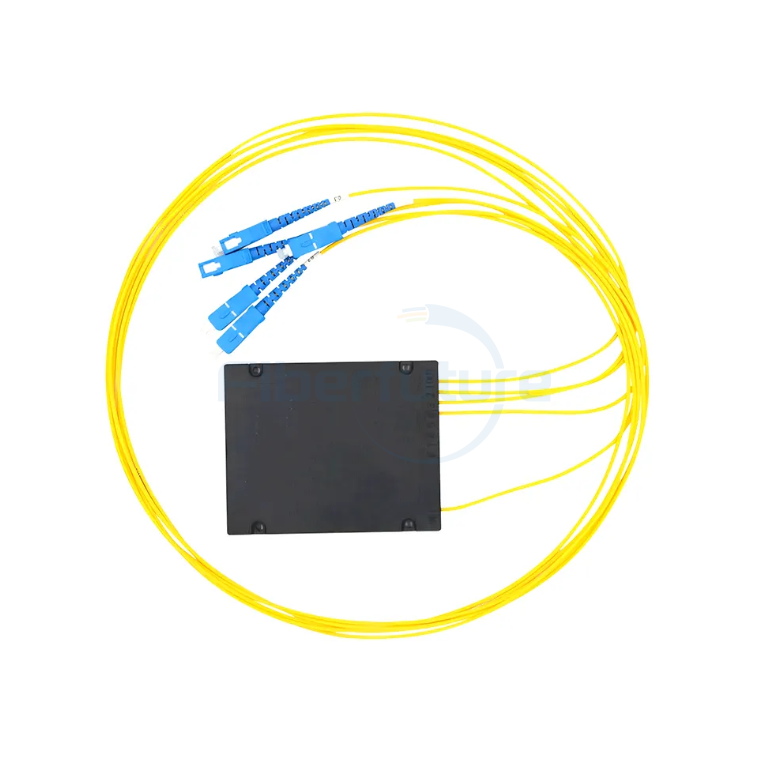

FIBERFUTURE 1×4 ABS box single mode FBT fiber optic splitter uses fused biconical taper technology to divide incoming light into four outputs with customizable ratios. Designed for single-mode fibers, it supports a range of connector types including LC, SC, FC, and ST, or can be supplied unconnectorized. Available in 900µm loose tube and 250µm bare fiber configurations, this splitter is housed in a protective plastic enclosure to ensure durability. Ideal for FTTH, PON, and CATV applications where reliable signal distribution is critical.
Customizable coupling ratios.
Low crosstalk and minimal excess loss.
High optical return loss.
Dual or triple wavelength operation.
Optional connector terminations (SC, FC, LC, ST, custom).
Compatible with 250µm/900µm fiber, 2mm or 3mm buffer.
Splits 1310nm or 1550nm signals.
Equal 25:25:25:25 coupling ratio.
±40nm bandwidth per center wavelength.
Various fiber cable diameters available.
FTTH, LAN, PON, Optical CATV.
Local ring networks, fiber communication systems.
Fiber test equipment, fiber sensors.
| Input & Output | Optical Splitter 4 in 1 out | ||||||||
| Fiber Type | 9/125 SMF-28 or Customer Specified | ||||||||
| Operating Wavelength (nm) | 1310, 1490, 1550nm | ||||||||
| Coupling Ration (%) | 1-50% | ||||||||
| Bandwidth (nm) | ±20nm | ||||||||
| Coupling Ratio (%) | 3.3 dB(50/50), 4.3/2.5 dB(40/60) | ||||||||
| Thermal Stability | ≤0.3 (dB /℃) | ||||||||
| Directivity (dBm) | ≥55 dB(≥60dB 2×2) | ||||||||
| Package Type | Bare Fiber | ||||||||
| 0.9/2.0/3.0mm loose tube | |||||||||
| connector type: FC/APC, FC/PC, SC/APC, SC/PC, all is optional | |||||||||
| Operating Temperature (℃) | -40 ～ 70 | ||||||||
| Storage Temperature (℃) | -40 ～ 85 | ||||||||
| Package Dimensions (mm) | Φ3×54mm, 90×20×10mm, 90×20×10 | ||||||||
| Fiber Connector | SC, FC, ST, LC Connectors (PC, UPC, APC) | ||||||||
| Brand | FIBERFUTURE/OEM | ||||||||
| Delivery Time | Normally 25 days after received the deposit. | ||||||||
| MOQ | 20pcs | ||||||||
| Parameter | Wide Band Coupler | Dual Window Couplex | Multimode Fiber Coupler | ||||||
| Grade | 1 | 2 | 1 | 2 | 1 | 2 | |||
| Operating Wavelength (mm) | 1310,1550 or C + L Band | 1310 and 1550 | 850 or 1310 or Specify | ||||||
| Operating Bandwidth (mm) | ±40 | ±40 | ±40 | ||||||
| Typical Excess Loss (dB) | <0.7 | <0.1 | <0.07 | <0.1 | <0.4 | <0.7 | |||
| Insertion Loss (dB) | 50/50 | <3.4 | <3.6 | <3.4 | <3.6 | <3.7 | <4.0 | ||
| 40/60 | <4.4/2.6 | <47/2.8 | <4.4/2.6 | <4.7/2.8 | <4.7/2.7 | <5.0/3.0 | |||
| 30/70 | <57/1.9 | <6.0/2.0 | <5.7/1.9 | <6.0/2.0 | <6.0/2.1 | <6.3/2.4 | |||
| 20/80 | <7.6/1.25 | <8.0/1.3 | <7.6/1.25 | <8.0/1.3 | <7.8/1.4 | <1/1.7 | |||
| 10/90 | <10.65/0.65 | <10.9/0.08 | <10.65/0.65 | <10.9/0.8 | <11.2/0.9 | <11.6/1.2 | |||
| 5/95 | <13.8/0.4 | <14.1/0.5 | <13.8/0.4 | <14.1/0.5 | <14.5/0.7 | <15.0/1.0 | |||
| 3/97 | <16.15/0.3 | <16.5/0.4 | <16.15/0.3 | <16.5/0.4 | <16.15/0.3 | <16.5/0.4 | |||
| 2/98 | <18.05/0.25 | <18.45/0.35 | <18.05/0.25 | <18.45/0.3 | <18.6/0.6 | <19.4/0.9 | |||
| 1/99 | <21.15/0.2 | <21.65/0.3 | <21.15/0.2 | <21.65/0.3 | <22/0.5 | <22.8/0.8 | |||
| Polarization Dependent Loss | <0.1 | <0.15 | <0.17 | <0.15 | |||||
| Directivity (dB) | >50 | >35 | |||||||
| Operating Temperature (℃) | -40~+70 | ||||||||
| Storage Temperature (℃) | -40~+85 | ||||||||
| Notice: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector. | |||||||||
