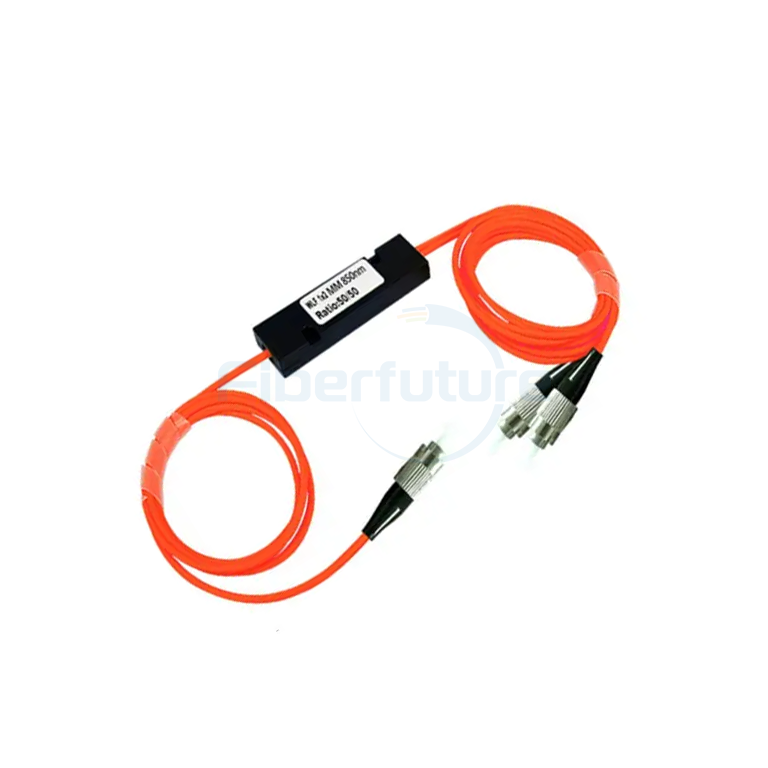

FIBERFUTURE 1X2 ABS box FBT fiber optic splitter utilizes fused biconical taper technology to precisely split optical signals into two outputs with customizable ratios. Suitable for single-mode and multimode fibers, it features a variety of connector options including LC, SC, FC, or can be supplied unconnectorized. Available in 900µm loose tube and 250µm bare fiber configurations, this splitter comes standard with a protective metal sleeve for durability and reliability. Ideal for telecom networks, CATV systems, and FTTH applications.
Various coupling ratio options.
Minimal crosstalk and low insertion loss.
High optical return loss performance.
Supports dual or triple wavelength operations.
Customizable connector terminations available upon request.
Compatible with 250µm and 900µm fiber, in 2mm or 3mm buffer tubing.
Operational at 850nm, 1310nm, or both wavelengths.
Connector choices include SC, FC, LC, ST, or custom types.
Protected by a robust plastic module enclosure.
Supplied in various fiber cable diameters to meet diverse needs.
Fiber-to-the-Home (FTTH), Local Area Networks (LAN), Passive Optical Networks (PON), and Optical CATV systems.
Local ring networks and optical fiber communication systems.
Optical testing equipment and fiber optic sensors.
| Input & Output | 1 to 2 Multimode Fiber Optic Splitter | ||||||||
| Fiber Type | 9/125 SMF-28 or Customer Specified | ||||||||
| Operating Wavelength (nm) | 850/1310nm | ||||||||
| Coupling Ration (%) | 1-50% | ||||||||
| Bandwidth (nm) | 20nm | ||||||||
| Typical Insertion Loss (dB) | ≤3.2 | ||||||||
| Polarization Dependent Loss (dB) | ≤0.1 | ||||||||
| Homogeneity (dB) | ≤0.9 | ||||||||
| Directivity (dBm) | ≥60 | ||||||||
| Uniformity (dB) | 0.5 | ||||||||
| Typical Dependent Loss (dB) | ≤0.15 | ||||||||
| Temperature Stability (dB/ºC) | ≤0.002 | ||||||||
| Operating Temperature (℃) | -40～70 | ||||||||
| Storage Temperature (℃) | -40～85 | ||||||||
| Fiber Cable | bare fiber, loose tube fiber, 2mm ABS fiber | ||||||||
| Fiber Connector | SC FC LC ST | ||||||||
| Brand | FIBERFUTURE OR OEM | ||||||||
| Delivery Time | Normally 25 Days after Received the Deposit. | ||||||||
| MOQ | 50pcs | ||||||||
| Parameter | Wide Band Coupler | Dual Window Couplex | Multimode Fiber Coupler | ||||||
| Grade | 1 | 2 | 1 | 2 | 1 | 2 | |||
| Operating Wavelength (mm) | 1310, 1550 or C + L Band | 1310 and 1550 | 850 or 1310 or Specify | ||||||
| Operating Bandwidth (mm) | ±40 | ±40 | ±40 | ||||||
| Typical Excess Loss (dB) | <0.7 | <0.1 | <0.07 | <0.1 | <0.4 | <0.7 | |||
| Insertion Loss (dB) | 50/50 | <3.4 | <3.6 | <3.4 | <3.6 | <3.7 | <4.0 | ||
| 40/60 | <4.4/2.6 | <47/2.8 | <4.4/2.6 | <4.7/2.8 | <4.7/2.7 | <5.0/3.0 | |||
| 30/70 | <57/1.9 | <6.0/2.0 | <5.7/1.9 | <6.0/2.0 | <6.0/2.1 | <6.3/2.4 | |||
| 20/80 | <7.6/1.25 | <8.0/1.3 | <7.6/1.25 | <8.0/1.3 | <7.8/1.4 | <1/1.7 | |||
| 10/90 | <10.65/0.65 | <10.9/0.08 | <10.65/0.65 | <10.9/0.8 | <11.2/0.9 | <11.6/1.2 | |||
| 5/95 | <13.8/0.4 | <14.1/0.5 | <13.8/0.4 | <14.1/0.5 | <14.5/0.7 | <15.0/1.0 | |||
| 3/97 | <16.15/0.3 | <16.5/0.4 | <16.15/0.3 | <16.5/0.4 | <16.15/0.3 | <16.5/0.4 | |||
| 2/98 | <18.05/0.25 | <18.45/0.35 | <18.05/0.25 | <18.45/0.3 | <18.6/0.6 | <19.4/0.9 | |||
| 1/99 | <21.15/0.2 | <21.65/0.3 | <21.15/0.2 | <21.65/0.3 | <22/0.5 | <22.8/0.8 | |||
| Polarization Dependent Loss | <0.1 | <0.15 | <0.17 | <0.15 | |||||
| Directivity (dB) | >50 | >35 | |||||||
| Operating Temperature (℃) | -40~+70 | ||||||||
| Storage Temperature (℃) | -40~+85 | ||||||||
| Notice: Above specifications are for devices without connector. Add an additional 0.2dB loss per connector. | |||||||||
