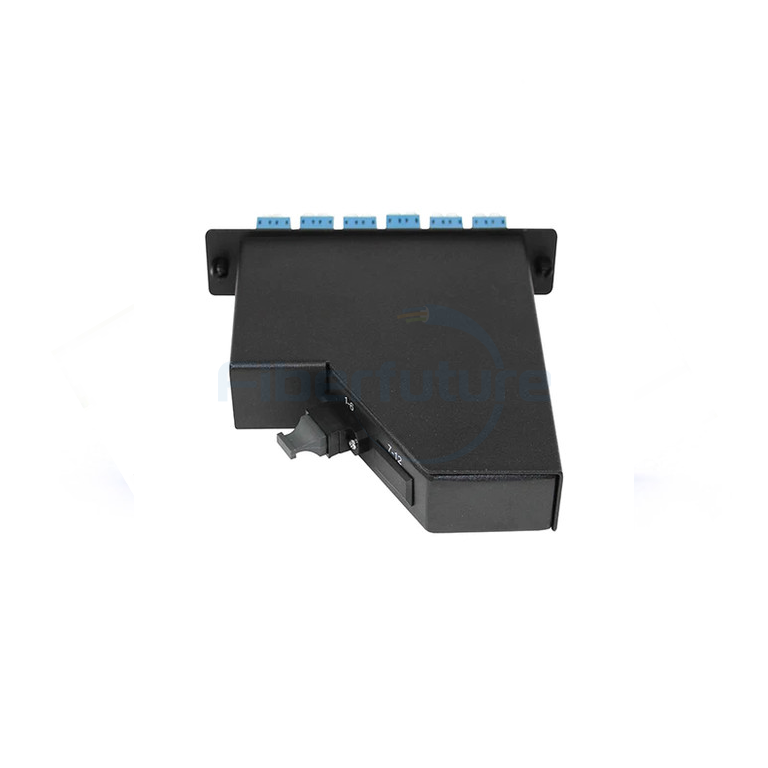

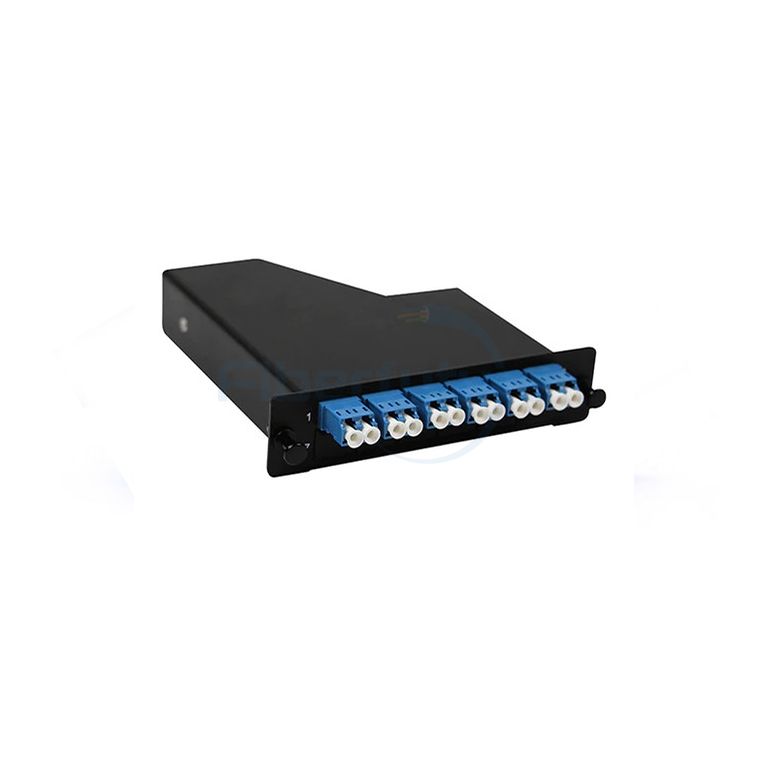

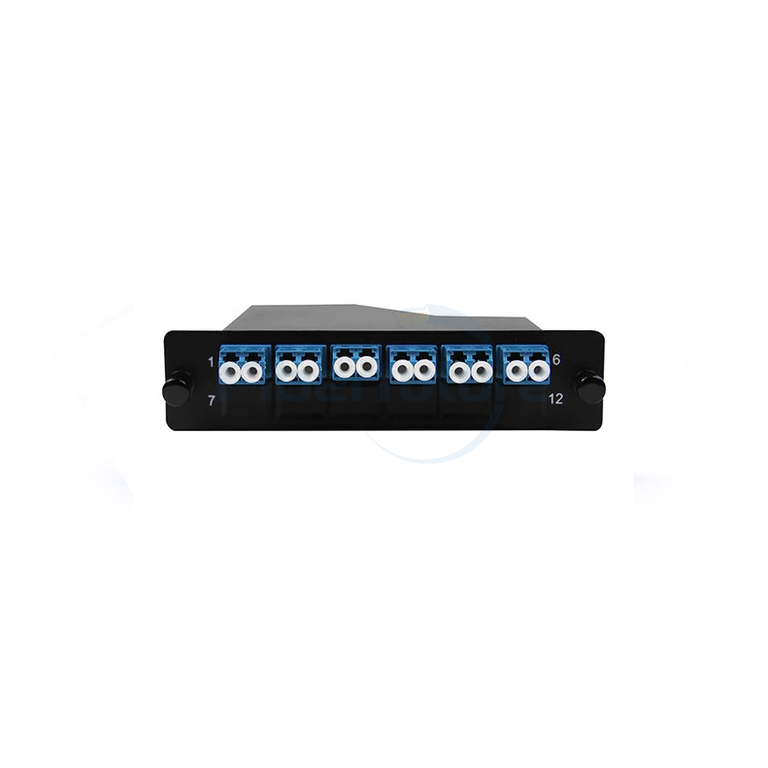

FIBERFUTURE MPO & MTP Cassettes come in versatile configurations, notably MPO-LC options that support 12 or 24 fiber arrangements. They are compatible with OS2, OM3, and OM4 optical fiber types. Polarity management is facilitated through straight and pair-flipped wiring schemes, ensuring adaptable and efficient network setups.
Telecommunication Distribution Loops
Fiber Optic Networks for Residential Access (FTTH)
Local and Wide Area Networking (LAN/WAN)
Cable Television Networks (CATV)
Additional Deployments Within Fiber Optic Infrastructures
Conforms to standard dimensions, exhibits light weight, and possesses a well-designed structure.
Boasts a compact design optimized for space conservation.
Plates feature front-facing markings for simplified identification and handling.
Facilitates straightforward management and operational ease.
Capable of supporting high-speed 40G and 100G network applications.
Demonstrates high dependability and robust performance.
Maintains outstanding stability across varying environmental conditions.
| Projects | Parameter |
| Operating temperature | -25℃~+40℃ |
| Storage temperature | -25℃~+55℃ |
| Relative humidity | ≤85％(+30℃) |
| Color | Black |
| Max. Capacity | Max. Capacity 12 or 24 port (LC) |

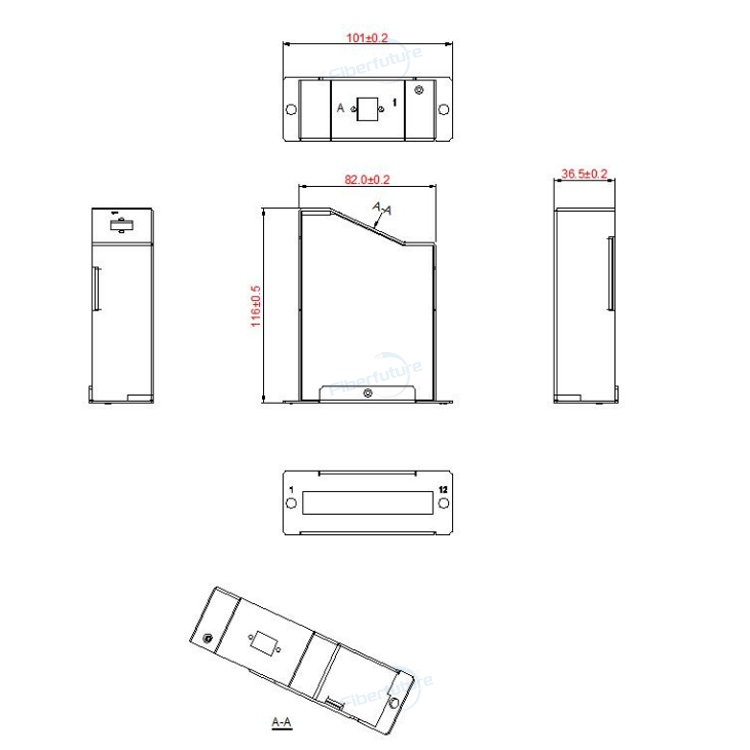

| Dimension (LxWxH) | 116mmx 101mmx36.5mm |
| Performance Level | Standard | Elite | |||
| Connector | Cable | IL (max) | RL (max) | IL (max) | RL(max) |
| MPO/MTP | OM4 | ≦0.70dB | ≧20dB | ≦0.35dB | ≧20dB |
| LC | ≦0.20dB | ≧30dB | ≦0.10dB | ≧30dB | |
