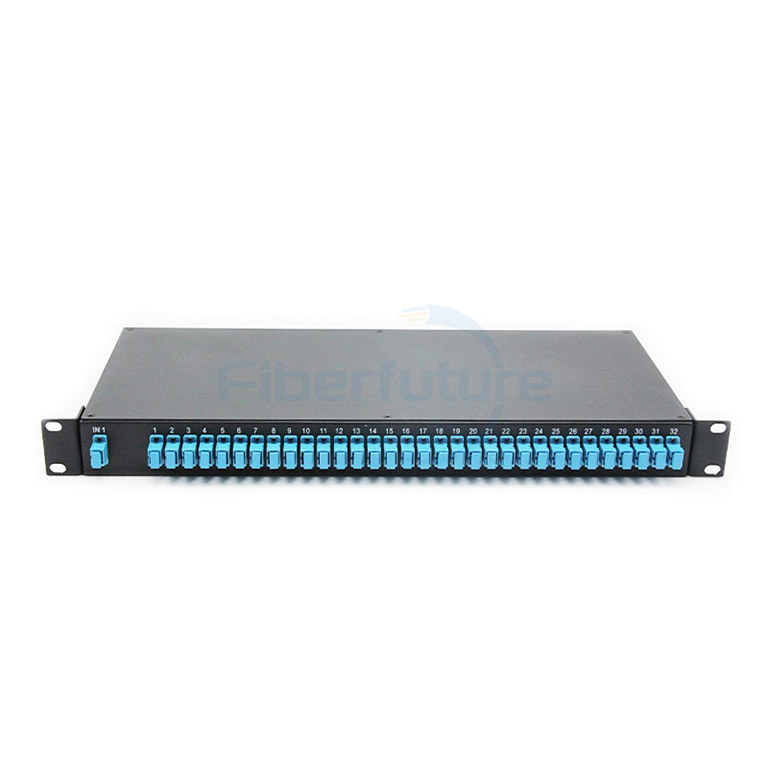

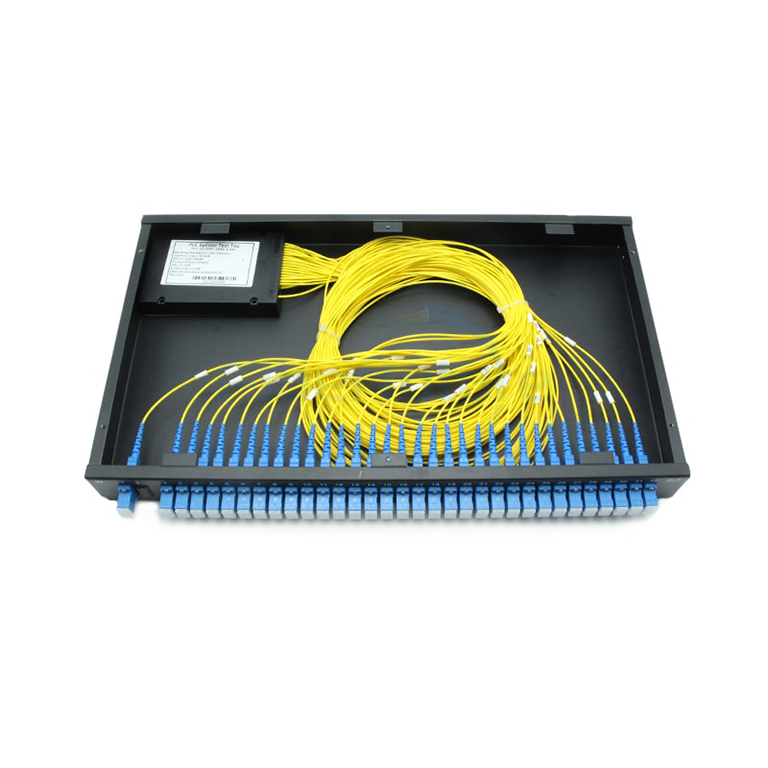

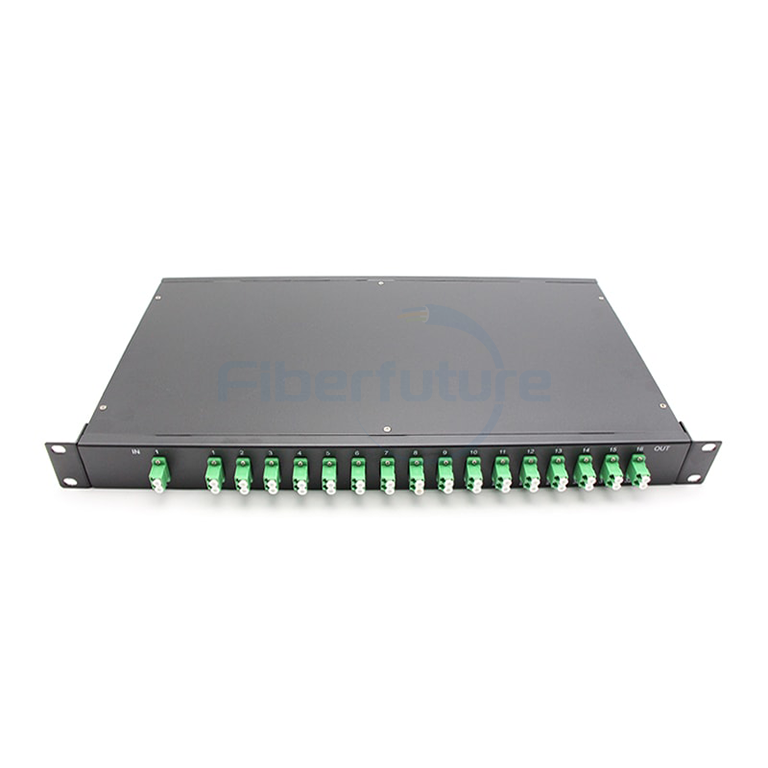

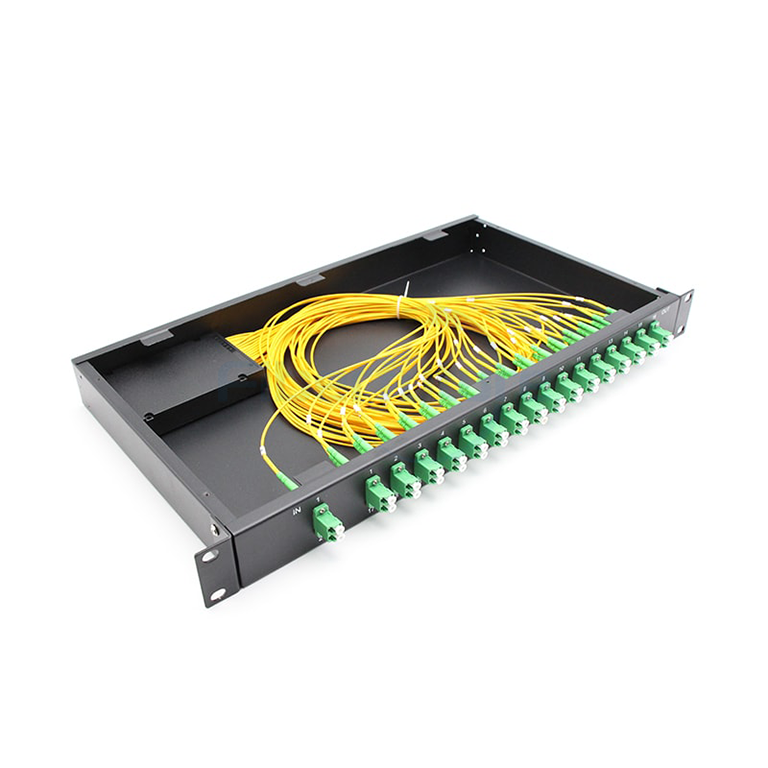

The FIBERFUTURE 19" rack mount PLC splitter, based on quartz plate integrated waveguide technology, boasts small size, wide operating wavelength, stable reliability, and excellent uniformity. Ideal for PON, ODN, and FTTX applications, it facilitates signal distribution between termination devices and central offices. Available in configurations from 1×2 to 1×64 and 2×2 to 2×64, these splitters comply with ROHS, GR-1209-CORE-2001, and GR-1221-CORE-1999 standards.
| Parameter | Unit | Specification (P Grade) | |||||
| Operation Wavelength | nm | 1260～1650 | |||||
| Channel Number | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
| Insertion Loss with Connector (Max) | dB | 4.4 | 7.9 | 11.0 | 14.1 | 17.4 | 21.0 |
| Insertion Loss without Connector (Max) | dB | 4.1 | 7.6 | 10.7 | 13.8 | 17.1 | 20.7 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Return Loss | dB | ≥45(PC); 50(UPC); 60(APC) | |||||
| Directivity | dB | ≥55 | |||||
| Parameter | Unit | Specification (P Grade) | |||||
| Operation Wavelength | nm | 1260～1650 | |||||
| Channel Number | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
| Insertion Loss with Connector (Max) | dB | 4.6 | 78.1 | 11.3 | 14.4 | 17.7 | 21.3 |
| Insertion Loss without Connector (Max) | dB | 4.1/4.3 | 7.4/7.8 | 10.5/11 | 13.8/14.1 | 17.1/17.4 | 20.3/21.0 |
| Uniformity (Max.) | dB | 0.6 | 0. 7 | 0.8 | 1.0 | 1.5 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥45(PC); 50(UPC); 60(APC) | |||||
| Directivity | dB | ≥55 | |||||
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Operating Humidity | %RH | ≤93 |
| Storage Humidity | %RH | ≤93 |
