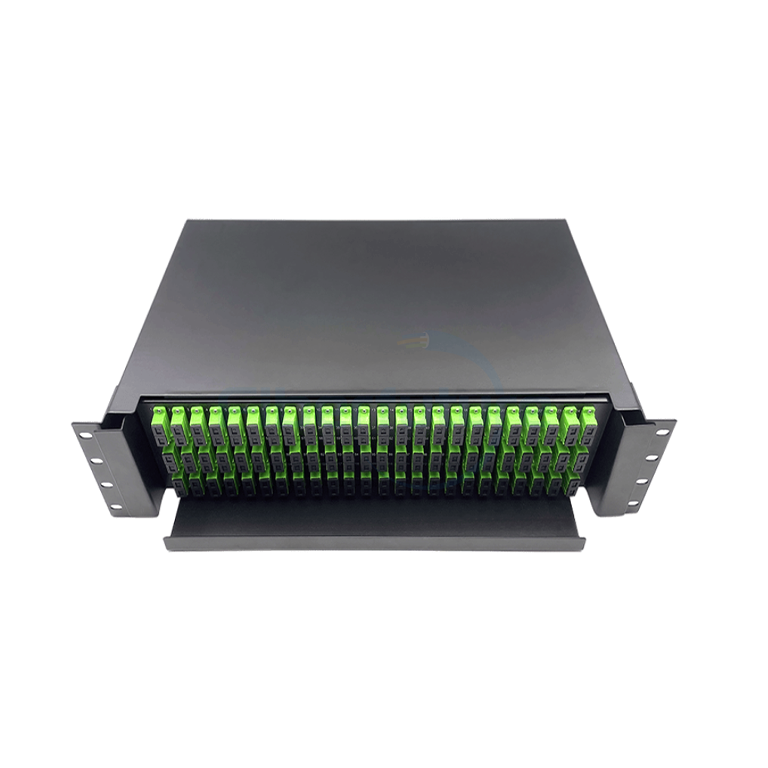

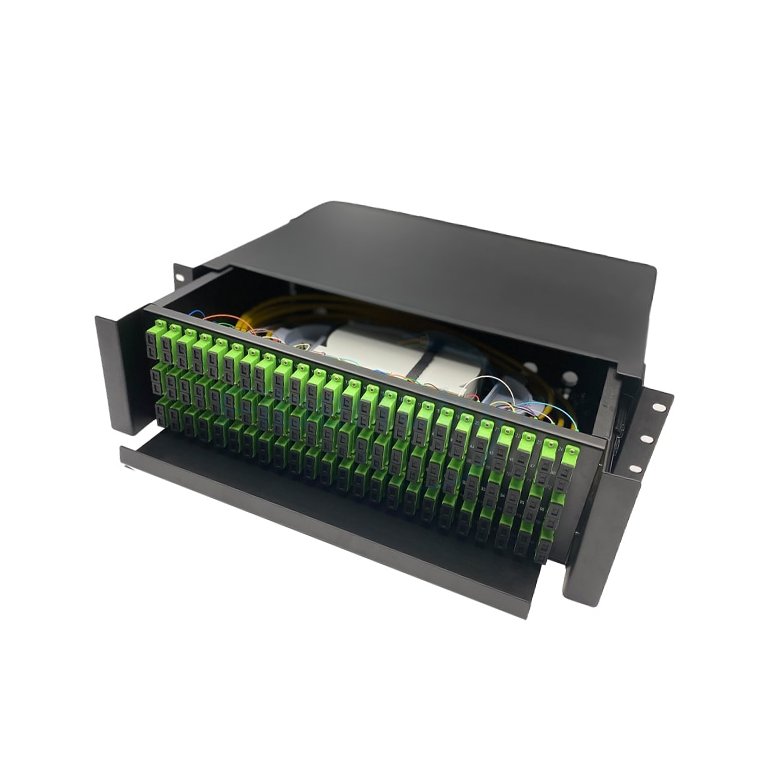

19 Inch 3RU Rack Mount Fiber Patch Panel for FTTH Network

19 Inch 3RU Rack Mount Fiber Patch Panel for FTTH Network

FIBERFUTURE fiber optic patch panel is a compact, high-quality fiber management solution for distributing and safeguarding optical fiber links in FTTH networks. Made from cold-rolled steel with static plastic spraying, it supports SC, LC, FC, ST, MPO, and E2000 adapters and can be wall-mounted indoors. Ideal for various fiber systems, it meets common distribution needs.

Send Email

Features

Crafted from cold-rolled steel with static plastic spraying, ensuring durability and compact design.
Features a hook for easy installation and removal.

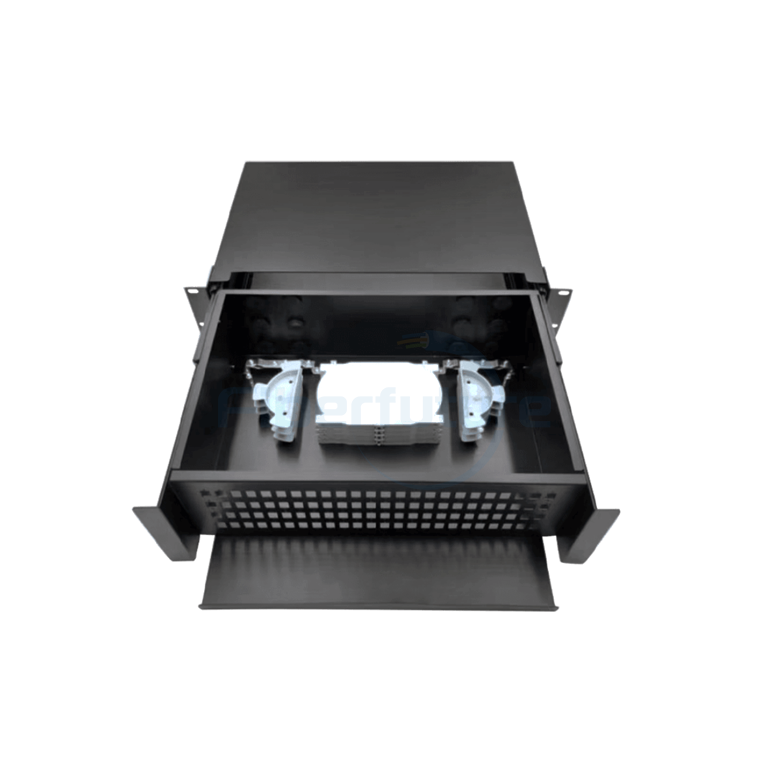

Splice trays stack neatly and pivot for flexibility, maintaining a minimum bend radius of 37.5mm for fiber loops.
Unique construction offers ample working space and a well-organized layout.
Adjustable clamps and seals accommodate various cable sizes, ensuring tight cable grip.
Indoor models provide exceptional sealing to prevent water ingress.
Compatible with SC, LC, FC, and ST adapters.
Supports up to 192 cores in a 2U patch panel.
Available in rack-mount and sliding drawer designs.

Specifications

Product Name	19‘ 3RU Slide Rail Rack mount patch panel V2
Connection Port	2 –48Ports SC/FC/ST/LC/ST/E2000/MPO
Enclosure Type	19’ Rack Mountable
Installation	Standard EIA 19″ Rack
Compliant	TIA/EIA-568-C.3
Dimensions	485350133.5mm
