FIBERFUTURE® supply 2-288 cores double Jacket ADSS Cable for self-supporting and duct applications for cable spans 400m, 600m, 800m, up to 1000m, our ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® optical fiber ADSS cable is 2, 6, 12, 24, 36, 48, Up to 288 cores.

APPLICATIONS

Fiber Count
Fiber Type
Span
NESC

Send Email

Structure Design

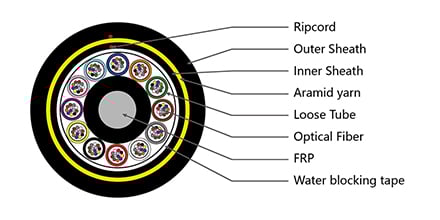

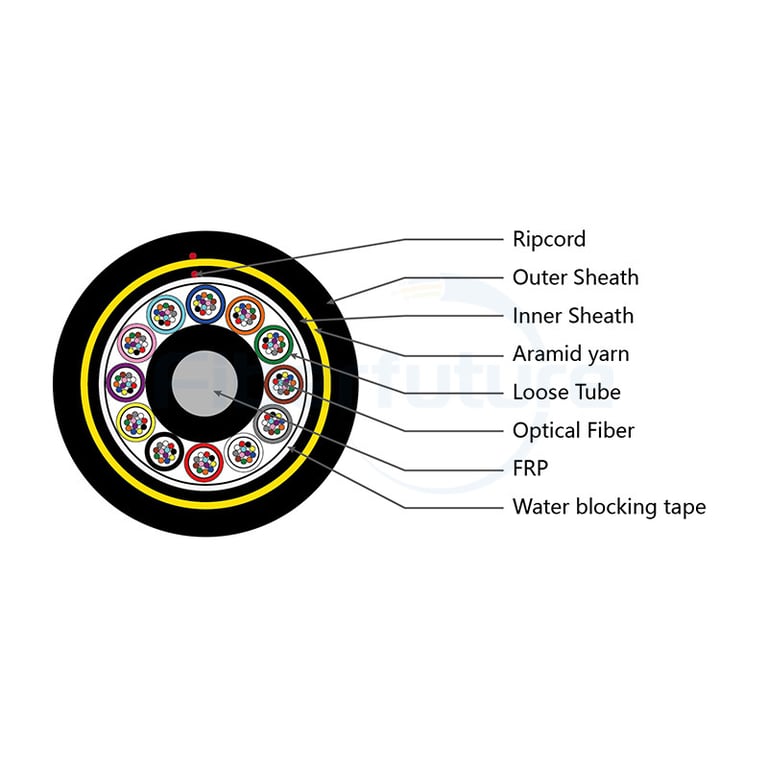

Structure Design:

144 Cores G.652.D Fibers ADSS Cable 800m span

Features and Applications:

Number of fibers from 2 to 288
Enhanced technology enables efficient, cost-effective large-scale welding
Customized design by application
Water blocking technology makes the cable core more process-friendly
Increase bandwidth and carrying capacity in high-density applications
High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs
Depending on sag and load conditions, excellent performance is suitable for spans up to 1000m

Features and Applications

Number of fibers from 2 to 288

Enhanced technology enables efficient, cost-effective large-scale welding
Customized design by application
Water blocking technology makes the cable core more process-friendly
Increase bandwidth and carrying capacity in high-density applications
High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs
Depending on sag and load conditions, excellent performance is suitable for spans up to 1000m

Standards

IEC 60793, IEC60794
IEEE1222
TIA/EIA
ITU-T

The Color of Fiber and Loose tube

01 - Blue	02 - Orange	03 - Green
04 - Brown	05 - Slate	06 - White
07 - Red	08 - Black	09 - Yellow
10 - Violet	11 - Pink	12 - Aqua

If request Black and White tracer shall be applied to identify the buffer tube

Specification

Fibers	Structure	Outside Diameter of Cable(mm)	Weight(kg/km)	KN Max. Operating Tension	KN Max. Rated Tensile Strength	Max. Anti-crushing Force Long term, Short term	Bending Radius Static / Dynamic
2-30	1+6	11.9	117	4.0	15	1000; 3000	12.5D; 25D
22-36	1+6	11.9	117	4.0	15	1000; 3000	12.5D; 25D
38-60	1+6	12.4	127	4.0	15	1000; 3000	12.5D; 25D
62-72	1+6	12.4	128	4.0	15	1000; 3000	12.5D; 25D
74-84	1+7	13.0	144	4.0	15	1000; 3000	12.5D; 25D
96-96	1+8	14.0	162	4.0	15	1000; 3000	12.5D; 25D
98-108	1+9	14.7	177	4.0	15	1000; 3000	12.5D; 25D
110-120	1+10	15.5	196	4.0	15	1000; 3000	12.5D; 25D
122-132	1+11	16.1	211	4.0	15	1000; 3000	12.5D; 25D
134-144	1+12	16.7	229	4.0	15	1000; 3000	12.5D; 25D

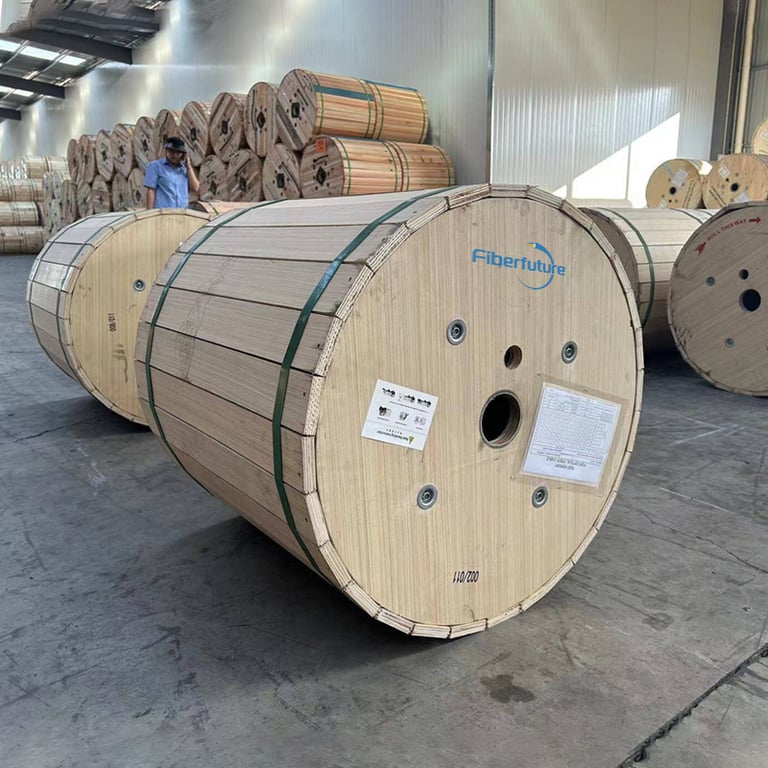

Packing and Marking

Packing

1.1 Each single length of cable shall be reeled on Wooden Drum suitable for long distance shipment.
1.2 Covered by plastic buffer sheet.
1.3 Sealed by strong wooden battens.
1.4 At least 1 m of inside end of cable will be reserved for testing.
1.5 Drum length
1.5.1 Standard drum length is 2000-4000m
1.5.2 Single length not less than 96% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;
1.5.3 Total quantity is at least the ordered quantity.

Drum Marking
2.1 Cable drum
- Manufacturer brand;
- Roll-direction arrow;
- Cable outer end position indicating arrow;
- The word “FIBER OPTICAL CABLE”;
- Origin, The word “MADE IN CHINA”;
- Caution plate indicating the correct method for loading, unloading and convey the cable;
- Other customer information such as contract no., project no., and delivery destination. (if needed)

2.2 Marking plate
- Product name;
- Cable type and size;
- Drum length;
- Gross / Net weight in kilograms;
- Drum number in meters;
- Manufacturer's name;
- Manufacturing year and month;
- Project number, contract number or purchasing order number (if needed).
