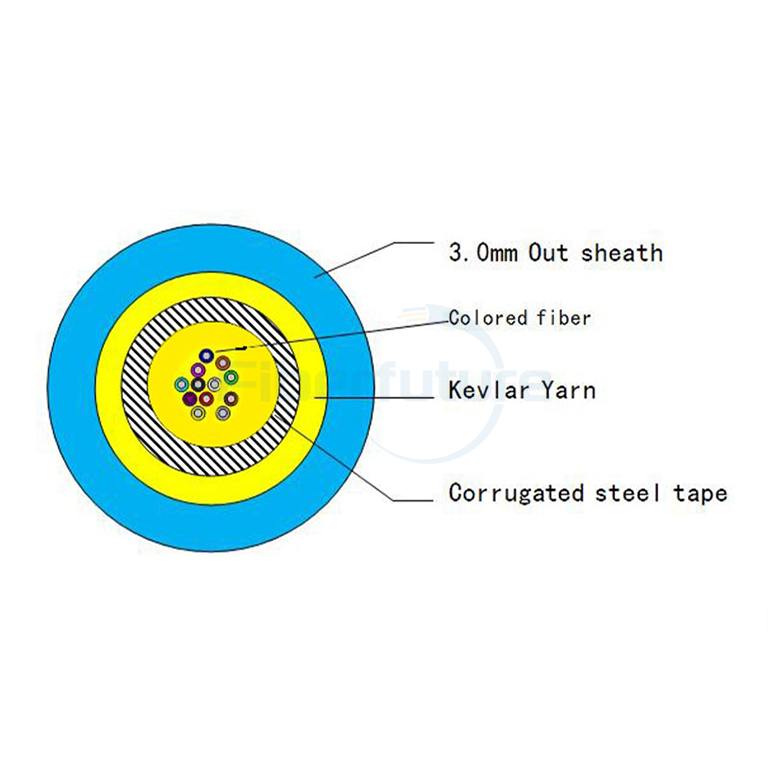

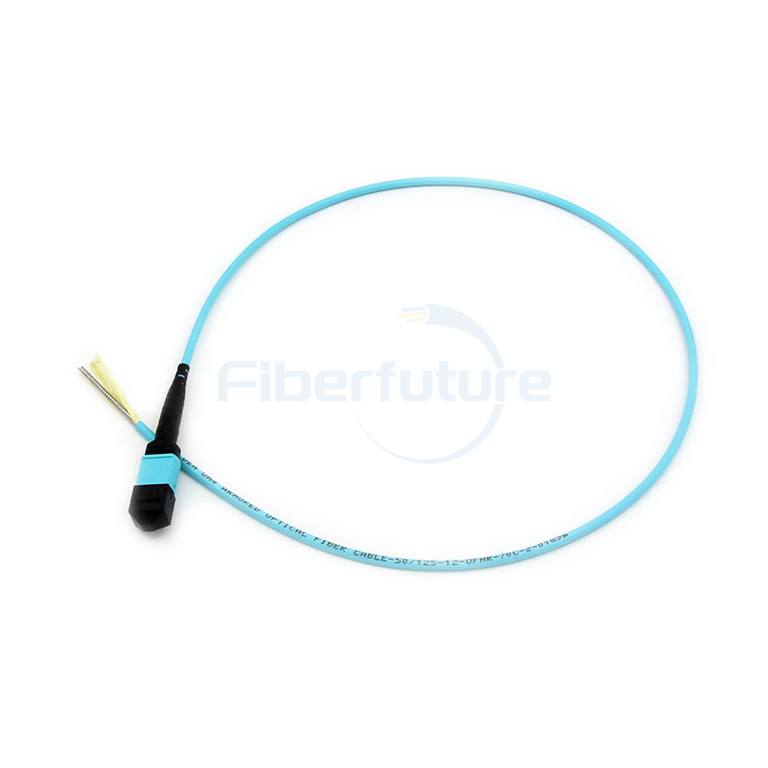

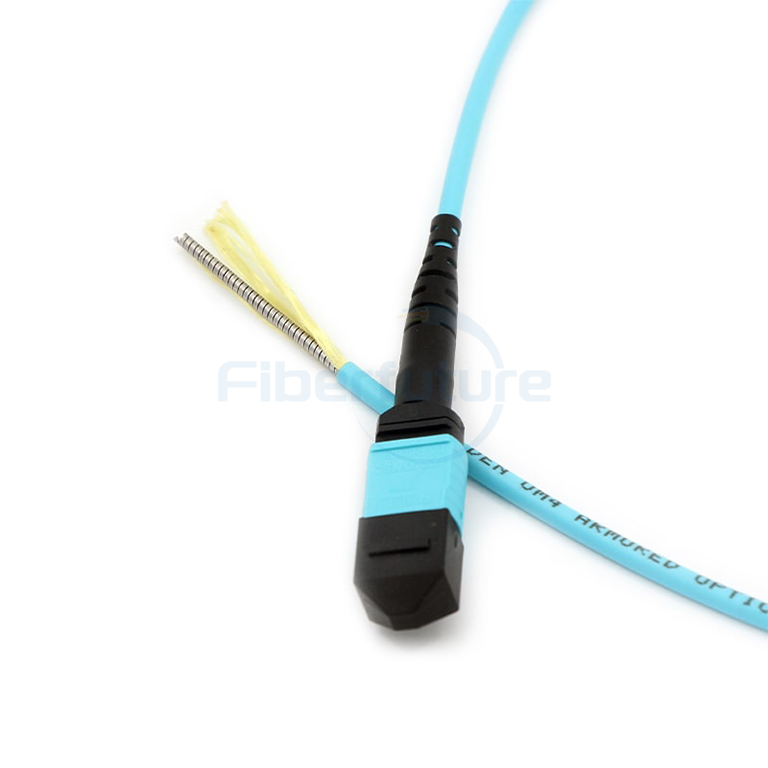

FIBERFUTURE 12F MPO/MTP Armored Trunk Cable is engineered for harsh environments, featuring a robust shell reinforced with steel and Kevlar, offering tenfold strength over standard cables and a 40% wider operating temperature range. Ideal for floor corners, this cable protects against rodent and insect damage while maintaining flexibility akin to standard patch cords. Its durable design ensures reliable performance in areas prone to dust, oil, gas, moisture, and rodent activity, making it suitable for the most challenging installations.
High-density data center applications.
Optical fiber connections to buildings.
Internal connector applications within fiber equipment.
Low Insertion Loss, High Return Loss: Ensures superior signal integrity.
MT-Based Multi-fiber Connectors: Supports 4, 8, 12, and 24 fiber terminations and assemblies.
Cost-effective Mass Termination: Offers an economical solution for large-scale fiber connections.
Optimized for SM/MM Applications: Designed for both low and standard loss requirements.
Rugged Cable Options: Available in round, oval, and bare ribbon designs for durability.
Color-Coded Housings: Helps easily identify fiber type, polish type, and connector grade.
Excellent Repeatability and Exchangeability: Ensures consistent performance across installations.
|
Fiber Count (F) |
OD (mm) |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load
(N/100mm) |
Minimum Bending Radius (MM) |
| 12 | 3.0±0.2 | Short-term: 300
Long-term: 200 |
Short-term: 3000
Long-term: 2000 |
Static: 10D
Dynamic: 20D |
