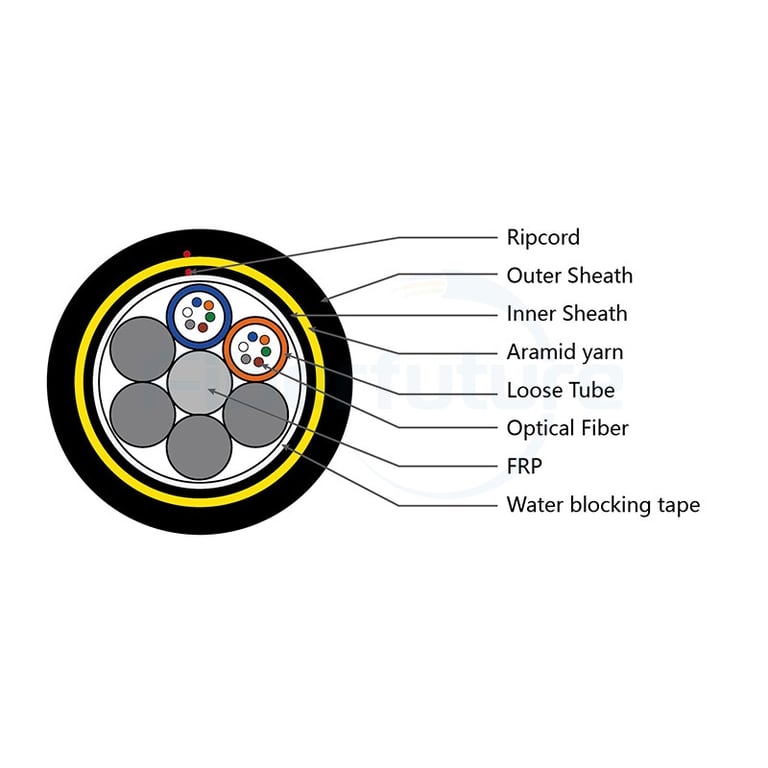

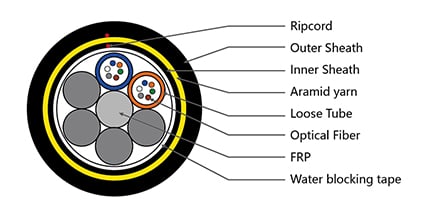

FIBERFUTURE® supply 2-288 cores double Jacket ADSS Cable for self-supporting and duct applications for cable spans 400m, 600m, 800m, up to 1000m, our ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.
We can customize the number of cores of ADSS fiber optic cables according to customer needs. The number of cores of FIBERFUTURE® optical fiber ADSS cable is 2, 6, 12, 24, 36, 48, Up to 288 cores.
| Fiber Count | |
|---|---|
| Fiber Type | |
| Span | |
| NESC |
| 01 - Blue | 02 - Orange | 03 - Green |
| 04 - Brown | 05 - Slate | 06 - White |
| 07 - Red | 08 - Black | 09 - Yellow |
| 10 - Violet | 11 - Pink | 12 - Aqua |
| Fibers | Structure | Outside Diameter of Cable(mm) | Weight(kg/km) | KN Max. Operating Tension | KN Max. Rated Tensile Strength | Max. Anti-crushing Force Long term, Short term |
Bending Radius Static / Dynamic |
|---|---|---|---|---|---|---|---|
| 2-30 | 1+6 | 11.9 | 117 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 22-36 | 1+6 | 11.9 | 117 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 38-60 | 1+6 | 12.4 | 127 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 62-72 | 1+6 | 12.4 | 128 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 74-84 | 1+7 | 13.0 | 144 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 96-96 | 1+8 | 14.0 | 162 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 98-108 | 1+9 | 14.7 | 177 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 110-120 | 1+10 | 15.5 | 196 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 122-132 | 1+11 | 16.1 | 211 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
| 134-144 | 1+12 | 16.7 | 229 | 4.0 | 15 | 1000; 3000 | 12.5D; 25D |
