What Is ODN in FTTH?

What is ODN?

The Optical Distribution Network (ODN) is a crucial part of the FTTH architecture that connects the central office (or headend) of a service provider to individual homes or buildings. It consists of a series of passive optical components and fibers that facilitate the transmission of optical signals over long distances without the need for active electronic amplification.

Components of Optical Distribution Network

1. Optical Line Terminal (OLT):
Located at the service provider's central office, the OLT is the main device that sends and receives optical signals to and from the Optical Network Units (ONUs) installed at customer premises.

2. Optical Splitter:
An essential passive component that divides the optical signal from a single fiber into multiple signals, allowing a single OLT to serve multiple ONUs. Fiber optic splitters can be deployed in a centralized or distributed manner, depending on the network design.

3. Fiber Optic Cables:
These are the physical medium through which optical signals travel. Optical fiber cables can be single-mode or multimode and are typically installed in underground conduits, aerially, or inside buildings.

4. Optical Network Unit (ONU):
Installed at the customer's premises, the ONU converts the optical signals received from the OLT into electrical signals that can be used by end-user devices such as computers, televisions, and telephones.

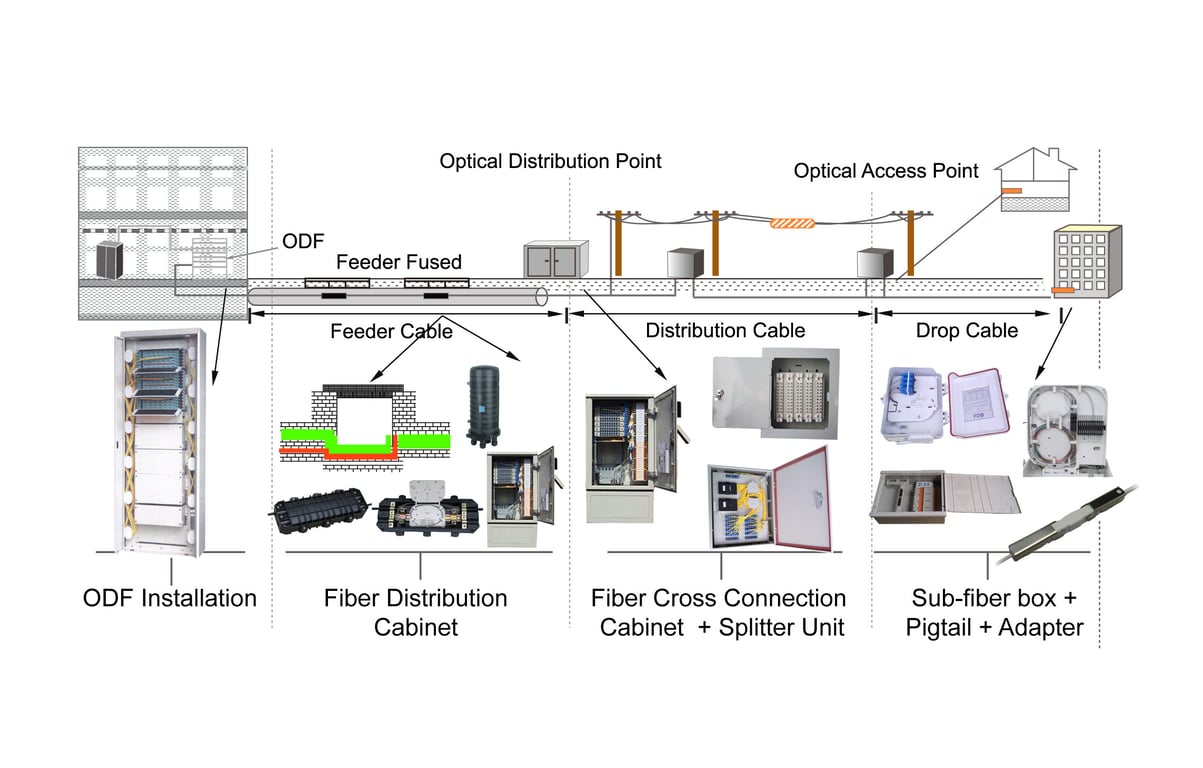

5. Distribution Points:
These are intermediate points in the ODN where fibers are spliced, terminated, or connected to other components. Distribution points can include fiber distribution hubs (FDHs), optical distribution frames (ODFs), and fiber optic patch panels.

6. Fiber Drop Cables:
Short lengths of fiber optic cable that connect the distribution point to the ONU at the customer's premises. Fiber optic drop cables are often installed using microducts or direct burial methods.

7. Connectors and Splices:
Used to connect different segments of the ODN, these components ensure that the optical signals are transmitted with minimal loss. Common FTTH connectors include SC, LC, and MPO types, while fiber optic splices can be fusion or mechanical.

Functions of ODN

• Signal Distribution: The ODN efficiently distributes the optical signal from the OLT to multiple ONUs, enabling a single fiber to serve multiple users. This is achieved through the use of optical splitters, which divide the signal into multiple paths.
• Signal Quality Maintenance: Passive components in the ODN, such as splitters and connectors, are designed to minimize signal loss and maintain the quality of the optical signals over long distances.
• Scalability: The ODN is highly scalable, allowing service providers to add more users or increase bandwidth as needed without significant changes to the existing infrastructure.
• Cost Efficiency: By using passive components and minimizing the need for active electronics, the ODN reduces the overall cost of deploying and maintaining FTTH networks.
• Reliability: The use of robust fiber optic cables and well-designed passive components ensures that the ODN is reliable and resilient, providing consistent performance even under challenging environmental conditions.

Challenges in ODN Deployment

• Installation Complexity:
  Deploying an ODN requires careful planning and skilled labor to ensure that fibers are properly installed and maintained. This includes tasks such as trenching, aerial installation, and splicing.
• Cost:
  While the ODN is cost-effective in the long run, the initial investment in fiber optic cables, passive components, and installation can be significant.
• Maintenance:
  Regular maintenance and monitoring are necessary to ensure that the ODN operates at optimal performance levels. This includes inspecting and cleaning connectors, replacing faulty components, and troubleshooting issues.
• Interference:
  External factors such as electromagnetic interference (EMI) and physical damage can affect the performance of the ODN, requiring proactive measures to mitigate these risks.

Conclusion

The Optical Distribution Network (ODN) is a vital component of FTTH infrastructure, enabling the efficient and reliable delivery of high-speed broadband services to residential and business customers. By leveraging advanced passive optical technologies, the ODN provides a scalable, cost-effective, and high-performance solution for modern telecommunications networks.
