What Is GYTA53 Fiber Optic Cable?

Outdoor GYTA53 Fiber Optic Cable with Corrugated Steel Armoured Tape, 2~432 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath.

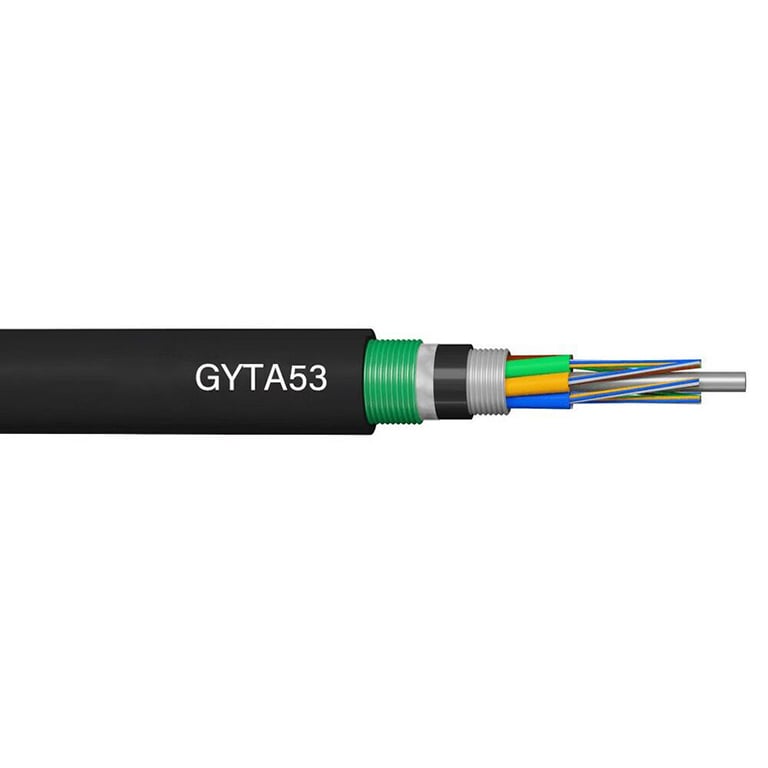

Structure of GYTA53 fiber optic cable
There are numerous features of the GYTA53 fiber optic cables and you can easily identify it in the market. However, the most identified characteristics include:
low dispersion and attenuation
properly designed with precise control for fiber excess length and distinct stranding process renders the cable excellent mechanical and environmental properties
The GYTA53 fiber optic cables are also characterized with Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.
The GYTA53 fiber optic cables has a small cable diameter, light cable weight, easily to lay

Features
Up to 432 fiber cores.
The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
Metal strength member provides excellent strain performance.

Applications
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected.e.g. in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

Standards:

GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Optical Charactristics:

Technical Parameters:

Storage/Operating Temperature : -40℃ to + 70℃
