TPU round drop cable GJFJU 1F micro ADSS 3.0mm optical fiber cable

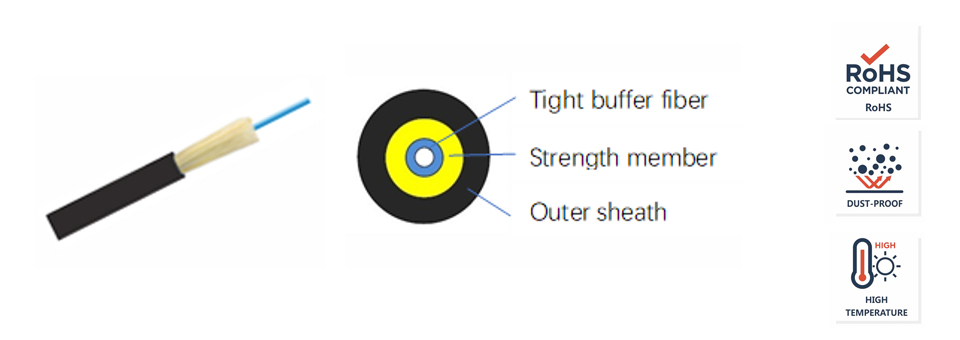

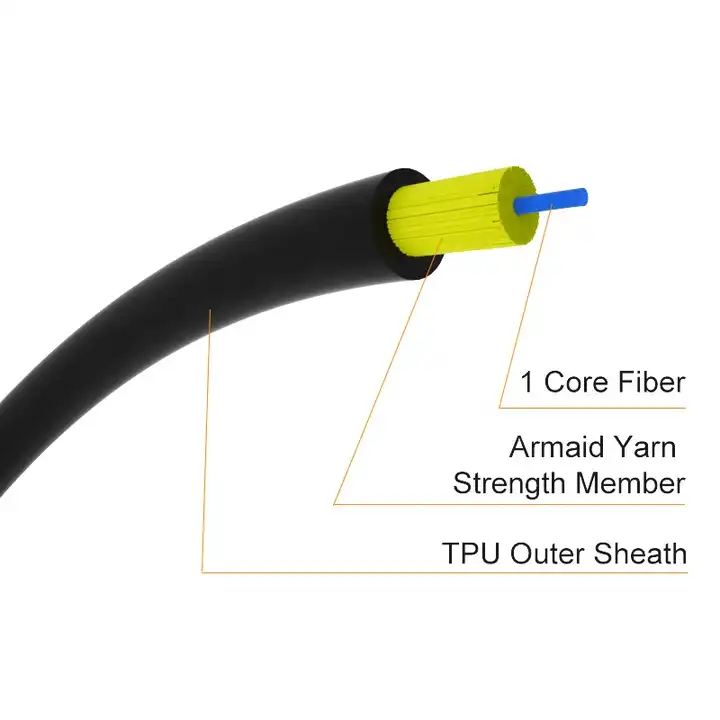

The GJFJU optical cable is constructed with ф900μm tight buffer fibers surrounded by Aramid yarns as strength member, covered with TPU or LSZH outer sheath.

Model NO. GJFJU. Fiber type. 9/125(G657A2/G657B3). Sheath color. Black or Customized. Sheath material. TPU. Cable dimension (mm). 3.0, 3.5… Tolerance±0.1.

Cable Charactristic:

Optical cable with Aramid yarns reinforcement
For customer connection
Fully dielectric cable
Last mile connection
LAN and FTTX networks
Distribution network
ODF connections
Inside house OLT connection
G.657B3 optical fiber
Flame retardant TPU sheathing
UV protection and environmental protection;

Optical Fiber Charactristics:

Fiber type		Maximum attenuation for uncabled fibers [dB/km]
Fiber type		1310 nm	1383 nm	1490 nm	1550 nm	1625 nm
G.657A1	Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15 mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657A2	Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5 mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657B3	Bend insensitive fiber fully compatible with G.652D standard, bend radius 5 mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23

Technical Parameters:

Item	Description
Tight Buffer Fiber	Fiber Count	1FO
	Fiber Type	G.657B3
	Fiber Color	Natural
	Diameter	0.9mm
	Tight Buffer Color	Blue or Customized color
	Material	LSZH
Strength Member	Material	Aramid yarn
Outer Sheath	Material	TPU
	Color	Black
	Thickness	0.7~0.8mm
	Diameter	3.0±0.1mm
Span	50~100m
Installation Sag	1%
Max. Wind Speed	50km/ hour
Tensile	800N
Strain	0.6%
Cable Weight	9.8kg/ km

Storage/Operating Temperature:－40℃～＋70℃
