Fiber optic cables are widely used for high-speed data transmission in modern networks, providing a reliable and efficient means of communication. Connecting fiber optic cables to connectors is an essential skill for technicians and anyone working with fiber optics. In this article, we will guide you through the process of connecting a fiber optic cable to a connector properly.
Fiber Optic Cable – The cable you will be connecting.
Fiber Optic Connector – The specific connector you are using, such as LC, SC, or ST.
Fiber Optic Stripper – Tool for stripping the protective layers of the cable.
Fiber Optic Cleaver – To precisely cut the fiber to a clean edge.
Fiber Optic Crimping Tool – For securing the connector to the fiber optic cable.
Fiber Optic Polishing Kit – For polishing the end of the fiber.
Microscope – For inspecting the quality of the fiber’s cut.
Epoxy or Adhesive – Some connectors require a bonding agent.

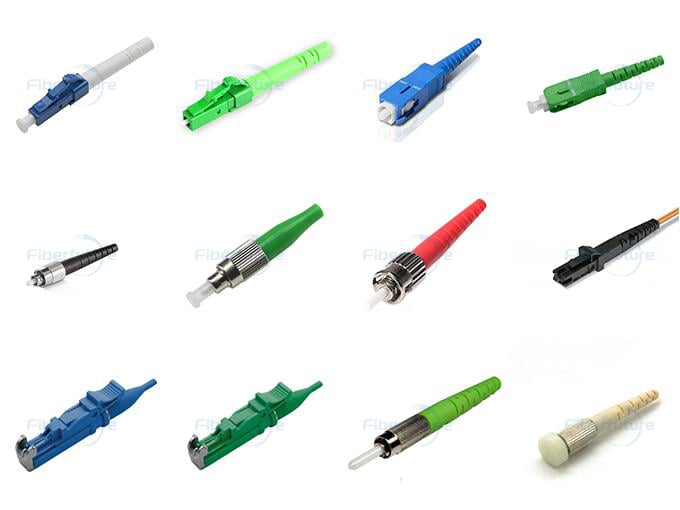

All Types of Fiber Optic Connectors
1. Prepare the Fiber Optic Cable
Strip the Cable: Use the fiber stripper to remove the outer jacket of the fiber optic cable. Typically, you will strip around 1 to 2 inches of the jacket, exposing the inner fiber core.
Remove the Buffer Coating: After stripping the outer jacket, use the stripper again to remove the buffer coating from the fiber core. Be cautious not to damage the fiber itself.
Clean the Fiber: Wipe the fiber using a lint-free wipe or alcohol pad to remove any dirt or debris.
2. Cut the Fiber to Length
Use the fiber cleaver to cut the exposed fiber end to ensure a smooth, flat, and clean surface. A precise cut is critical for minimizing signal loss when the cable is connected.
Inspect the cut with a microscope to ensure there are no imperfections.
3. Prepare the Connector
Select the appropriate connector for the type of fiber optic cable you are using. The most common types are SC connectors, LC connectors, and ST connectors.
If necessary, insert a small amount of adhesive into the connector’s ferrule (the part that holds the fiber).

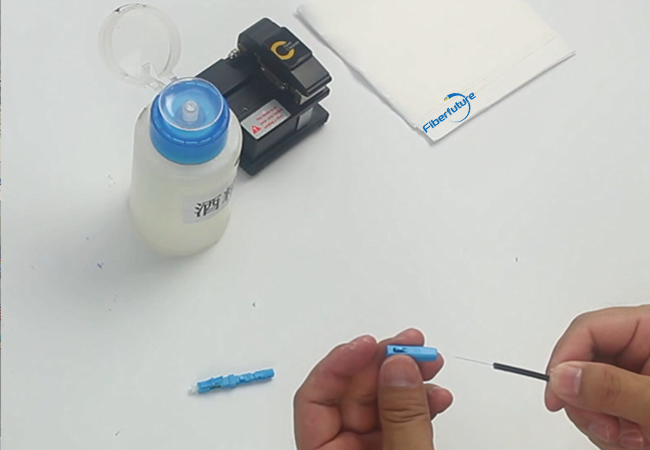

4. Insert the Optical Fiber into the Fiber Optic Fast Connector
Gently insert the prepared fiber into the connector’s ferrule. Make sure the fiber is positioned correctly and fully inserted into the connector.
Some connectors require a crimping or locking mechanism to secure the fiber in place. Use a crimping tool if necessary to fasten the connector to the cable.
5. Polish the Fiber
After the fiber is securely in place, the end of the fiber must be polished to ensure minimal signal loss. Use a polishing kit to carefully polish the fiber tip.
The polishing process ensures that the fiber end is smooth, clean, and perfectly aligned, which is vital for optimal performance.
6. Test the Connection
Once the fiber optic cable is connected to the connector, test the connection to verify it’s working correctly. You can use a fiber optic tester or optical time-domain reflectometer (OTDR) to check for signal transmission and ensure there are no faults.
You can watch the whole installation video at our YouTube channel
Conclusion:
Connecting fiber optic cables to connectors requires precision, patience, and the right tools. By carefully preparing the fiber, using the proper connectors, and ensuring a clean and smooth finish, you can create reliable fiber optic connections that offer high-speed data transmission with minimal loss. Whether you're setting up a new network or repairing an existing one, mastering the process of fiber optic termination is an essential skill for any professional working with fiber optics.
