Fiber optic attenuators are critical components in the field of optical communications and networking, serving to reduce the power level of an optical signal passing through them. This reduction in signal strength is necessary for several reasons, including preventing damage to sensitive equipment, optimizing the performance of optical systems, and ensuring that signals meet the required specifications for transmission over long distances.
An attenuator in optical fiber is a device that reduces the amplitude of a signal without significantly altering its waveform. In the context of fiber optics, these devices are used to control the intensity of light signals within an optical fiber. They are particularly important in high-power applications where too much light can cause signal distortion or even damage sensitive components such as photodetectors.
There are two main types:

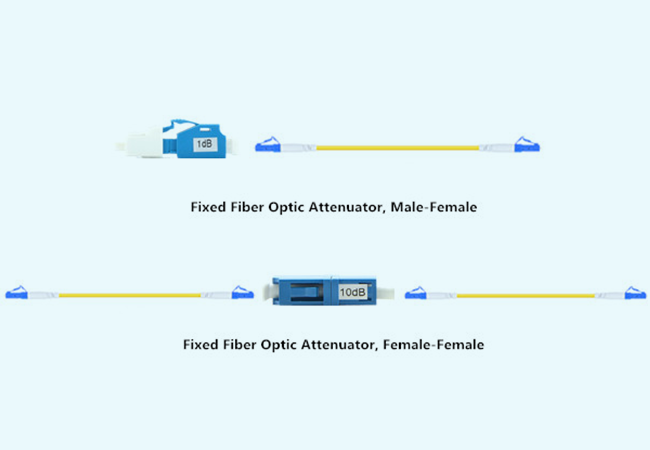

1. Fixed types: These are simple devices that provide a constant amount of signal reduction. Fixed attenuators are commonly used when a known and consistent level of attenuation is required, such as in calibration procedures or when setting up a system to operate at a specific power level.

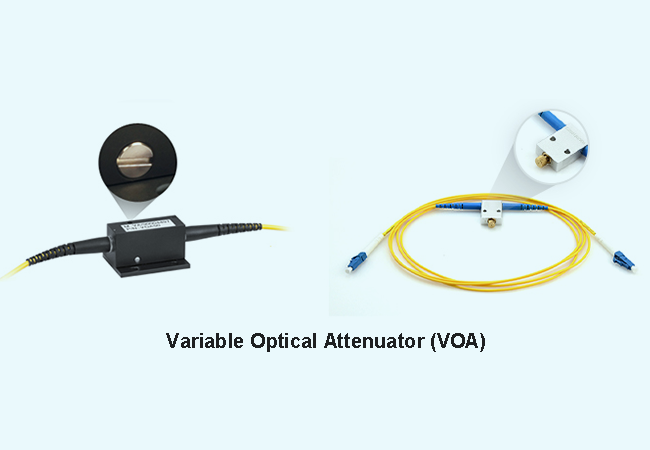

2. Variable types: Unlike fixed optical attenuators, variable fiber attenuators allow for the adjustment of the attenuation level. They are typically used in test equipment and during system setup and maintenance where precise control over the optical signal level is needed.
The operation depends on its design and type. Both fixed and variable types achieve their function by absorbing some of the optical energy passing through them, thus reducing the overall signal strength.
Absorption Mechanism: The core of the fiber is doped with materials that absorb light, thereby reducing the power of the transmitted signal. The amount of absorption can be controlled by varying the concentration of the dopants or the length of the absorbing section.
Microbending Effects: Some designs use microbending, which involves slight bending of the fiber to cause scattering losses. This method can be used to create both fixed and variable types.
Mechanical Shuttering: Variable optical attenuators may also use mechanical shutters that physically block part of the light beam, allowing only a portion of it to pass through. This method allows for the dynamic adjustment of the attenuation level.
Electro-optic Modulation: Another approach involves using electro-optic modulators where an electric field is applied to change the refractive index of the material, thereby controlling the amount of light that passes through.
Find widespread application in various fields including:
Telecommunications: Ensuring proper signal levels in long-distance communications networks.
Testing and Measurement: Calibrating equipment and measuring the performance of optical systems.
Optical Networking: Balancing the signal levels across different channels in wavelength division multiplexing (WDM) systems.
In summary, fiber optic attenuators play a crucial role in managing the power levels of optical signals, ensuring reliable and efficient data transmission while protecting the integrity of the communication infrastructure. Their primary functions include preventing damage to equipment from overly strong signals, ensuring signal quality to optimize system performance, and aligning signal levels with the power standards required for transmission. By reducing signal strength through methods such as absorbing light energy or utilizing microbending effects, they help maintain signal balance in communication networks, ensuring the reliability and efficiency of data transmission.
