Selecting the appropriate fiber optic patch cable and pigtail involves several crucial steps to ensure optimal performance and reliability in various application environments. Here is a comprehensive guide to help you make informed decisions:
The first step in selecting a fiber optic jumper is determining the type of fiber optic cable that suits your environment. Consider the following options based on the installation location:
Indoor Environments: If you are setting up the cables within a data center or for in-building network connections, standard indoor fiber optic cables are typically sufficient. These cables are designed for easy installation and maintenance in controlled indoor environments.
Outdoor Environments: For areas such as hallways or outdoor spaces like residential communities, it is recommended to choose armored/anti-rodent fiber optic cables. This type of cable is reinforced with a steel/aluminum stripe to provide added strength and protection, especially in areas where rodent damage is a concern.
FTTH (Fiber to the Home): For FTTH installations in environments such as indoor vertical shafts, conduits, or short-distance aerial routes, bow-type drop cable is a suitable choice. These cables offer a good balance of flexibility and durability for residential and business broadband connections.
The next step is to select the appropriate fiber type based on the optical sources of your active devices and the transmission environment. The key factors to consider include the transmission wavelength and data rate:
Single-Mode Fiber (SMF): If you are working with transmission wavelengths in the 1310/1490/1550nm range, such as in long-distance or high-bandwidth applications, opt for Single-Mode 9/125um Fiber. This fiber type is ideal for high-speed, long-range transmissions.
Multi-Mode Fiber (MMF): For shorter distances and lower transmission speeds, such as 1 Gbps (Gigabit) connections, OM1 (62.5/125um) or OM2 (50/125um) multi-mode fiber is commonly used, especially for wavelengths in the 850nm range.
For 10 Gbps (10-Gigabit) speeds over short distances, choose fibers like OM3-150, OM3-30, OM4-550, or OM5-550, depending on the required transmission distance.

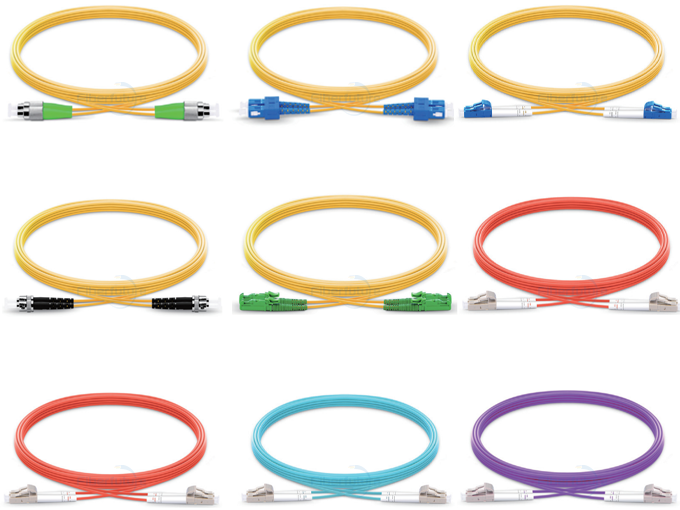

The connector type is another critical consideration when selecting fiber optic patch cables. Choose connectors based on the port type of the devices you are connecting:
For SC ports on transceivers, use SC-type fiber optic patch cords.
For SFP (Small Form-factor Pluggable) module ports, use LC-type fiber optic patch cables.
If your installation requires outdoor or ruggedized environments, ensure that the connectors offer adequate protection against the elements. Waterproof connectors like ODC, ODVA, PDLC, J599, and Fullaxs are suitable for outdoor use, offering better durability and weather resistance.
Estimate the required length of the patch cord based on your actual usage scenario. It's crucial to have an accurate assessment to avoid excessive bending, slack, or insufficient reach, ensuring efficient and tidy cable management.
Finally, packaging is an important factor for storage and handling. Depending on your needs, you can customize packaging details such as:
Cable Printing: Specify any required printing on the cables, such as brand names or technical specifications.
Labels: Ensure proper labeling for identification and organization.
Packaging Size and Material: Choose appropriate packaging bags, cartons, and materials that will safeguard the cables during shipping and handling.
In conclusion, the process of selecting fiber optic pigtails and fiber patch cords involves careful consideration of cable and fiber types, connector compatibility, length estimation, and packaging specifications. By adhering to this guide, you can ensure that your fiber optic infrastructure meets the performance requirements and environmental conditions of your specific application, ultimately contributing to a robust and efficient network setup.
