Buried optical cable price list GYTA53-4B1

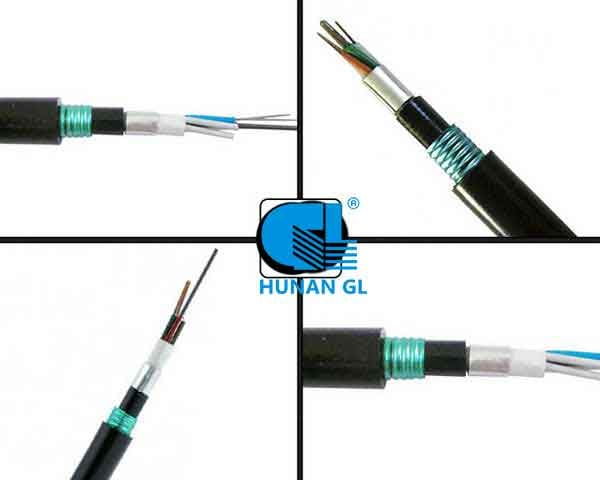

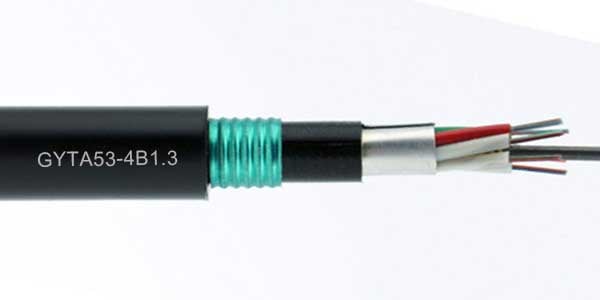

GYTA53 cable is the steel tape armored outdoor fiber optic cable used for direct buried. single mode GYTA53 fiber optic cable and multimode GYTA53 fiber optic cables; fiber counts from 2 to 432.

Applications
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable is to be expected.e.g. in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

How deep is the underground optical cable generally buried? It needs to be determined according to the soil quality, etc. The depth of the cable trench must meet the following standards:

A: Ordinary soil (hard soil), passing through suburbs, villages and towns, ditches, canals, ponds and crossing railways (from the road base) ≥ 1.2 meters;

B. Gravel soil and soft rock ≥ 1.0 meters;

C. Solid rocks, quicksand, urban sidewalks, and highway shoulders ≥ 0.8 meters;

D. For highway side ditches, the stone quality (hard rock, soft stone) ≥ 0.4 meters below the design depth of the side ditch, and other soil quality ≥ 0.8 meters below the design depth of the side ditch;

Whats is the directly buried optical cable price list GYTA53-4B1?

The specific price needs to be quoted based on the number of cores, technical requirements, delivery address, and demand quantity. GL Technology is an indoor and outdoor optical cable manufacturer, factory direct sales, support 4 ~144 cores are customized, please call for consultation.
