Aerial Cable ADSS-100m-nB1.3

All Dielectric Self Supporting (ADSS) cable is a kind of combined optical cable made by winding the optical fiber bundle on the central strength member, after insulation, waterproof, reinforcement, sheath, and other protective measures. ADSS optic cable is mainly installed on the existing 220kV or lower power line. Layer or central tube design. Ar amid yarn is used as a strength component to enhance tensile and strain properties. The outer sheath can be divided into PE and tracking resistance PE to correspond to space potentials lower than and greater than 12kV. Hunan GL' ADSS fiber cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

1. General

1.1 Scope

This Specification covers the design requirements and performance standard for the supply of optical fibre cable in the industry. GL ensures a stable quality control system for our cable products through several programs including ISO 9001, ISO 14001 and OHS.

Cable type Application： ADSS- 100m-nB1.3 Self-supporting aerial installation

“100m” represent the span.

“n” represents the fiber counts of the cable.

“B1.3” represents the G.652D type fiber.

1.2 Reference

The cable offered by GL are designed, manufactured and tested according to the standards as

follows:

ITU-T G.652 Characteristics of a single-mode optical fibre

IEC 60794-1-1 Optical fibre cables-part 1-1: Generic specification-General

IEC 60794-1-21 Optical fiber cables- part1-2-Generic specification-Basic optical cable test

procedure-Mechanical test methods

IEC 60794-1-22 Optical fiber cables- part1-2-Generic specification-Basic optical cable test

procedure-Environmental test methods

IEC 60794-3 Optical fibre cables-part 3: Sectional specification-Outdoor cables

IEC 60794-4-20 Aerial optical cables along electrical power lines – Family

specification for ADSS (All Dielectric Self Supported) optical cables

1.3 Life Time

Optical fibre cables supplied in compliance with this specifications is capable to withstand the

typical service condition for a period of twenty-five (25) years without detriment to the opera

tion characteristics of the cable.

1.4 Application

Max. pole distance: 100m

Operation temperature: -40 ºC～+70 ºC

Storage temperature: -40 ºC～+70 ºC

Static bending radius: 10 times the cable diameter

Dynamic bending radius: 20 times the cable diameter

2. Optical Fiber

Optical Fibres supplied in this specification meet the requirements of ITU-T G.652.D

Parameter Specification

Item		Unit	Specification
Item		Unit	G.652D
Mode ﬁeld diameter	1310nm	μm	9.2 ± 0.4
Mode ﬁeld diameter	1550nm		10.4 ± 0.8
Cladding diameter			125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	242 ± 7
Coating/cladding concentricity error		μm	≤12
Cable cut-oﬀ wavelength		nm	≤1260
Attenuation Coeﬃcient	1310nm	dB/km	≤0.36
Attenuation Coeﬃcient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

ITU-T G.652 (Other parameters meet standard ITU-T G.652D)

3. Optical Cable

3.1 Technical Characteristics

The unique second coating and stranding technology provide the fibres with enough space and bending endurance, which ensure good optical property of the fibres in the cable

Accurate process control ensures good mechanical and temperature performance High quality raw material guarantees the long service life of cable

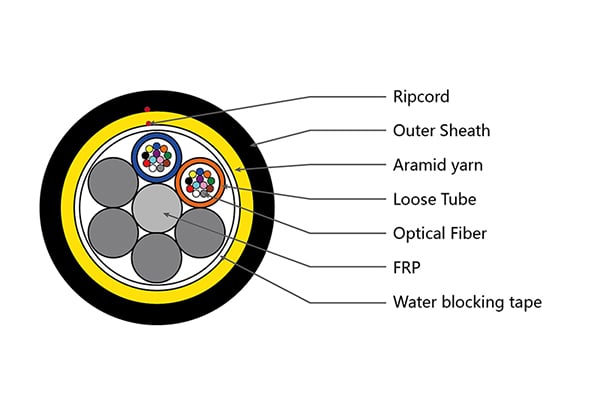

3.2 Cross Section of Cable

aerial-cable-adss-100m-nb13

ADSS-SS-100m-24B1.3

Structure of other fibre counts refer to 3.4

Schematic for reference only

3.3 Fibre and Loose Tube Identification

The color code of fibres and loose tube will be identification in accordance with the following color sequence, other sequence also is available.

Ripcord	Number	2
	Color	Red
Cable diameter(mm) Aprox		9.1	9.4	11.3	14.4
Cable weight (KG/KM) Approx		65	70	100	160

3.5 Dimensions and Descriptions

The standard optical cable structure is shown in the following table, other structure and fibre count are also available according to customer requirements.

Item	Contents	Value
		6/12/24	48	96	144
Structure	Type	1+6	1+5	1+8	1+12
PBT tube	Max Fiber Counts/tube	6	12	12	12
	Outer diameter (mm)	1.9	2.2	2.2	2.2
Central Strength member	Materia	FRP
	Diameter(mm)	2	1.8	2.8	3.5
	PE Layer diameter(mm)	--	--	3.7	6.8
Water Blocking	Materia	Water Blocking yarn & tape
Peripheral strength member	Materia	Aramid yarn
Sheath	Materia	HDPE
	Color	Black
	Thickness(mm)	Nominal:1.5

3.5 Main Mechanical and EnvironmentalPerformance Main mechanical performance

(Item)		(Parameters)
Tensile performance	Core	RTS (N)	MAT (N)	EDS (N)
	4	5800	2600	1400
	6	5800	2600	1400
	8	5800	2600	1400
	12	5800	2600	1400
	24	5800	2600	1400
	36	5800	2600	1400
	48	6400	2800	1500
	72	6400	2800	1500
	96	7200	3200	1700
Crush	Short term	1000N/100mm

Environmental and installation condition

Max. wind speed Max. ice thickness Initial Installation sag Temperature

24.7m/s 0 1.0% -40 ºC～+70 ºC

4. Mechanical, Physical and Environmental Test Characteristics

The mechanical and environmental performance of the cable are in accordance with the following table.

Items

Test Method

Requirements

Tension

IEC 60794-1-21-E1

Load:According to 3.5 Sample length: Not less than 50m.

Duration time: 1min.

Additional attenuation: ≤ 0.05dB a�er test No damage to outer jacket and inner elements

Crush

IEC 60794-1-21-E3A

Load: According to 3.5 Duration of load: 1min

Additional attenuation: ≤ 0.05dB a�er test

No damage to outer jacket and inner elements

5. Packaging and Drum

5.1 Cable Sheath Marking

Unless otherwise specified, the cable sheath marking shall be as follows:

Contents: GL Fiber, the year of manufacture, the type of cable, cable number, length marking Outer sheath marking legend can be changed according to user’s requests.

5.2 Reel Length

Standard reel length: 2/3 /4 km/reel, other length is also available.

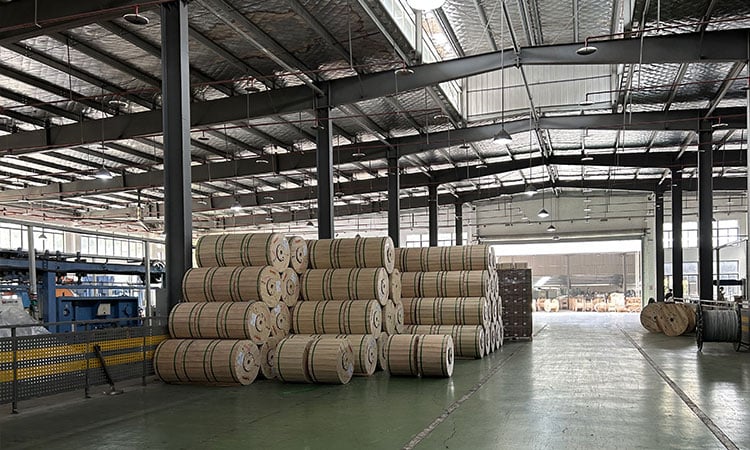

5.3 Cable Drum

The cables are packed in fumigated wooden drums.

5.4 Cable Packing

Both ends of the cable will be sealed with suitable plastic caps to prevent the entry of moisture during shipping, handling and storage.The inner end is available for testing.
