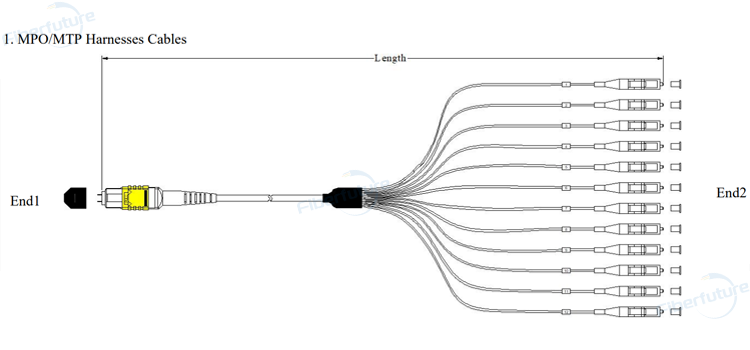

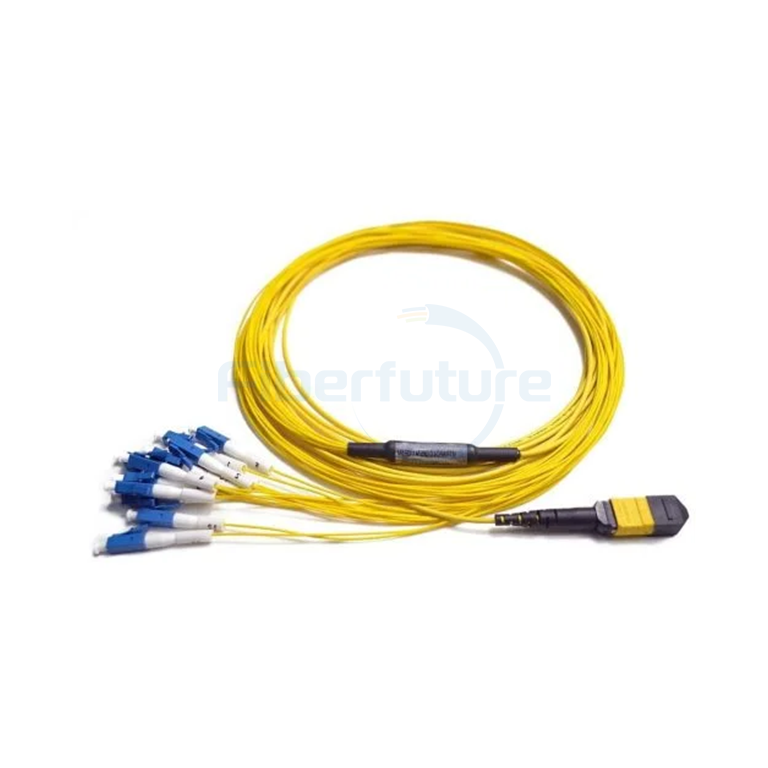

FIBERFUTURE SM OS2 MPO/MTP to LC harness cable 12 core is a high-performance single-mode fiber optic patch cord designed for high-density data center environments. It uses high-quality OS2 single-mode optical fiber to ensure excellent data transmission performance and low attenuation characteristics. The 12-core MPO/MTP connector can be directly inserted into the modular patch panel, while the other end branches into 12 LC connectors for easy connection with various network devices, supporting high-speed transmission such as 10G, 40G and even 100Gbps. The compact design saves space and is suitable for complex wiring scenarios.
1. Data Communication Networks: Ideal for enhancing connectivity and data throughput in enterprise, campus, and cloud-based networks, facilitating seamless information exchange between servers, switches, and other network components.
2. Optical Access Systems: Perfectly suited for optical access networks, bridging the gap between central offices and customer premises with reliable, high-speed data transmission capabilities.
3. Storage Area Networks (SANs): Enables robust storage connectivity in Fiber Channel environments, ensuring rapid access to critical data storage resources in data centers and server rooms.
4. High-Density Architectures: Designed to optimize space and efficiency in densely populated rack environments, making it suitable for applications requiring numerous interconnects in limited spaces, such as large-scale data centers and co-location facilities.
Factory-Verified Performance: Every cable is meticulously pre-terminated and tested at the manufacturing stage to guarantee optimal transmission quality and reliability.
Swift Deployment: Offers quick setup and networking capabilities, significantly cutting down on installation duration and streamlining system integration processes.
Advanced Network Compatibility: Engineered to support high-bandwidth demands of modern networks, including 40G and 100G applications, ensuring future-proof connectivity solutions.
Versatile Jacket Options: Available in Low Smoke Zero Halogen (LSZH), Optical Fiber, Non-Riser (OFNR), and Optical Fiber, Nonconductive, Riser (OFNP) jacket materials to suit various environmental requirements and safety standards.
Flexible Core Capacities: Supports a range of core configurations from 12 to 144 fibers, with custom options available, catering to diverse network density needs and specific project specifications.
| Item | Parameter | Reference | |||
| Single mode | Multimode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB | IEC61300-3-34 |
| Return loss | ≥50dB (PC) ≥60dB (APC) | ≥55dB (PC) ≥65dB (APC) | ≥30dB (PC) | ≥30dB(PC) | IEC61300-3-6 |
| Item | Parameter | Reference | |
| Single mode | Multimode | ||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | Typical value≤0.15dB; Maximum≤0.30 | IEC 61300-3-34 |
| Return loss | ≥ 60dB (APC) | ≥30dB (UPC) | IEC 61300-3-6 |
| ≥ 50dB (UPC) | |||
| Fiber Count | OD (mm) | Nominal Weight (kg/km) | Max.Tensile Strength (N) | Max.Crush Resistance (N/100mm) | Min.Bending Radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| 12 | 3.0±0.15 | 7 | 180 | 90 | 500 | 150 | 20D | 10D |
