SM LC APC Fiber Connector Support ODM

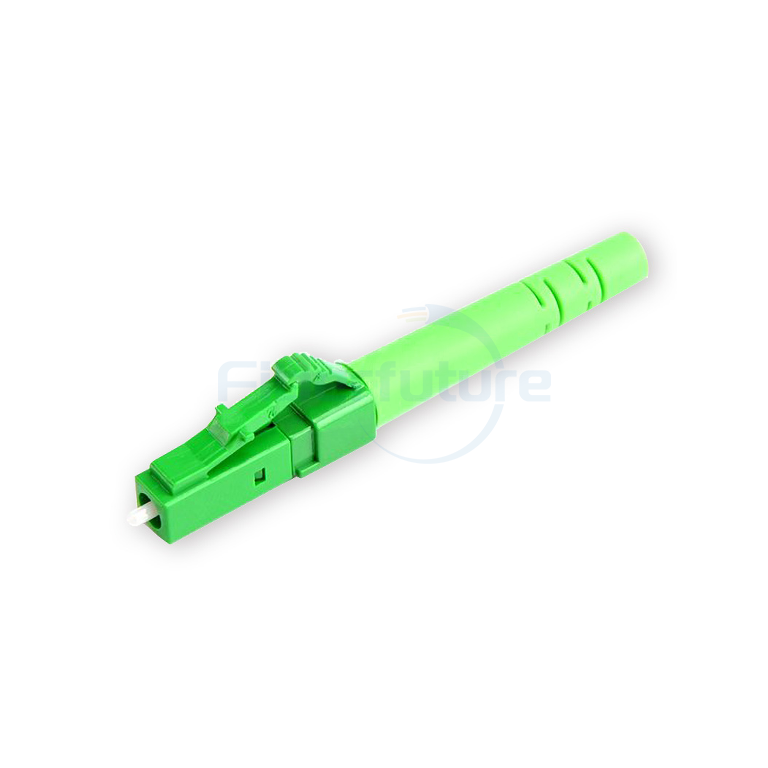

FIBERFUTURE LC/APC SM connector is a miniaturized single-mode fiber optic connector that uses angle polishing technology (APC) to reduce reflection and is suitable for high-density cabling. Its compact design saves space and ensures stable, low-loss data transmission in data centers, local area networks, and telecommunication networks.

Send Email

Applications

Engineering of optical fiber-based communication infrastructures.
Data transmission networks utilizing fiber optic technology.
Implementation of fiber-optic systems for cable television services.
Assessment and trials involving additional optical technologies.

Features

A wide variety of styles with comprehensive connectivity options.
Minimal insertion loss and negligible additional loss for optimal signal integrity.
Significant levels of attenuation for effective signal management.
High return loss while maintaining a compact size and lightweight construction.
Exceptional stability and reliability under various operational conditions.
Stringent mechanical performance standards, compliant with IEC 874-20 specifications.

Specifications

Applicable connector type	LC/APC
Optical fiber type	SM
Test the wavelength	1310nm~1550nm
Insertion loss	Typical value≤0.15, maximum≤0.30
Return Loss	≥60dB
Insert core diameter	∮1.25mm
Insert core parameter	Aperture: 125.5+1/-0μm, Concentricity: ≤1.0μm
Durability	1000 times plug
Suitable for optical cable diameter	∮2.0mm, ∮3.0mm
Working temperature	-20℃to+70℃
Storage temperature	-40℃to+85℃
