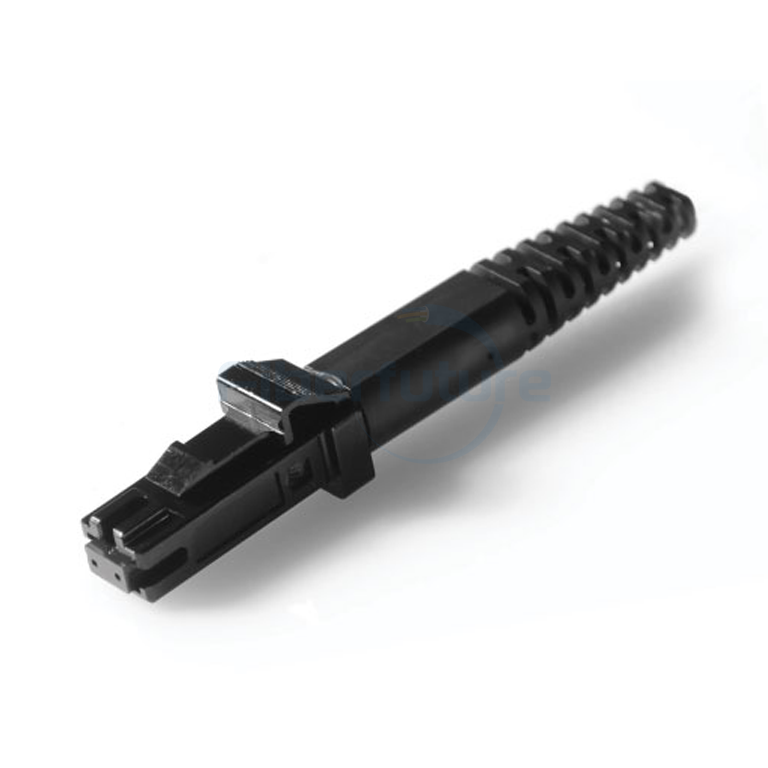

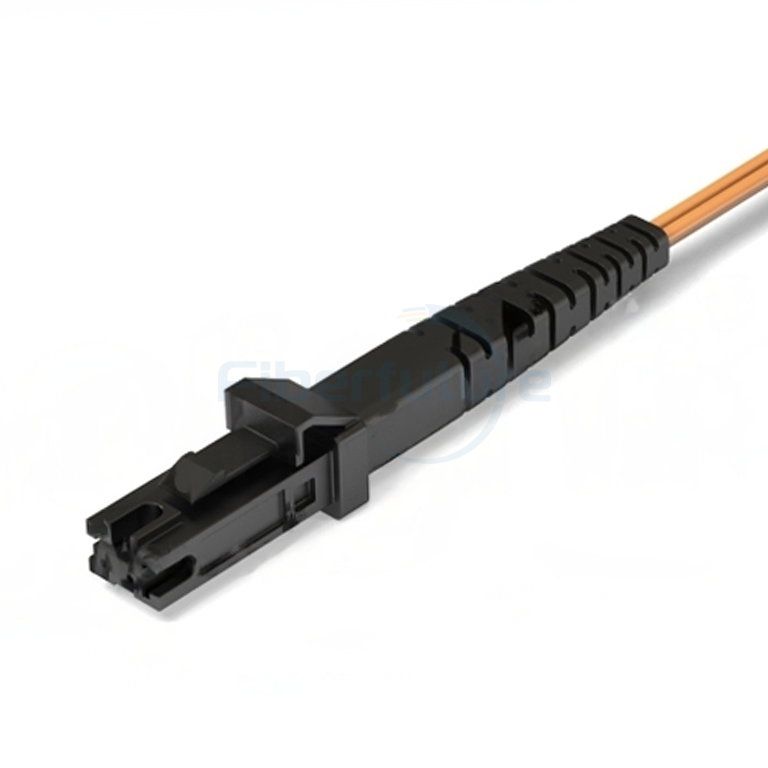

SM & MM MTRJ Fiber Optic Connector for CATV FTTH FTTB FTTP

FIBERFUTURE MTRJ fiber optic connector, dual-core design, compact plastic housing, provides convenient modular plug-in and pull-out. Suitable for local area networks and data centers, ensuring low-loss signal transmission. Its SC-compatible interface simplifies installation and improves network efficiency and reliability.

Send Email

Applications

Deployment in Gigabit Ethernet and Local Area Network (LAN) environments.
Facilitating parallel optical connectivity between PC cards and patch panels.
Interconnection in telecommunications networks for optical/electrical (O/E) module integration.
Provisioning optical switch interframe links for enhanced network flexibility.
Supporting Asynchronous Transfer Mode (ATM) networks.
Implementation in Fiber Optic Cable Television (CATV), Fiber-to-the-Home (FTTH), Fiber-to-the-Building (FTTB), and Fiber-to-the-Premises (FTTP) deployments.

Features

Precision-engineered MT ferrule for accurate signal transmission.
Duplex ferrule design for dual-fiber applications.
Exceptionally low insertion loss and superior return loss for optimal performance.
Free-floating ceramic ferrule ensures reliable and repeatable connectivity.
UL-certified plastic housing and protective boots for durability.
Color-coded boots for easy identification.
High-precision guide pins for precise fiber alignment.

Specifications

Applicable connector type	MT-RJ
Optical fiber type	SM
Test the wavelength	1310nm~1550nm
Insertion loss	Typical value≤0.15, maximum≤0.50
Return Loss	≥35dB
Repeatability	≤0.10dB
Interchangeability	≤0.10dB
Durability	500 times plug
Suitable for optical cable diameter	∮2.0mm
Working temperature	-20℃to+70℃
Storage temperature	-40℃to+85℃
