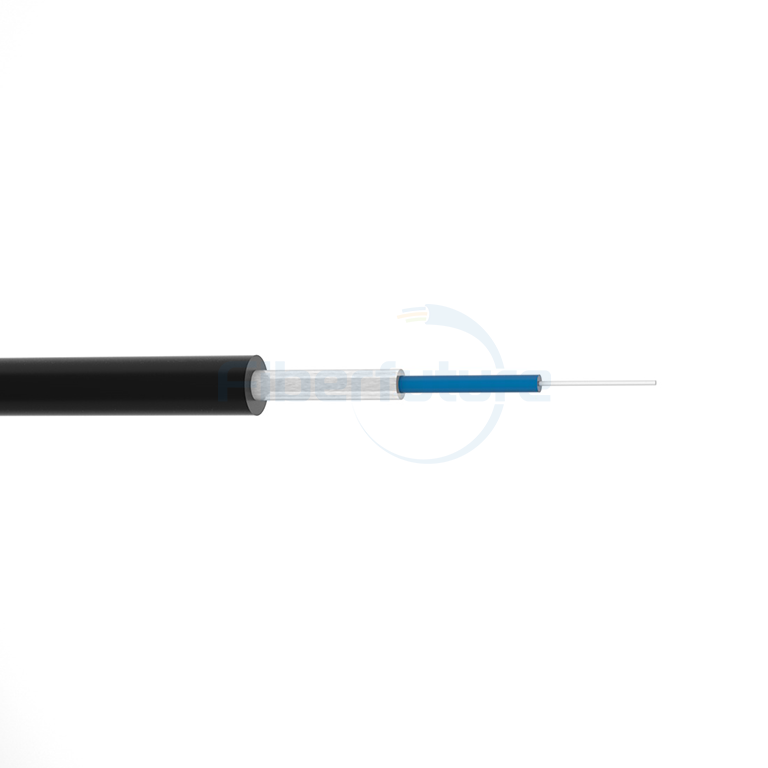

Self Support Aerial/Duct Single Jacket Round Drop Cable OEM

FIBERFUTURE round drop cable is designed for aerial or duct installations, featuring a single jacket for durability and weather resistance. Ideal for direct connection to premises, it offers reliable performance and can be customized for OEM requirements.

APPLICATIONS

Fiber Count
Fiber Type

Single Jacket Construction: Features a single, durable outer jacket for protection against environmental elements.
Weather Resistance: Designed to withstand exposure to UV radiation, water, and extreme temperatures.
Mechanical Durability: Resilient to mechanical stresses such as tension, compression, and bending.
Ease of Installation: Flexible and lightweight for quick and easy handling.
Optical Performance: Maintains high optical performance over long distances.
Splice and Splitting Capabilities: Designed for efficient splicing and splitting into multiple drops.
Customizability: Can be customized to meet specific customer requirements, including length, fiber type, and jacket color.
Compliance and Standards: Meets industry standards for quality and safety, ensuring reliable performance.

Operating :-20℃ to 60℃
Storage :-20℃ to 60℃

Optical Characteristics

Fiber Type		Maximum Attenuation for Uncabled Fibers [dB/km]
Fiber Type		1310 nm	1383 nm	1490 nm	1550 nm	1625 nm
G.657A1	Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657A2	Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23
G.657B3	Bend insensitive fiber fully compatible with G.652D standard, bend radius 5mm	≤0.35	≤0.35	≤0.24	≤0.20	≤0.23

Standard length: 1000m; Other length available
