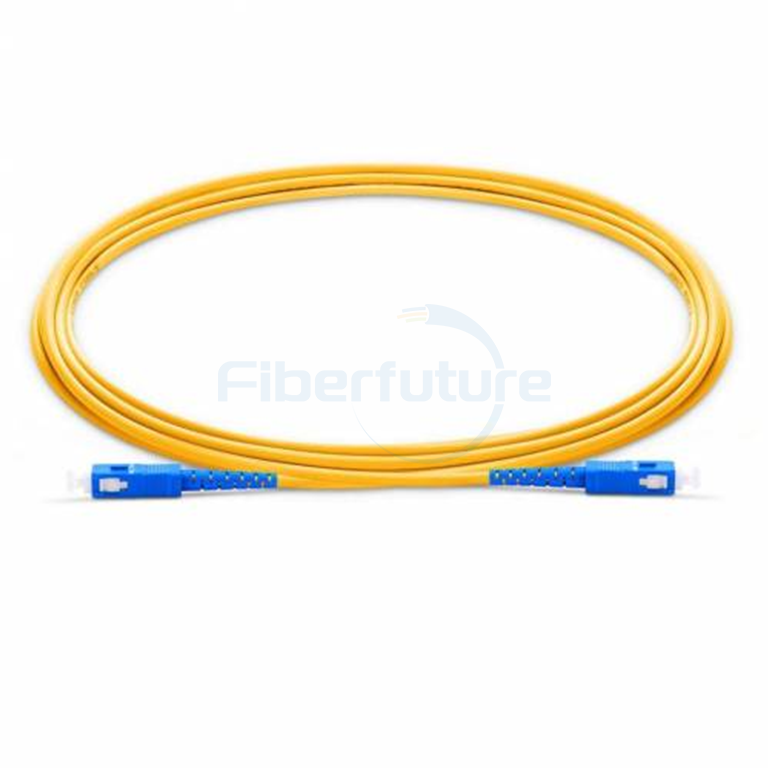

SC/UPC-SC/UPC Single Mode Fiber Patch Cables Simplex OS2

FIBERFUTURE SC/UPC-SC/UPC single-mode OS2 fiber optic patch cords feature easy-to-use SC connectors and micro-convex surface polishing (UPC) to ensure low reflection and high stability, making them suitable for long-distance, high-bandwidth telecommunications and data center applications.

Send Email

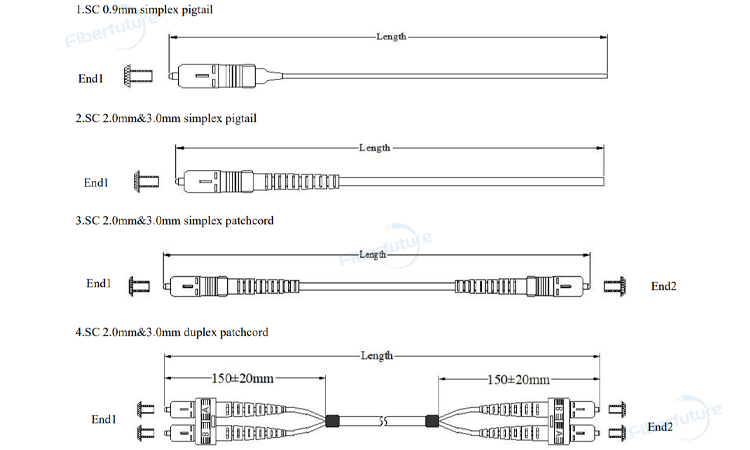

Dimensional Diagram

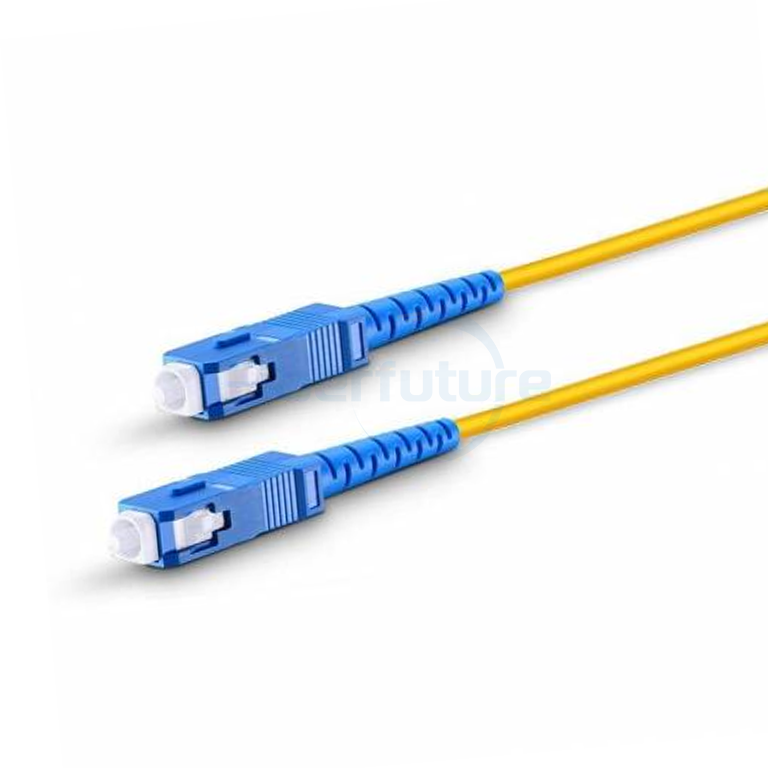

SC/UPC-SC/UPC Single Mode Fiber Patch Cables Simplex OS2

Applications

Optical fiber systems engineering.
Fiber optic data networks.
Fiber CATV system engineering.
Optical technology testing.

Characteristics

A rich assortment of designs with a full suite of connection interfaces.
Ensures minimal signal degradation with low insertion and additional loss.
Offers superior attenuation for reduced crosstalk and interference.
Boasts high back reflection loss, with a compact and lightweight profile.
Exceeds IEC and Telcordia benchmarks for end-face precision and quality.
Equipped with LSZH, OFNP, and OFNR rated cable protection for safety.
Adheres to IEC 61754-4 for exceptional mechanical resilience.
Complies with RoHS and REACH directives for environmentally sound materials.

Jumper Tolerance Requirement

Overall length (L) (M)	Length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

Optical Characteristics

Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC)	≥30dB (UPC)	IEC 61300-3-6
	≥ 50dB (UPC)
